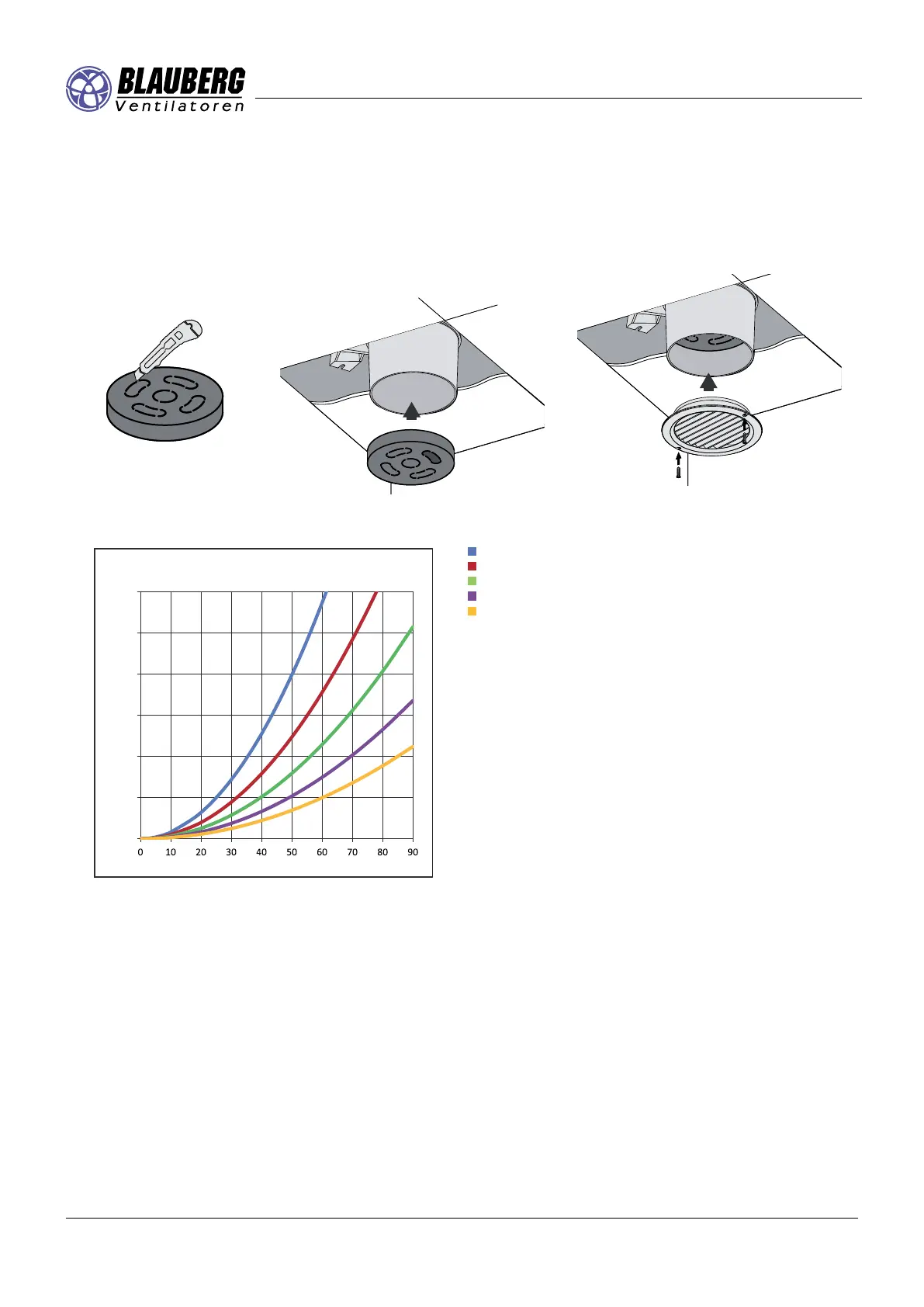

Air ow control in the connector with a circular air throttling damper
1. Remove the grille from the connector.
2. Remove the excess inserts in the air throttling damper by using a knife to cut the jumpers holding them in place.
3. Place the air throttling damper into the spigot of the connector.
4. Install the ventilation grille back into the connector.
0
10
20
30
40
50
60
Pressure [Pa]
Air flow [m
3
/h]
D 125
inserts removed - 1
inserts removed - 2
inserts removed - 3
inserts removed - 4
inserts removed - 5
