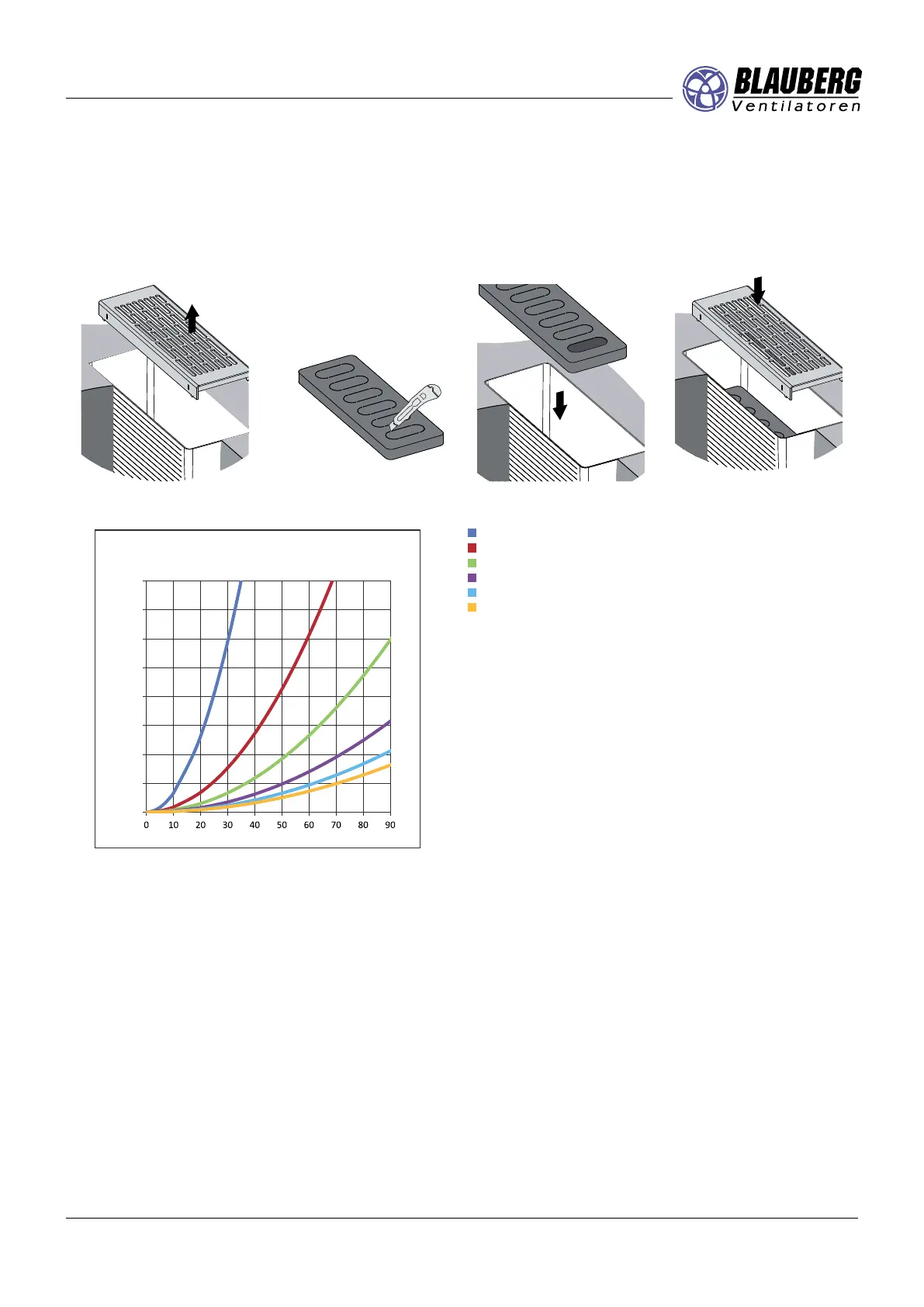

Air ow control in the connector with a rectangular air throttling damper
1. Remove the ventilation grille.
2. Remove the excess inserts in the air throttling damper by using a knife to cut the jumpers holding them in place.
3. Place the air throttling damper in the connector.
4. Install the ventilation grille.
0
5
10
15
20
25
30
35
40
Pressure [Pa]
Air flow [m
3
/h]
D 300x100
inserts removed - 1
inserts removed - 2
inserts removed - 3
inserts removed - 4
inserts removed - 5
inserts removed - 6
