5
SECTION 2 - COMPONENT OVERVIEW
2.1 EXTERNAL VIEW AND COMPONENTS

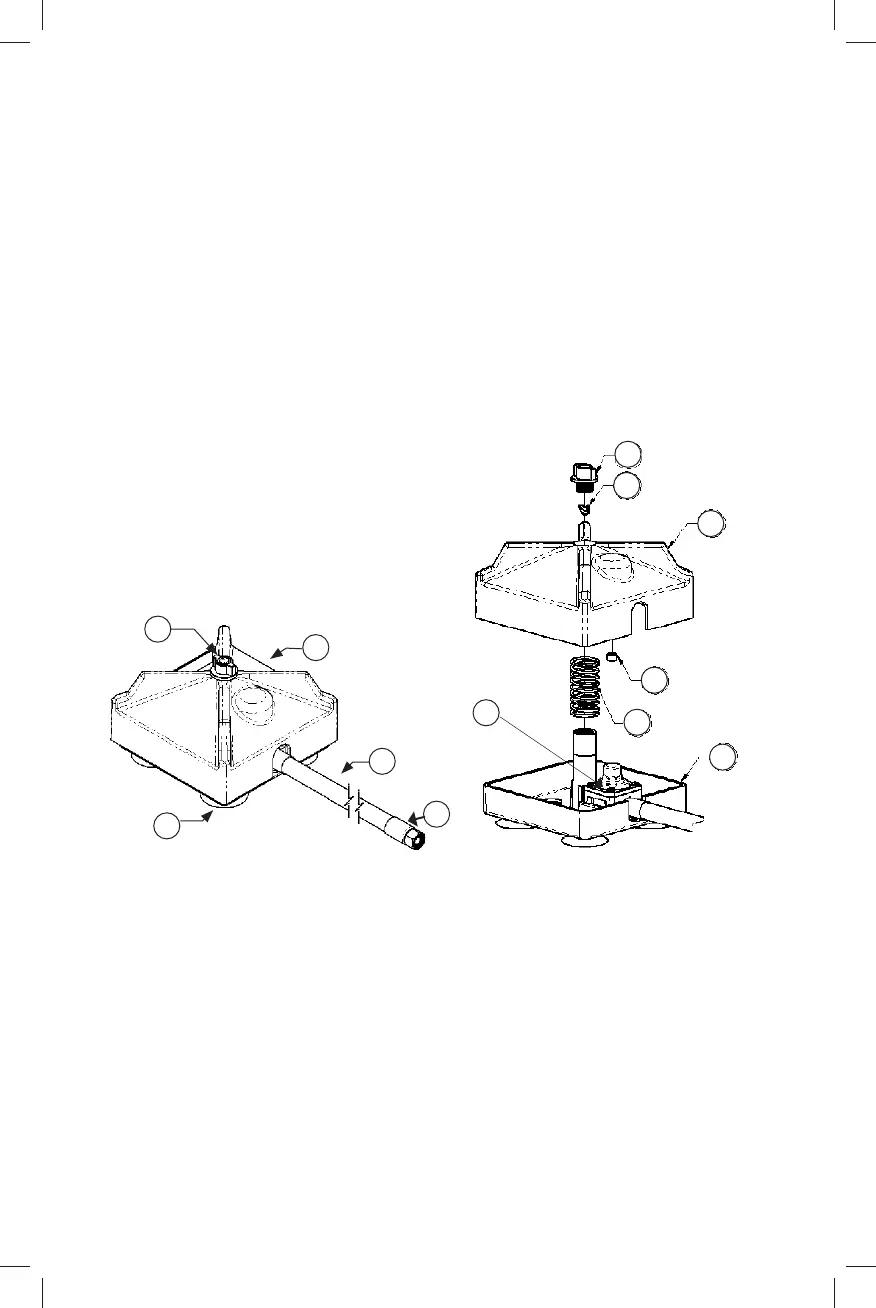

Refer to the lower left figure (Figure 1) below to identify the external components of the
rinser:
1� Spray nozzle
2� Rinser base
3� Water hose
4� Suction cups
5� 3/8” Compression fitting (Optional 3/8” BSPT adapter)
2.2 INTERNAL COMPONENTS
Refer to the lower right figure (Figure 2) below to identify the internal components of the
rinser:
1� Magnet
2� Spring
3� Upper shell
4� Nozzle vane
5� Nozzle
6� Lower shell
7� Water valve
SECTION 3 - UNPACKING
Save your packaging materials for future storage or return shipping� Save these instructions
for future reference�
3.1 UNPACKING YOUR RAPID RINSER
You should have received the following items in your package:
1� Rapid Rinser
2� Water hose
3� Owner’s manual
4� Rapid Rinse Station - Optional see section 8
5
3
1
2
6
4
1
4
3
2
5
Figure 1 Figure 2
7
