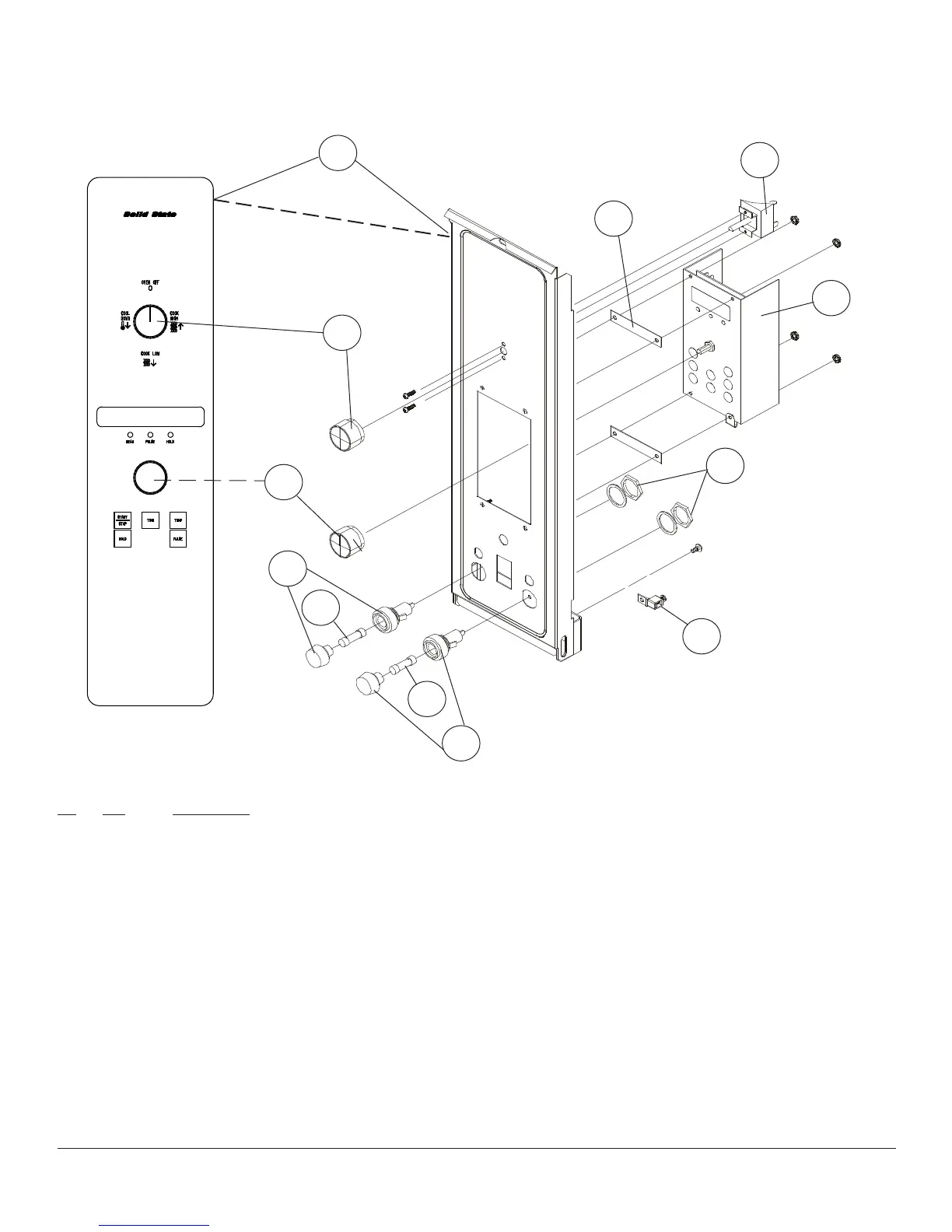

Blodgett CTB - Solid State Digital Controls

JANUARY 12, 2012 5 CTB/CTBR
Ref. Part
No. No. Description
1 30658 Controller, Time/Temp. (5 Key)
21068 Mode Switch, 4 pos.
18588 Probe, Temperature (see picture prior page, item 2 page 4)
2 24685 Knob, Adjust
3 24684 Knob, Mode
4 16605 Fuse, 10 AMP (Before 6/88 and after 01/20/97)
4 20162 Fuse, 10 AMP (Between 6/88 and 01/20/97)
5 20442 Fuse Holder (After 01/20/97)
5 20163 Fuse Holder (Between 6/88 and 01/20/97)
5 16604 Fuse Holder (Before 6/88)
16880 Microswitch Assy., Door
23086 Suppressor Assy.
6 52414 Control Panel & Decal Assy (Before 4-13-2010)
6 30669 Control Panel & Decal (After 4-13-2010)
7 90034 Grounding Lug
8 24931 Spacer, Control Qty 2
36429 Circuit Breaker
SOLID STATE DIGITAL CONTROLS
5 KEY
4
6
5
1
5
3
2
5
5
7
8
4
