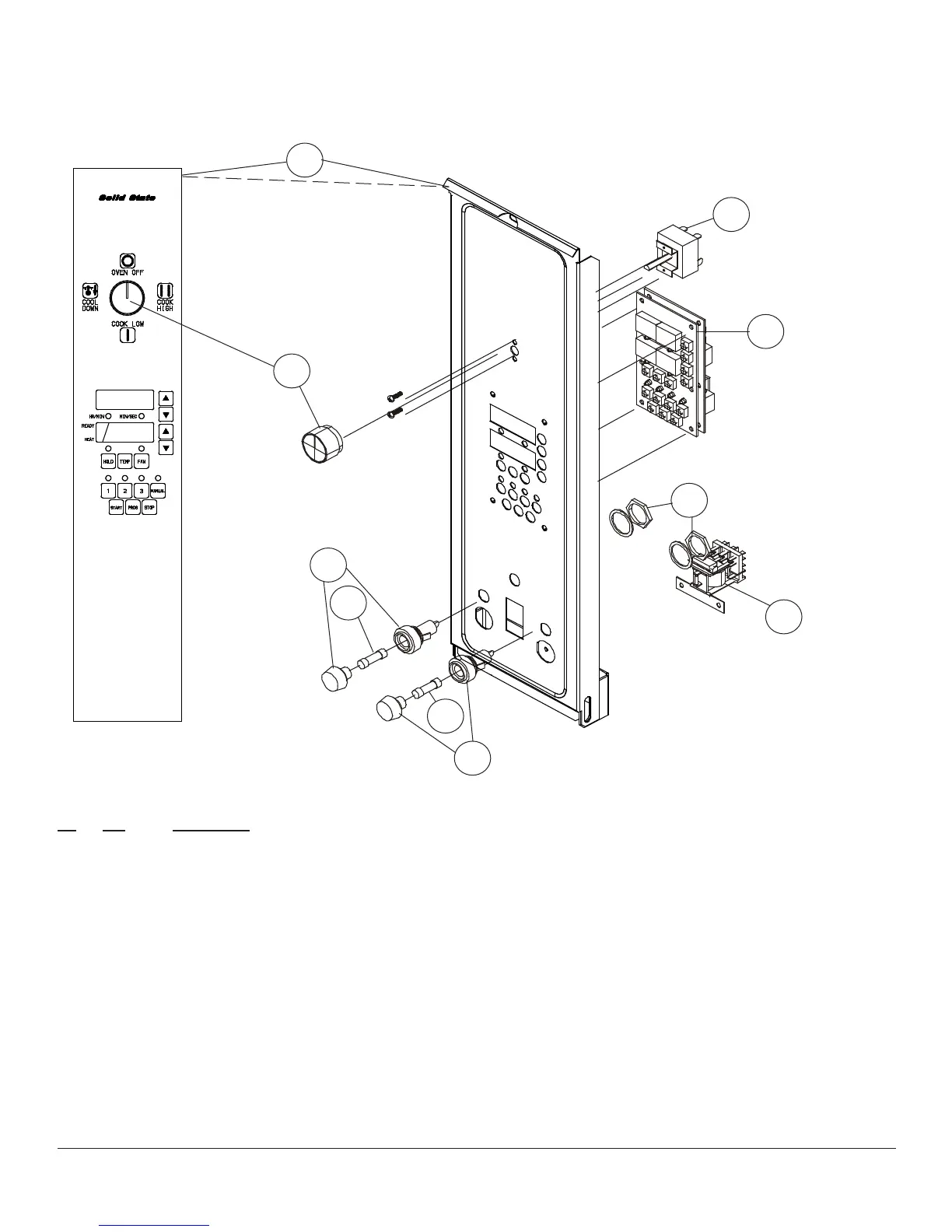

JANUARY 12, 2012 7 CTB/CTBR
Ref. Part
No. No. Description
1 37087 Controller, CH102 14 Key
34473 Probe, RTD 36"
2 21068 Mode Selector Switch, 4 Position
19620 Light Switch, Rocker, DPST, Momentary
3 16605 Fuse, 10 Amp Qty 2
4 20442 Fuseholder, 30 Amp Qty2
5 24684 Knob, Adjust for Mode Selector Switch Qty 1
23086 Suppresor Assy
6 21675 Relay, SPDT 240V Qty 1
16563 Relay Bracket
21058 Harness, Wiring Control Compartment
34411 Harness, Wiring 2 SP
7 36290 Control Panel & Decal Assy, CH102
CH102 CONTROLS
14 KEY
7
1
2
3
3
4
4
6
4
BACK OF
FUSEHOLDER
5
