ELECTRIC CONVECTION OVENS 5 INSTALLATION
OVEN ASSEMBLY
DOUBLE SECTION ASSEMBLY - FULL SIZE OVENS
1. Secure the short legs to the bottom sections as described.
2. Place the upper section in position on top of the lower oven.
3. Attach the stacking brackets using the remaining 5/16” bolts shipped with the ovens.
4. Attach the ue connector.
DOUBLE SECTION - CTB
1. Assemble the lower section to the stand as described. DO NOT replace the side control compartment or close the front
control panel.
2. With a tool, punch out the knock-outs in the oven top of the lower oven.
3. Remove the side control compartment cover and open the front control panel of the upper oven.
4. With a tool, punch out the knock-outs in the bottom of the upper oven near each corner.
5. Set the upper oven on the lower oven.
6. Align the front, and rear bolt holes of the upper oven with the bolt holes in the bottom oven.
7. Insert a bolt and washer, from the top down through each of the 2 holes.
8. Place a nut and washer on each of the 2 bolts, and tighten securely.
9. Replace the control compartment cover, and close the front control panel on both of the ovens.

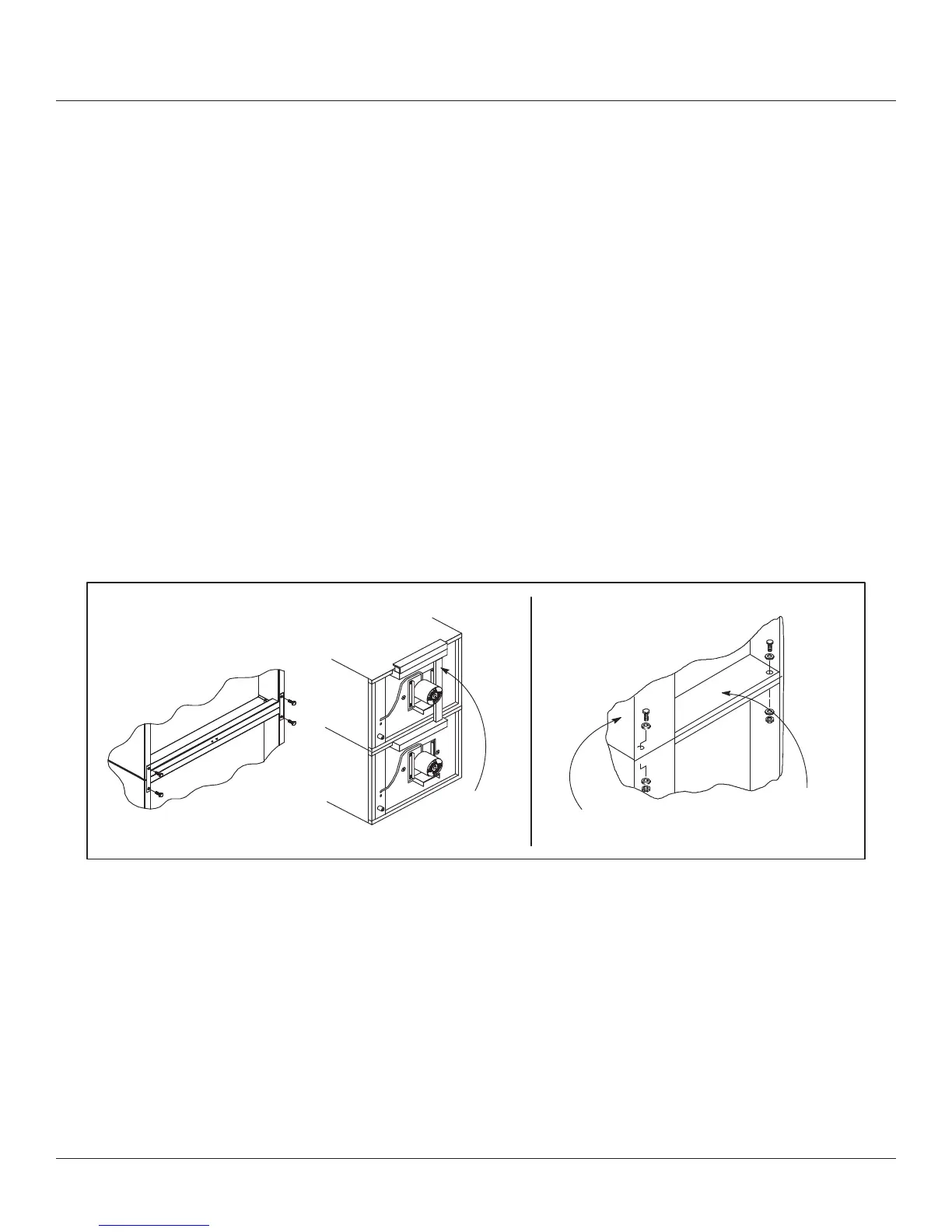

Full Size Oven
Flue
Connector
CTB
Control
compartment
Motor
compartment
Figure 4
OVEN LEVELING
After assembly, the oven should be leveled and moved to the operating location.
1. The oven can be leveled by adjusting the feet or casters located on the bottom of each leg.
To Next Page
