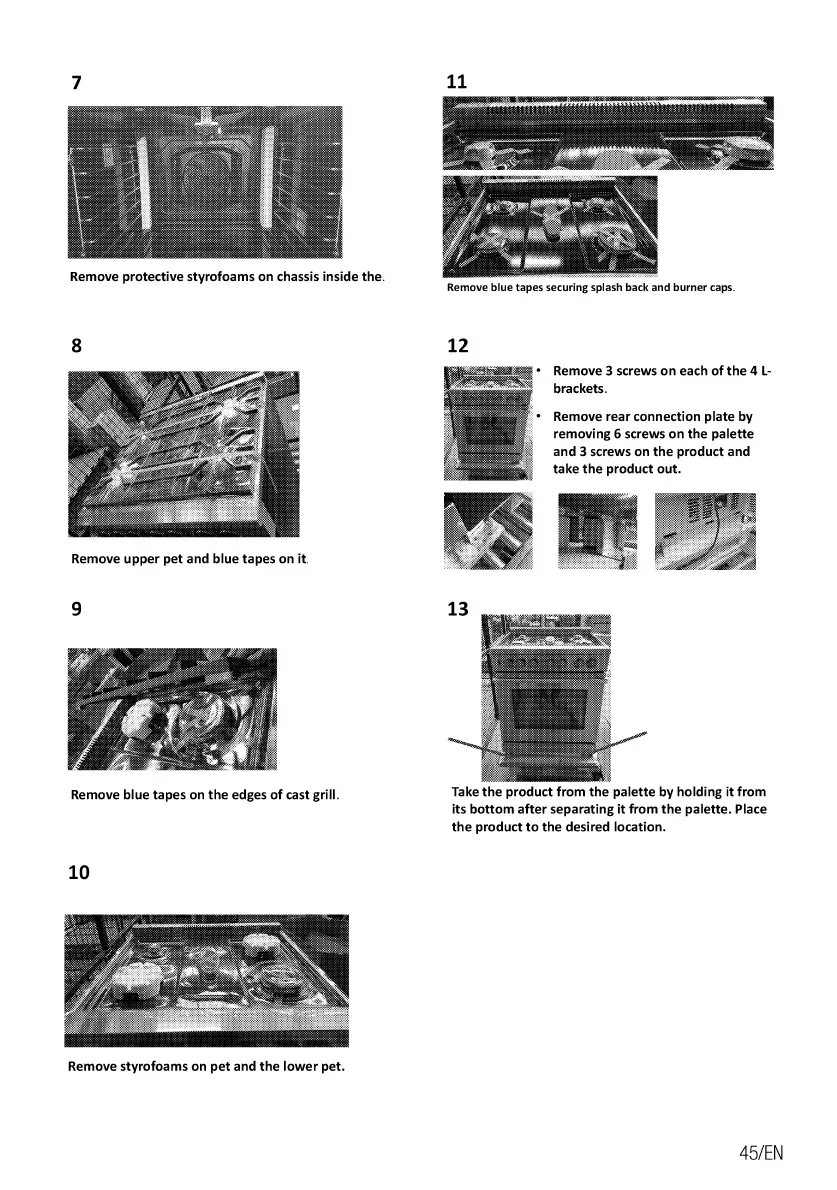

Blomberg BGRP34520CSS - Page 45

7
Remove protective styrofoams on chassis inside the.
8
Remove upper pet and blue tapes on it.
9
Remove blue tapes on the edges of cast grill.
10
Remove styrofoams on pet and the lower pet.
11
Remove blue tapes securing splash back and burner caps.
12
Remove 3 screws on each of the 4 L-
brackets.
Remove rear connection
plate by
removing 6 screws on the palette
and 3 screws on the product and
take
the product out.
Take the product from the palette by holding it from
its bottom after separating it from
the palette. Place
the product to the desired location.
45/EN
