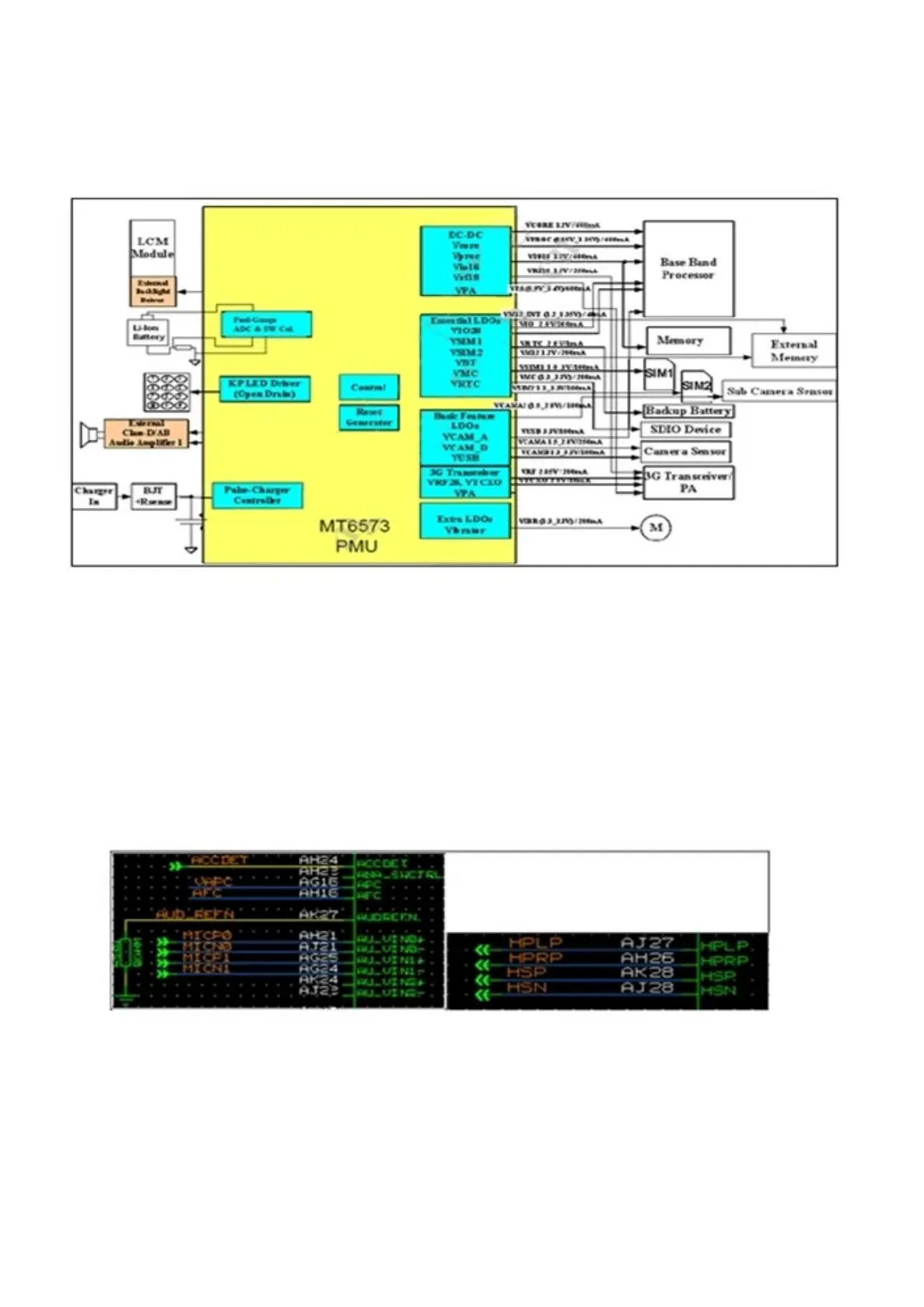

1-4-1 PMU block diagram
1.4.3 Program Memory and Logical Control Part
MT6573 platform storage circuit is completed by MCP, usually 4Gbit/2Gbit DDR +
4Gbit/4Gbit NAND.
BB Chip has a special EMI interface used to access external Memory; currently we
used in most of our projects is the MCP, the future may be used Nand Flash (by NFI
interface access).MCP stores important communication protocol software and mobile
control program and MMI software. MCU run relative FLASH software to coordinate
mobile operation, include RF and I/O interface control and respond to user operation.
1.4.4 Audio Interface
The circuit of audio interface is shown as Image 1-4-2:
1-4-2 audio interface
1.4.5 Camera and LCD Interface
Dash use CPU 8bit interface LCD, support resolution QVGA(240*320);Support 2M
Back Camera and 0.3M front camera. The interface is shown as Image 1-4-3:
