Blue Bird Vision 2021 - Page 188

10-20
DRIVERS HANDBOOK
10F1
10F2
10F3
20F4
10F5
20F6
10F7
30F8
30F9
30F10
5F11
5F12
20F13
F14
F15
F16
F17
F18
F19
F20
F21
F22
F23
F24
F25
F26
F27
F28
F29
F30
F31
F32
F33
F34
F35
F36
F37
F38
F39
F40
10
10
30
30
30
10
20
10
10
20
10
10
SPARESPARE
SPARESPARE
F10 F9 F8 F7 F6 F5
20F4 10F3
5F2 5F1
R10
R1
R9
R8
R7
R6
R5
R4
R3
R2
R5 R1 R2 R3 R4

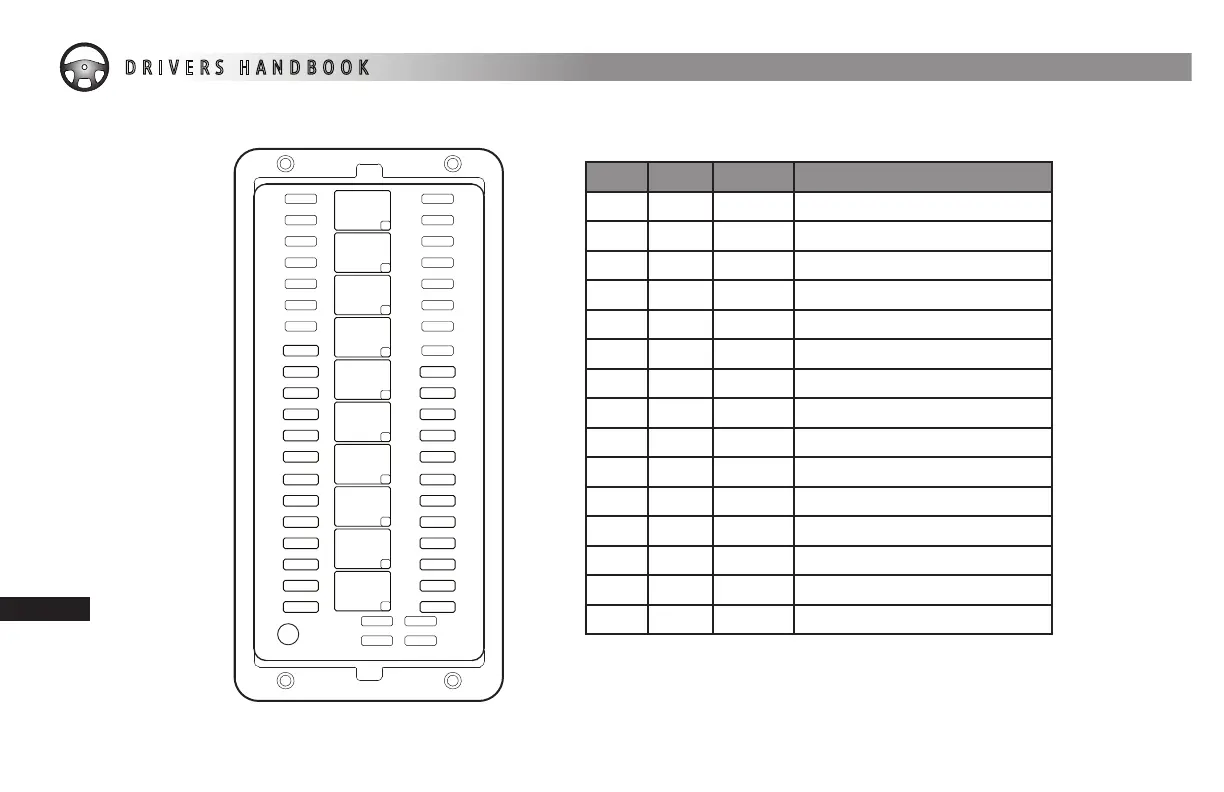

12 Volt Large Box Fuses
Fuse # Relay # Amps Description
F1 N/A 10 12 Volt Supply for VCU
F2 K1 10 Drive Motor Controller Enable
F3 K3 10 Solenoid Valves 1 & 2
F4 N/A 20 12 Volt Supply to Cabin
F5 K5 10 Solenoid Valve 3
F6 N/A 20 12 Volt Supply for Charger(s)
F7 K7 10 Solenoid Valve 4
F8 N/A 30 12 Volt Supply for Coolant Pump 1
F9 N/A 30 12 Volt Supply for Coolant Pump 2
F10 N/A 30 12 Volt Supply for Coolant Pump 3
F11 K11 5 Available
F12 K9 5 Available
F13 K13 20 Enable Signal Excitation
F14 N/A NOT USED
F15 K15 NOT USED
