10-22
DRIVERS HANDBOOK
10F1 10F2 10F3 20F4
10F5 20F6 10F7 30F8 30F9 30F10
5F11 5F12
20F13
F14 F15 F16
F17 F18 F19 F20
F21 F22 F23 F24 F25 F26 F27 F28 F29 F30 F31 F32 F33 F34 F35 F36 F37 F38 F39 F40
10 10 30 30 30 10 20 10 10 20 10 10
SPARESPARE SPARESPARE
F10
F9
F8
F7
F6
F5
20F4
10F3
5F2
5F1
R10 R1 R9 R8 R7 R6 R5 R4 R3 R2
R5
R1
R2
R3
R4

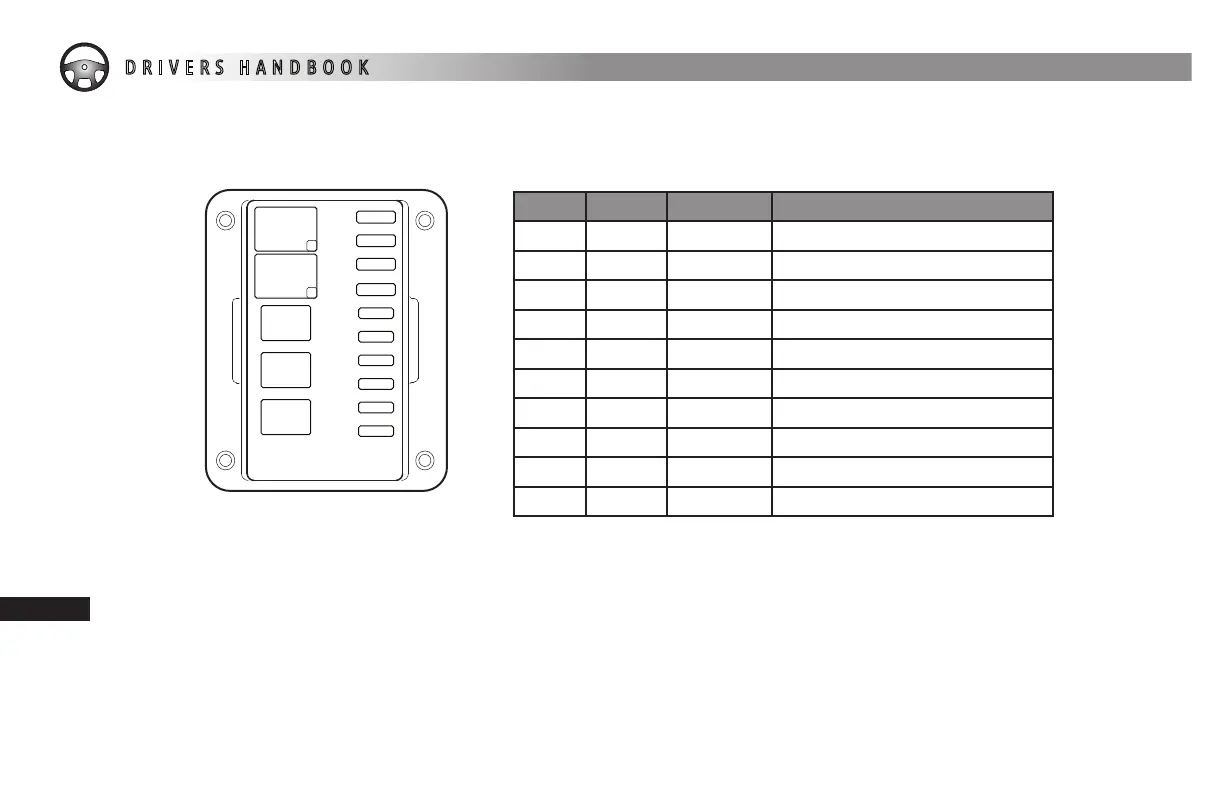

24 Volt Small Box Fuses
Fuse # Relay # Amps Description
F54 K26 5 HV Battery Ignition
F55 N/A 5 24 Volt Supply to HV Battery (T30)
F56 N/A 10 24 Volt Supply to HV Battery (T30C)
F57 K27 20 Available
F58 N/A NOT USED
F59 N/A NOT USED
F60 N/A NOT USED
F61 N/A NOT USED
F62 N/A NOT USED
F63 N/A NOT USED
