Blue Box SIGMA 2002 - Page 120

Blue Box - 114
150 750 300 750 150
2100
60 630 60
3069030
750
Fh
FORI DI FISSAGGIO
FIXING HOLES
G..
PUNTI DI APPOGGIO ANTIVIBRANTI
VIBRATION DAMPER FOOT HOLDS
G1 G1
G2 G2
G4 G4
G3 G3
Fh
Ø18

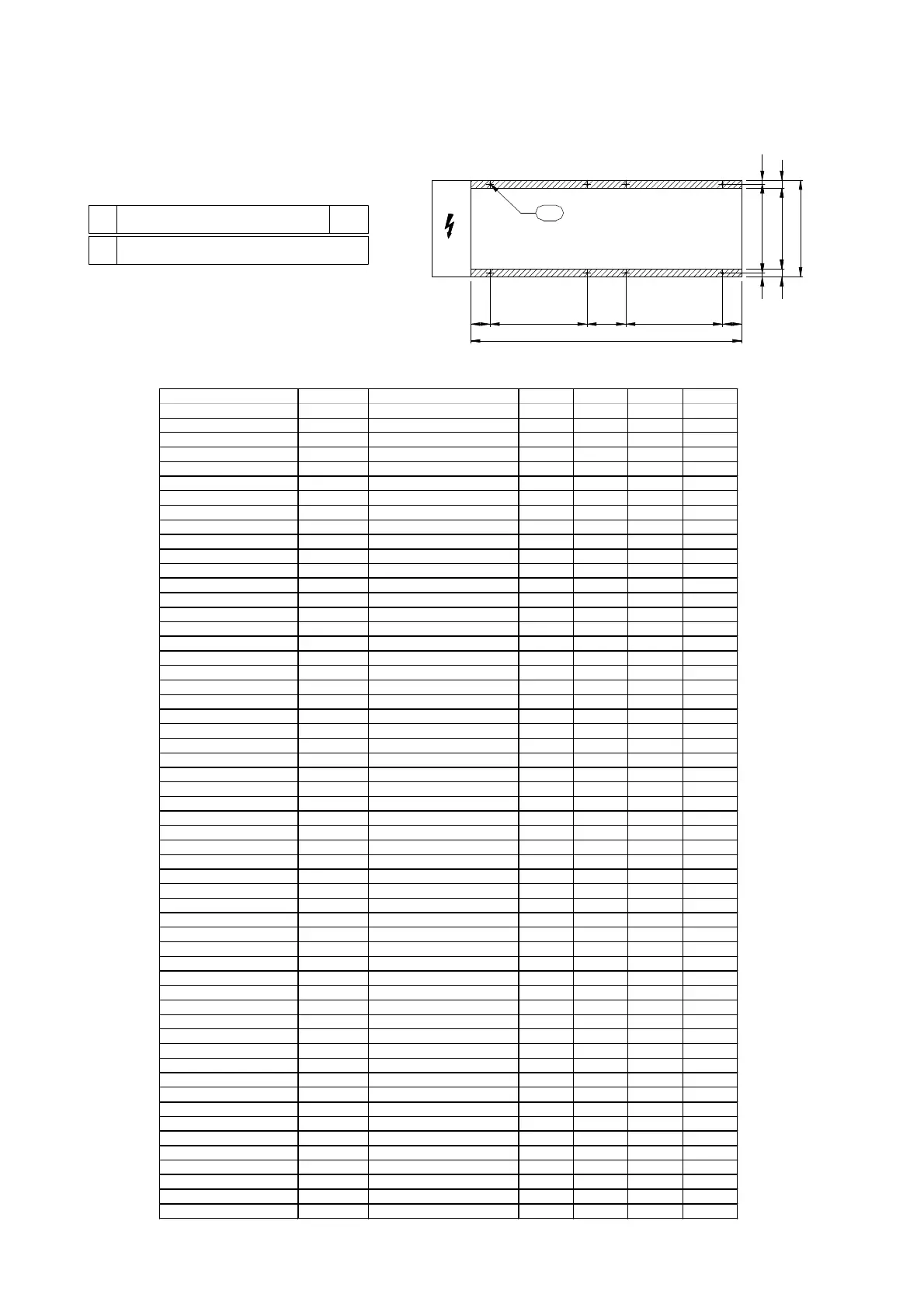

IMPRONTA A TERRA / FOOT PRINT
MODELLO PESO(Kg) PESO IN FUNZIONE(Kg) G1(Kg) G2(Kg) G3(Kg) G4(Kg)
MODEL WEIGHT(Kg) OPERATING WEIGHT(Kg)
SIGMA/LN 16.4 1058 1098 160 108 113 168
SIGMA/LN 18.4 1200 1248 189 119 122 194
SIGMA/LN 20.4 1341 1396 203 144 146 205
SIGMA/LN 24.4 1357 1416 204 146 149 209
SIGMA/LN 26.4 1401 1470 207 149 159 220
SIGMA/LN/H 16.4 1058 1098 160 108 113 168
SIGMA/LN/H 18.4 1200 1248 189 119 122 194
SIGMA/LN/H 20.4 1341 1396 203 144 146 205
SIGMA/LN/H 24.4 1357 1416 204 146 149 209
SIGMA/LN/H 26.4 1401 1470 207 149 159 220
SIGMA/LC/LN 16.4 974 994 162 92 88 155
SIGMA/LC/LN 18.4 1106 1130 183 109 102 171
SIGMA/LC/LN 20.4 1229 1254 197 131 119 180
SIGMA/LC/LN 24.4 1237 1266 198 131 121 183
SIGMA/LC/LN 26.4 1261 1292 202 131 123 190
SIGMA/LC/HP/LN 16.4 1009 1028 167 96 92 159
SIGMA/LC/HP/LN 18.4 1154 1178 190 115 107 177
SIGMA/LC/HP/LN 20.4 1277 1304 204 137 125 186
SIGMA/LC/HP/LN 24.4 1285 1312 205 137 126 188
SIGMA/LC/HP/LN 26.4 1445 1506 206 161 169 217
SIGMA/LC/DC-DS/LN 16.4 1083 1120 177 103 103 177
SIGMA/LC/DC-DS/LN 18.4 1225 1272 199 121 120 196
SIGMA/LC/DC-DS/LN 20.4 1366 1418 214 145 141 209
SIGMA/LC/DC-DS/LN 24.4 1382 1440 216 146 144 214
SIGMA/LC/DC-DS/LN 26.4 1426 1492 221 148 151 226
SIGMA/LE/LN 16.4 981 1006 149 107 103 144
SIGMA/LE/LN 18.4 1105 1130 174 118 110 163
SIGMA/LE/LN 20.4 1237 1266 186 143 132 172
SIGMA/LE/LN 24.4 1245 1278 186 145 135 173
SIGMA/LE/LN 26.4 1265 1306 186 149 141 177
SIGMA/LE/HP/LN 16.4 1009 1026 154 109 104 146
SIGMA/LE/HP/LN 18.4 1154 1176 181 123 115 169
SIGMA/LE/HP/LN 20.4 1277 1302 193 147 135 176
SIGMA/LE/HP/LN 24.4 1285 1314 193 149 137 178
SIGMA/LE/HP/LN 26.4 1309 1342 193 153 144 181
SIGMA/LE/DC-DS/LN 16.4 1091 1134 164 118 119 166
SIGMA/LE/DC-DS/LN 18.4 1224 1274 190 130 129 188
SIGMA/LE/DC-DS/LN 20.4 1374 1434 204 157 155 201
SIGMA/LE/DC-DS/LN 24.4 1390 1454 205 159 159 204
SIGMA/LE/DC-DS/LN 26.4 1430 1506 206 165 170 212
SIGMA/HP/LN 16.4 1061 1096 162 107 111 168
SIGMA/HP/LN 18.4 1211 1256 190 120 123 195
SIGMA/HP/LN 20.4 1343 1392 204 143 144 205
SIGMA/HP/LN 24.4 1359 1410 205 145 147 208
SIGMA/HP/LN 26.4 1407 1468 208 149 157 220
SIGMA/HP/DS/LN 16.4 1116 1158 163 111 123 182
SIGMA/HP/DS/LN 18.4 1266 1318 191 123 135 210
SIGMA/HP/DS/LN 20.4 1406 1468 206 147 159 222
SIGMA/HP/DS/LN 24.4 1422 1486 207 149 162 225
SIGMA/HP/DS/LN 26.4 1470 1544 210 153 172 237
SIGMA/DC-DS/LN 16.4 1168 1226 175 119 129 190
SIGMA/DC-DS/LN 18.4 1319 1388 204 131 140 219
SIGMA/DC-DS/LN 20.4 1478 1560 220 158 168 234
SIGMA/DC-DS/LN 24.4 1502 1590 222 160 173 240
SIGMA/DC-DS/LN 26.4 1566 1670 227 166 187 255
DIMENSIONS, WEIGHTS AND HYDRAULIC CONNECTIONS
SIGMA 2002 - FOOTPRINT - MODELS 16.4 - 26.4
