DIMENSIONS, WEIGHTS AND HYDRAULIC CONNECTIONS

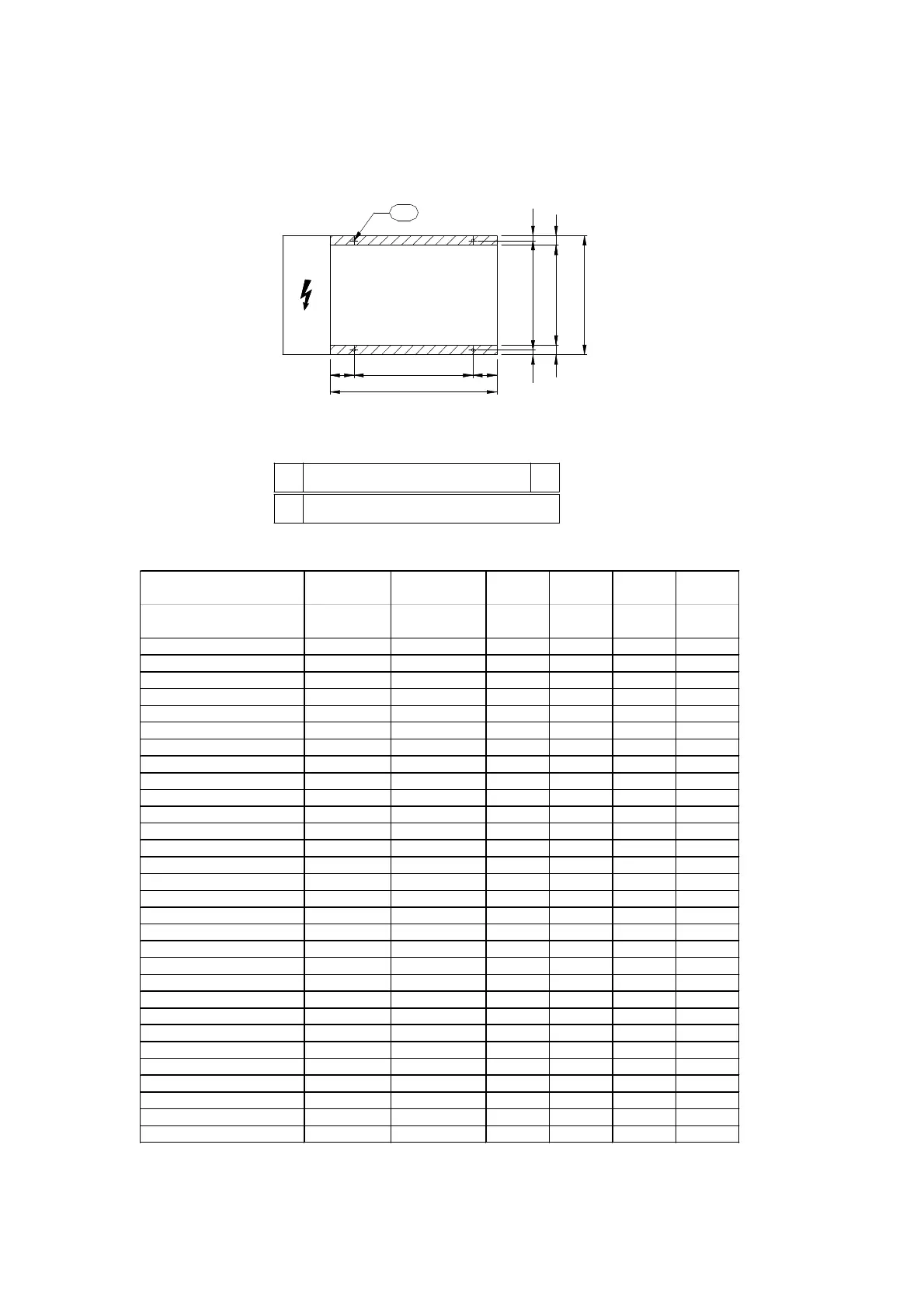

SIGMA 2002/LC - SIGMA 2002/LC/HP - FOOTPRINT - MODELS 8.2 - 13.2
MODELLO PESO(Kg)
PESO IN
FUNZIONE(Kg)
G1(Kg) G2(Kg) G3(Kg) G4(Kg)
MODEL WEIGHT(Kg)
OPERATING
WEIGHT(Kg)
SIGMA /LC 8.2 476 485 180 62 62 181
SIGMA /LC 9.2 549 559 195 89 86 189
SIGMA /LC 10.2 628 640 233 95 90 222
SIGMA /LC 12.2 664 677 240 107 102 228
SIGMA /LC 13.2 708 725 259 110 106 250
SIGMA /LC/HP 8.2 494 502 179 63 68 192
SIGMA /LC/HP 9.2 567 577 195 90 92 200
SIGMA /LC/HP 10.2 645 656 232 96 96 232
SIGMA /LC/HP 12.2 681 694 239 109 108 238
SIGMA /LC/HP 13.2 722 738 258 110 111 259
SIGMA /LC/DC-DS 8.2 539 557 194 69 77 217
SIGMA /LC/DC-DS 9.2 617 638 210 96 104 228
SIGMA /LC/DC-DS 10.2 704 730 247 104 112 267
SIGMA /LC/DC-DS 12.2 745 773 255 116 126 276
SIGMA /LC/DC-DS 13.2 798 831 274 120 133 304
SIGMA /LC/LN 8.2 508 516 188 69 70 189
SIGMA /LC/LN 9.2 581 591 203 97 94 197
SIGMA /LC/LN 10.2 659 672 241 103 98 230
SIGMA /LC/LN 12.2 695 709 248 115 110 236
SIGMA /LC/LN 13.2 740 756 267 118 113 258
SIGMA /LC/HP 8.2 494 502 179 63 68 192
SIGMA /LC/HP 9.2 567 577 195 90 92 200
SIGMA /LC/HP 10.2 645 656 232 96 96 232
SIGMA /LC/HP 12.2 681 694 239 109 108 238
SIGMA /LC/HP 13.2 722 738 258 110 111 259
SIGMA /LC/DC-DS/LN 8.2 571 589 202 77 85 225
SIGMA /LC/DC-DS/LN 9.2 648 669 218 104 112 235
SIGMA /LC/DC-DS/LN 10.2 736 762 255 112 120 275
SIGMA /LC/DC-DS/LN 12.2 776 805 263 124 134 284
SIGMA /LC/DC-DS/LN 13.2 829 863 282 128 141 312
G..
PUNTI DI APPOGGIO ANTIVIBRANTI
VIBRATION DAMPER FOOT HOLDS
Fh
FORI DI FISSAGGIO
FIXING HOLES
1050
750
IMPRONTA A TERRA / FOOT PRINT
150
Fh
G4
G1
30
150
60
750 690 30
60630
G3
G2
Ø18
