Blue Box SIGMA 2002 - Page 56

Blue Box - 50
OPTIONAL
KM1 CONTACTOR COMPRESSOR 1
KM2 CONTACTOR COMPRESSOR 2
KM3 CONTACTOR COMPRESSOR 3
KM4 CONTACTOR COMPRESSOR 4
A13 TERMOSTATO BATTERIA
FU1 FUSES COMPRESSOR 1
FU2 FUSES COMPRESSOR 2
FU3 FUSES COMPRESSOR 3
FU4 FUSES COMPRESSOR 4
QS1 MAIN SWITCH
FU56 PHASE SEQ. RELAY FUSES
FU50 FUSES AUX. TRANSFORMER
FU52 FUSE CONTROL
TC1 AUX. TRANSFORMER
A5 PHASE SEQUENCE RELAY
FU51 AUX. CIRCUIT FUSES

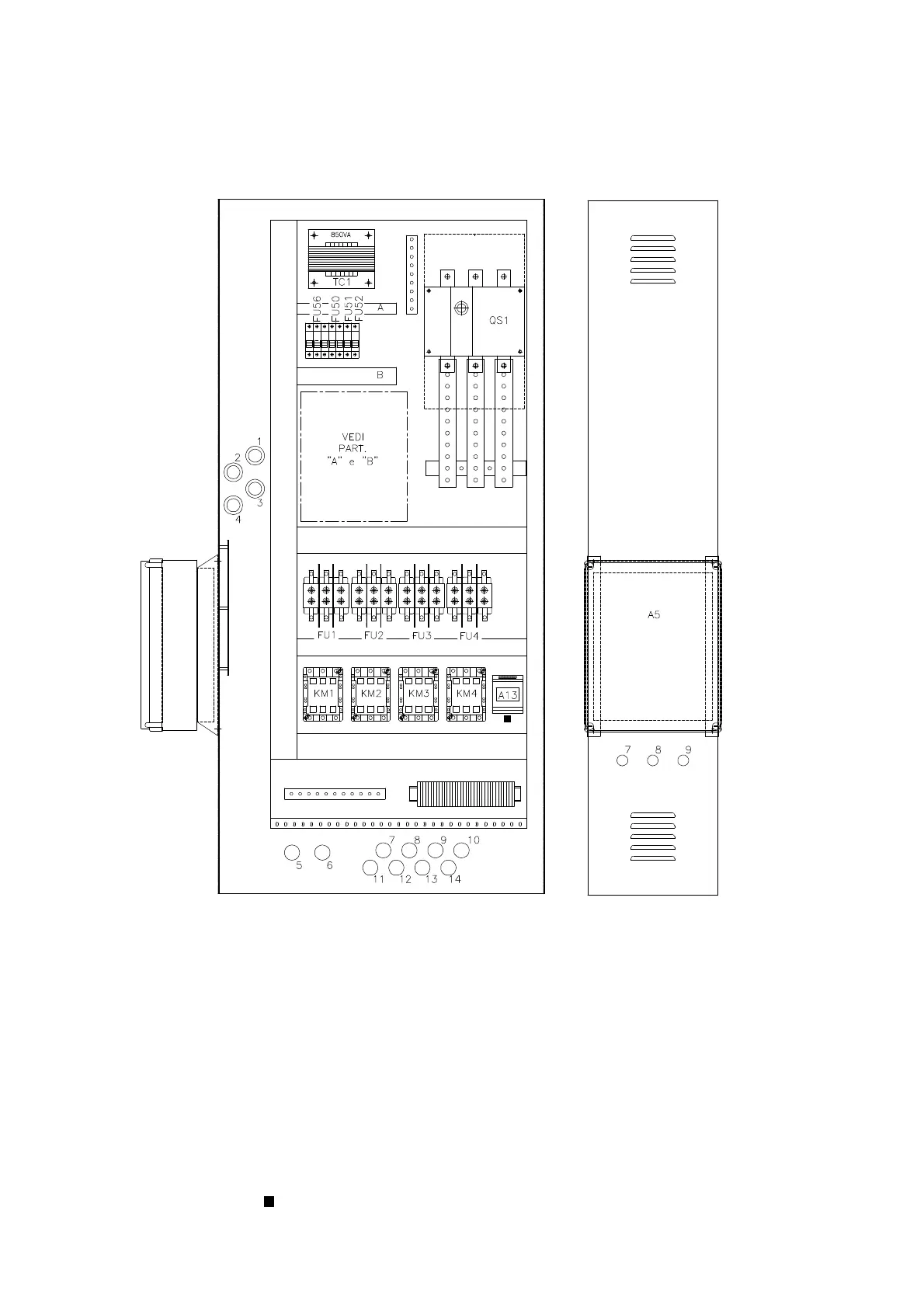

ELECTRIC PANEL LAY OUT
SIGMA 2002 - SIGMA 2002 HP - SIGMA 2002 LE - SIGMA 2002 LE/HP - SIGMA 2002 LC -
SIGMA 2002 LC/HP - Models 14.4 - 26.4
