Blue Box SIGMA 2002 - Page 58

Blue Box - 52

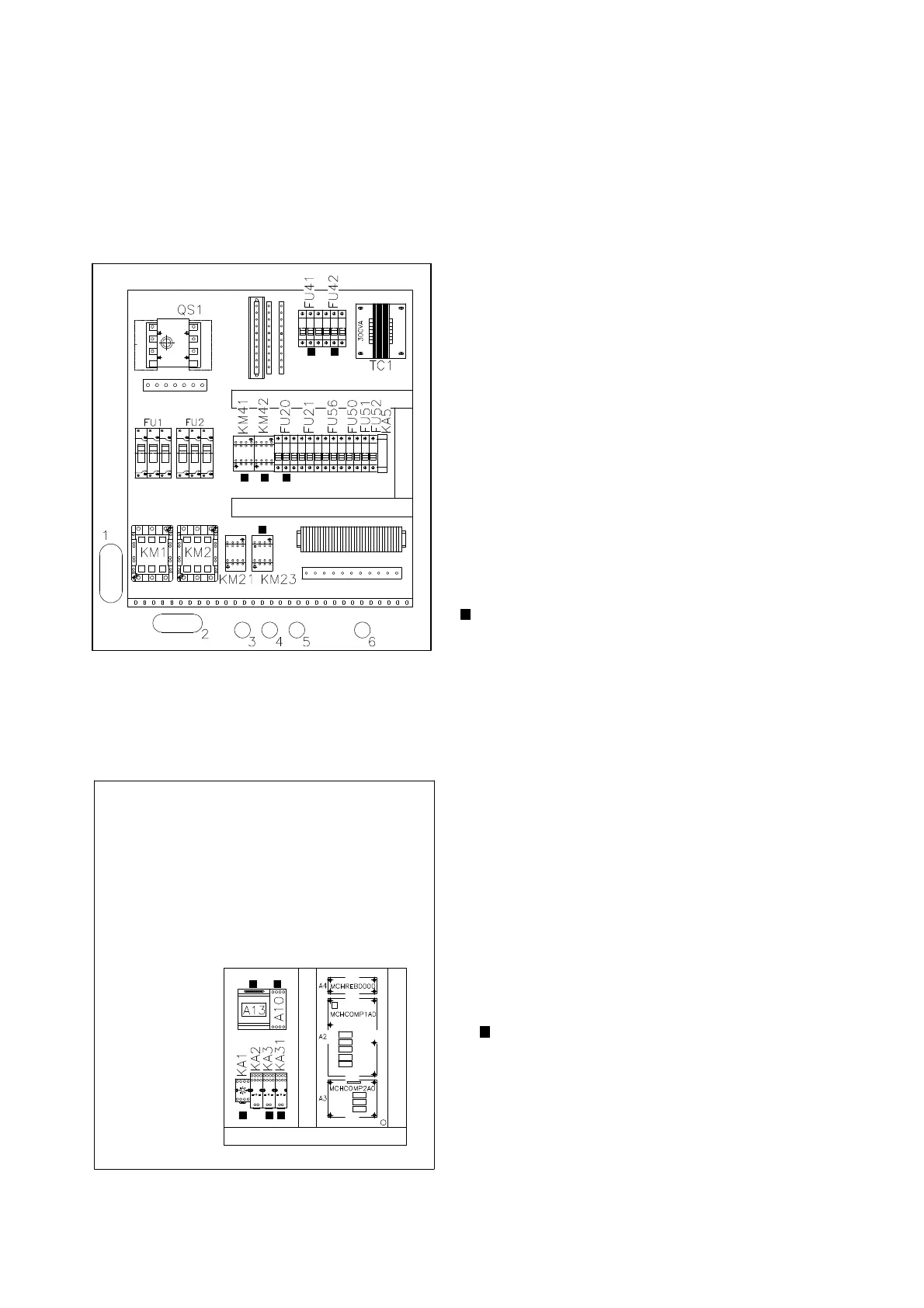

ELECTRIC PANEL LAY OUT
SIGMA 2002 LC - SIGMA 2002 LC/HP - WITH ARRANGEMENT FOR REMOTE CONDENSER AND
POWER FACTOR CORRECTION CONDENSERS - Models 3.2 - 7.2
OPTIONAL
KM1 CONTACTOR COMPRESSOR 1
KM2 CONTACTOR COMPRESSOR 2
KM21 CONTACTOR FAN 1
KM23 CONTACTOR FAN 2
FU1 FUSES COMPRESSOR 1
FU2 FUSES COMPRESSOR 2
KM41 CONTACT. CAPACITOR POW. FACT. CORRECT. 1
KM42 CONTACT. CAPACITOR POW. FACT. CORRECT. 2
FU20 FUSES FAN SPEED CONTROL
FU21 FUSES FAN 1
FU56 PHASE SEQ. RELAY FUSES
FU50 FUSES AUX. TRANSFORMER
FU51 AUX. CIRCUIT FUSES
FU52 FUSE CONTROL
KA5 PHASE SEQUENCE RELAY
QS1 MAIN SWITCH
FU41 FUSES CAPACITOR POW. FACT. CORRECT. 1
FU42 FUSES CAPACITOR POW. FACT. CORRECT. 2
KA1 VOLTAGE RELAY
KA2 RELAY ALARM FANS
KA3 RELAY HP/LC
KA31 RELAY HP 1
A4 BOARD FOR REMOTE CONTROL
A2 CONTROL BOARD
A3 EXPANSION BOARD 2 COMPR.
A13 THERMOSTAT COIL
A10 CONTROL BOARD ON/OFF
OPTIONAL
PANEL LOGIC SECTION WITH CONTROL
