Blue Box SIGMA 2002 - Page 61

Blue Box - 55
OPTIONAL
KA1 VOLTAGE RELAY
KA2 RELAY ALARM FAN
KA3 RELAY HP/LC
KA31 RELAY HP 1
KM1 CONTACTOR COMPRESSOR 1
KM2 CONTACTOR COMPRESSOR 2
KM21 CONTACTOR FAN 1
KM22 CONTACTOR FAN 2
KM23 CONTACTOR FAN 3
KM24 CONTACTOR FAN 4
KM41 CONTACT. CAPACITOR POW. FACT. CORRECT. 1
KM42 CONTACT. CAPACITOR POW. FACT. CORRECT. 2
FU1 FUSES COMPRESSOR 1
FU2 FUSES COMPRESSOR 2
FU20 FUSES FAN SPEED CONTROL
FU21 FUSES FAN 1
FU22 FUSES FAN 2
FU41 FUSES CAPACITOR POW. FACT. CORRECT. 1
FU42 FUSES CAPACITOR POW. FACT. CORRECT. 2
A10 CONTROL BOARD ON/OFF
A13 THERMOSTAT COIL
FU50 FUSES AUX. TRANSFORMER
FU51 AUX. CIRCUIT FUSES
FU52 FUSE CONTROL
FU56 PHASE SEQ. RELAY FUSES
TC1 AUX. TRANSFORMER
A5 PHASE SEQUENCE RELAY

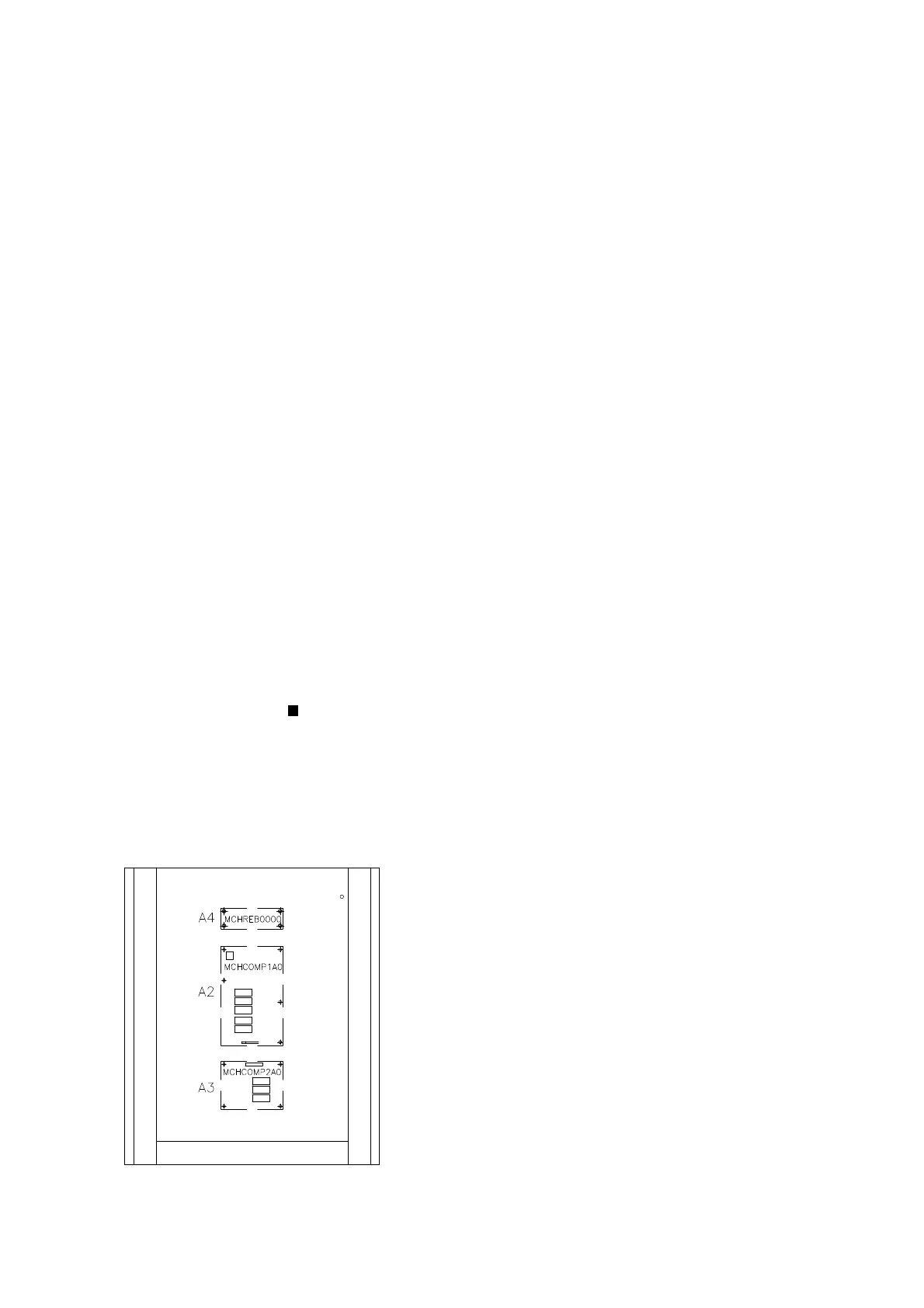

ELECTRIC PANEL LAY OUT
SIGMA 2002 LC - SIGMA 2002 LC/HP - WITH ARRANGEMENT FOR REMOTE CONDENSER AND
POWER FACTOR CORRECTION CONDENSERS - Models 8.2 - 13.2
PANEL LOGIC SECTION WITH CONTROL
A4 BOARD FOR REMOTE CONTROL
A2 CONTROL BOARD
A3 EXPANSION BOARD 2 COMPRESSORS
