ASSEMBLY INSTRUCTIONS
2
1
7
F
I
10
A
G

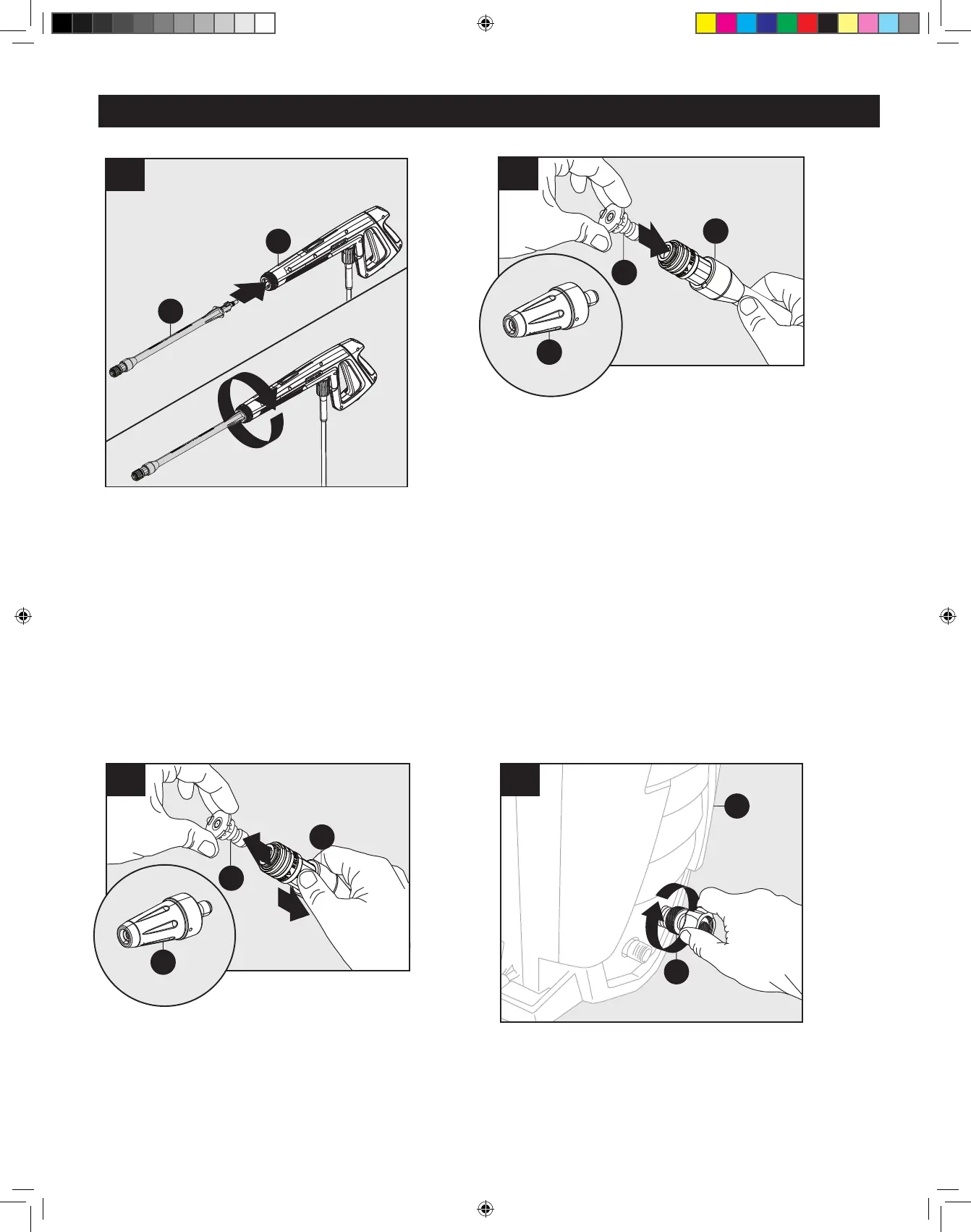

Garden Hose Adapter Installation
Attach collar of garden hose adapter (G) directly to
power washer water inlet (A). Hand tighten.
Extension Lance Installation
While the spray gun (I) is in the locked position, insert
the extention lance (F) into the end of the spray gun,
by inserting and pushing together turning clockwise
simultaneously. To remove, push together and turn
counterclockwise.
Note: Always push the safety lock button to lock the
trigger when changing lances to ensure that they do not
accidentally eject with force during removal.
Attach nozzle (H) or rotary nozzle (O) into end of lance
(F) by pressing selected nozzle into place. It will make a
“click” sound when rmly in place.
Note: Always turn the safety lock dial to lock trigger
when changing lances and nozzles to ensure that they
do not accidentally eject with force during removal.
8
F
H
1
2
9
F
H
To remove nozzle (H) or rotary nozzle (O) pull back on
collar of lance (F) and pull out nozzle.
