ASSEMBLING THE POOL RAIL
• IMPORTANT: Leave about 0.4-inch (1 cm) gap between the 2 ends of the Bottom Rail.
• Place the metal foot plates equally around the curved ends of the pool (see diagram 11).
• Slide the resin bottom rail into the metal foot plate (see diagram 12). Repeat this process for all
bottom rails.
• It is recommended that a 2-in patio block is place under each foot plate. The patio blocks must be
dug into the dirt so the bottom rails and foot plates lay ush on the ground.
• Make ne adjustment to the bottom rail’s diameter.
• When all the rails are slid into the metal plates, each end should form approximately one half of a
complete circle.
• Check your positioning and dimensions against those shown in diagrams X-1 and X-2 in the Pool Set
up section. Shorten or lengthen the gap distance between the 2 ends of bottom rails as necessary
to make the wall t properly.

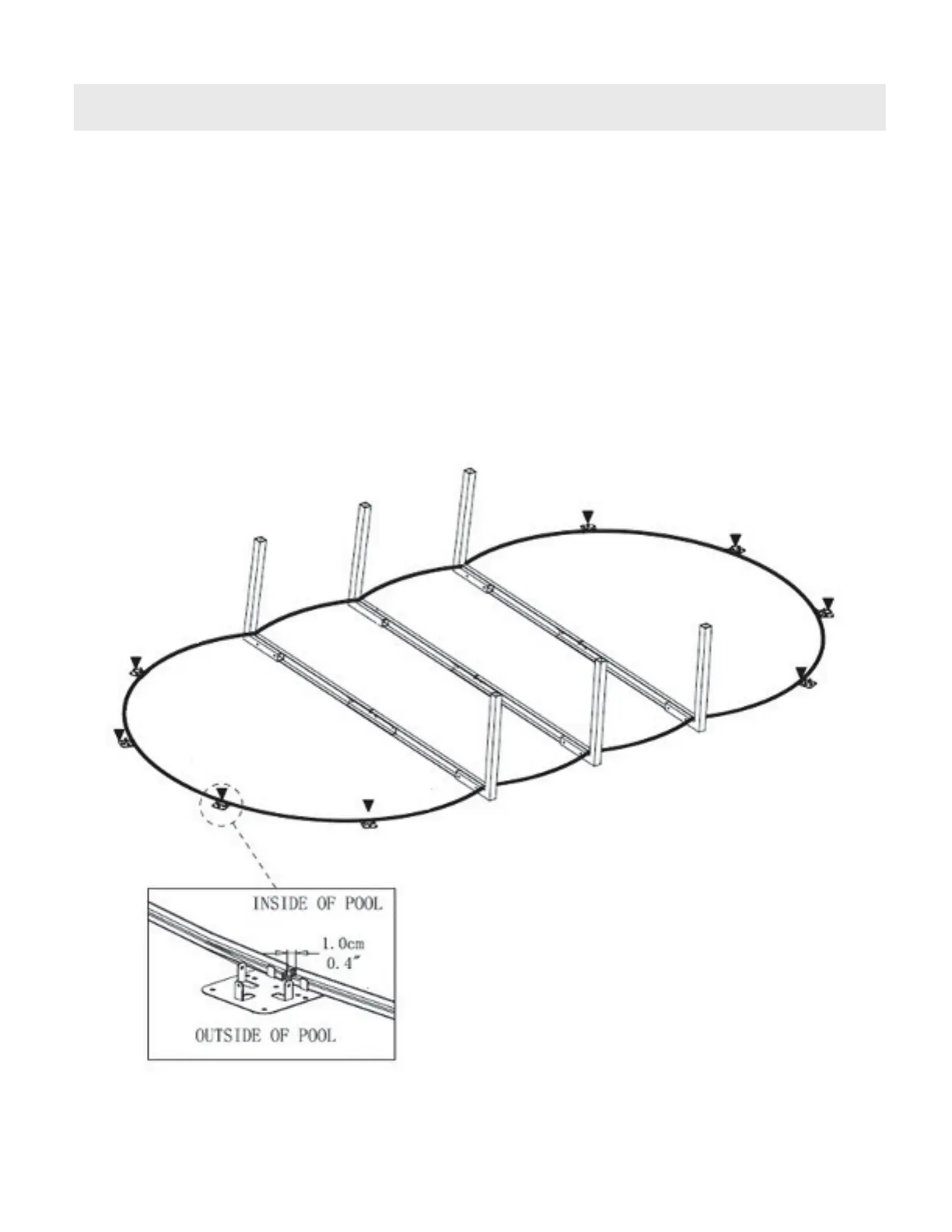

(Diagram 11)
(Diagram 12)
