POOL FRAME ASSEMBLY
• Once all frames have been correctly assembled, and the nuts and bolts have been tightened,
position the assembled frames on the pool site.
• Place the rst assembled frame upright across the width of the pool at a point 10’ (3070mm) from
the end of the cleared area.
• Place the remaining assembled frames at a point 4-ft 10-in (1480-mm) from the center line of the
adjacent assembled frame (see diagram 5).
Note: 4-ft 10-in (1480-mm) measurements are taken from the center of the L supports.
• Follow the parts list and match against diagram 4.
• Work off to the side of the pool site to connect the L support, xing plate, and connection plate as
shown in diagram, using the nut, washer, and bolt provided. This will prevent you from disturbing
the pool site ground preparation.

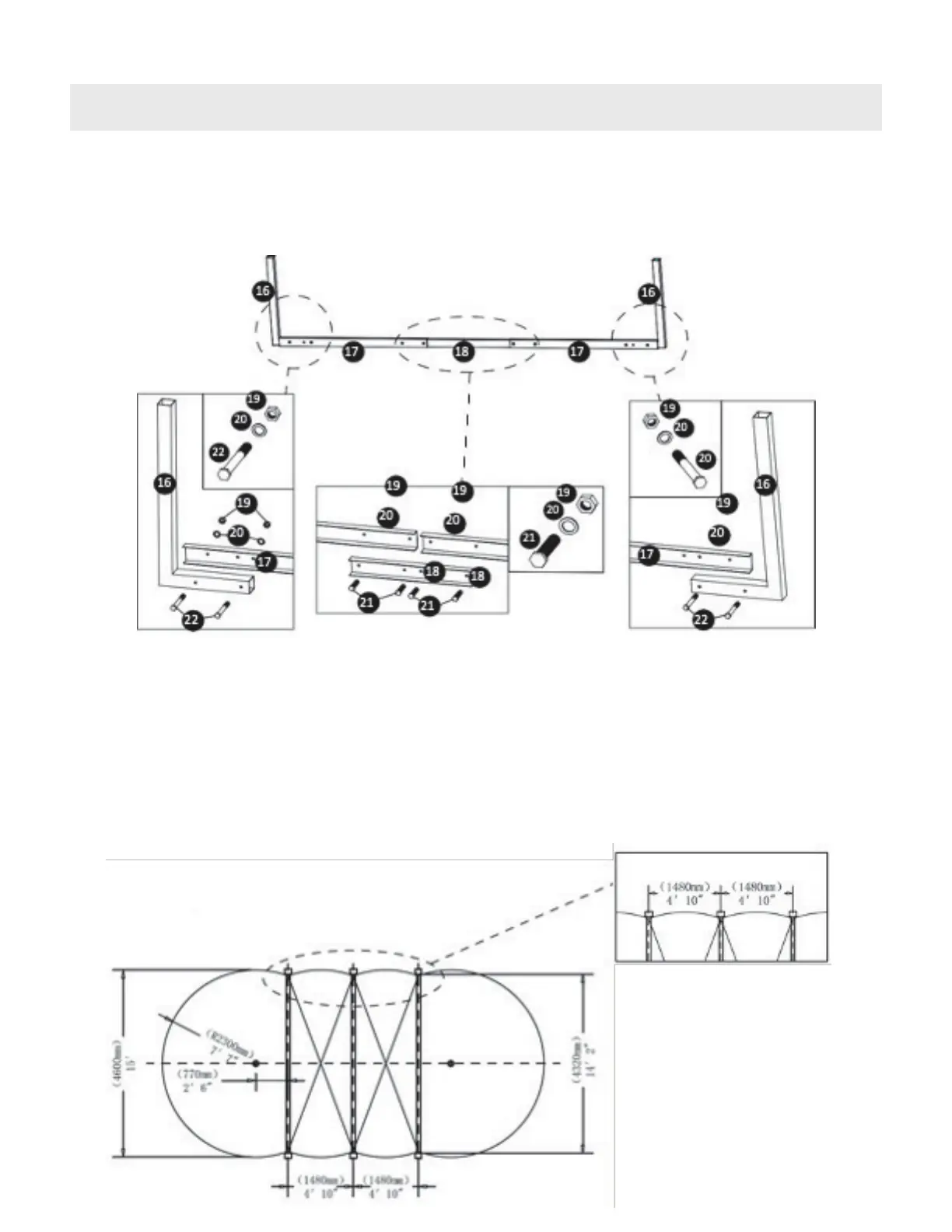

(Diagram 4)
(Diagram 5)
