BLUM Aventos HK-S User Manual

Subject to technical modifications without notice. © 2015
2
Z
64
52
5 min.
5
Universal individual template is available for pre-boring locating pins
WARNING
1

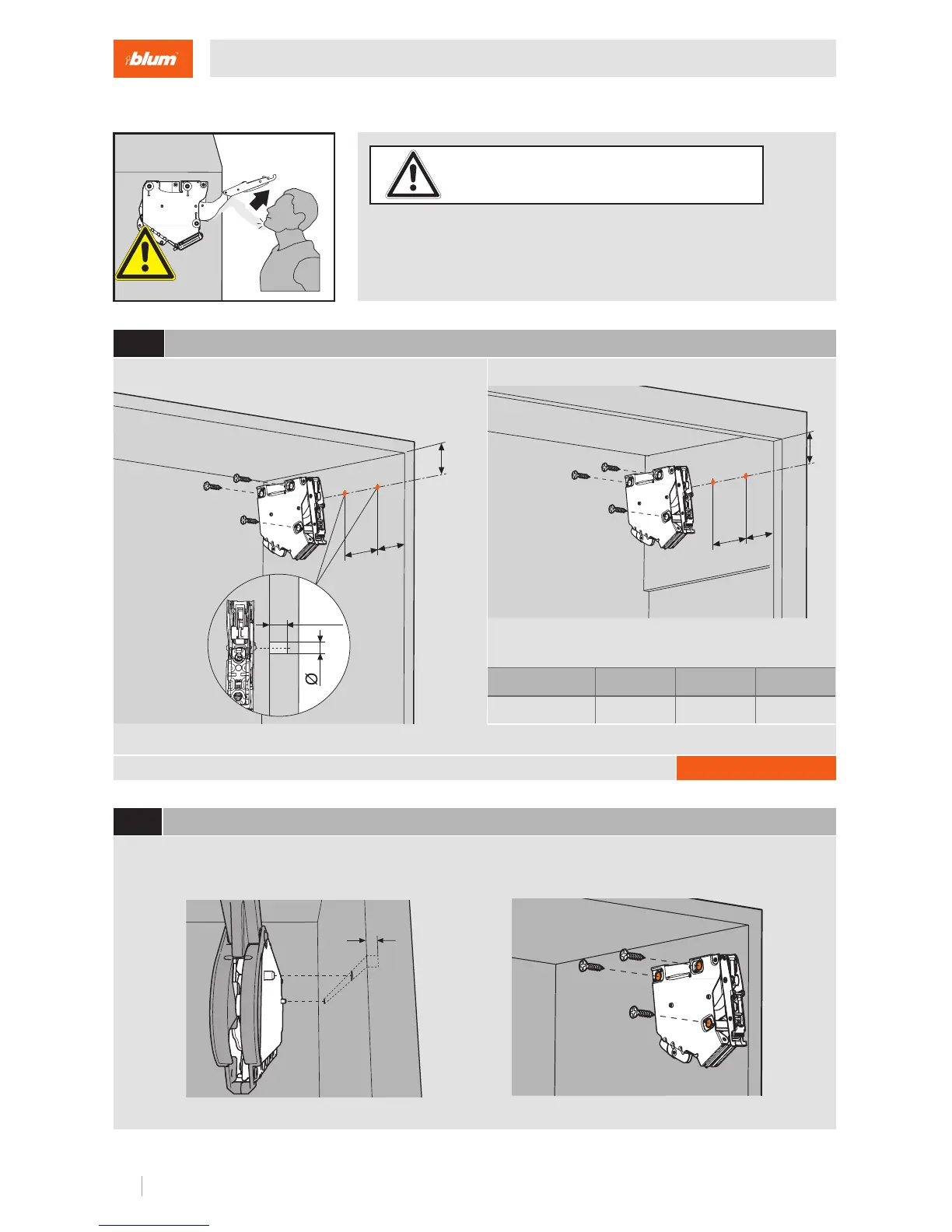

Locating pin locations and minimum depth
Part no.
65.1051.02
2
Attaching the lift mechanism
Z
64
52
Panel Face frame
Overlay up to 20
24 26
Z
37 35.5 34.5
NOTE: Face frame cabinets must be blocked
out flush with the frame.
Assembly
Risk of injury from spring-loaded arm
▀
Do not push arm assembly down or leave in the down position
▀
Remove mechanism before installing or removing cabinet
5 min.
Ø5
Align the lift mechanism in the cabinet using the 5 mm locator pins and attach the mechanism with the three
wood screws provided.
#7 x 35 mm (1-3/8") wood screws (qty 3)

BLUM Aventos HK-S Specifications

General

Opening Angle	107°
Power Factor Range	Not applicable
Type	Lift System
Application	Wall cabinets
Adjustment	3-dimensional adjustment
Material	Steel
Color	Light gray (RAL 9006)
