BLUM Aventos HK-S User Manual

Subject to technical modifications without notice. © 2015

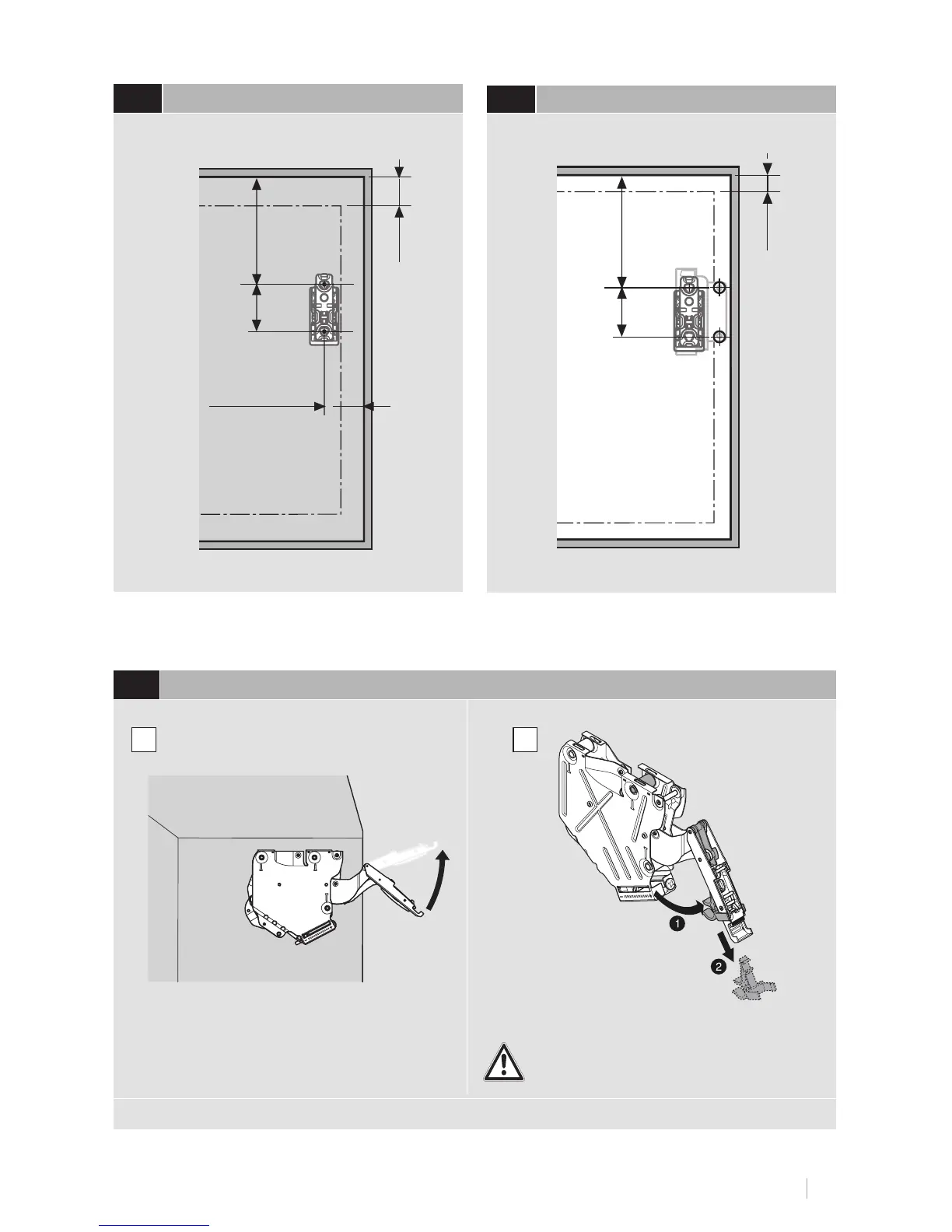

3
Narrow aluminum frame doors
3b
Wood/wide aluminum frame doors
3a
NOTE: Attach each mounting plate with two 606N or 606P wood screws for wood doors, two
7072A screws for wide aluminum doors or two 699.110 screws for narrow aluminum doors
Overlay
12.5
+
Overlay
32
58
+
Overlay
Overlay
31
56
+
Overlay
Attaching the mounting plates
Risk of injury from spring-loaded arm.
Standing at arm’s length carefully raise the
arm to the upright position.
For the 20K2B00.NA, carefully
remove the plastic tab .
4
Raise lever arm assembly with caution
NOTE: Do not remove plastic tab until just before attaching the door
A
B

BLUM Aventos HK-S Specifications

General

Opening Angle	107°
Power Factor Range	Not applicable
Type	Lift System
Application	Wall cabinets
Adjustment	3-dimensional adjustment
Material	Steel
Color	Light gray (RAL 9006)
