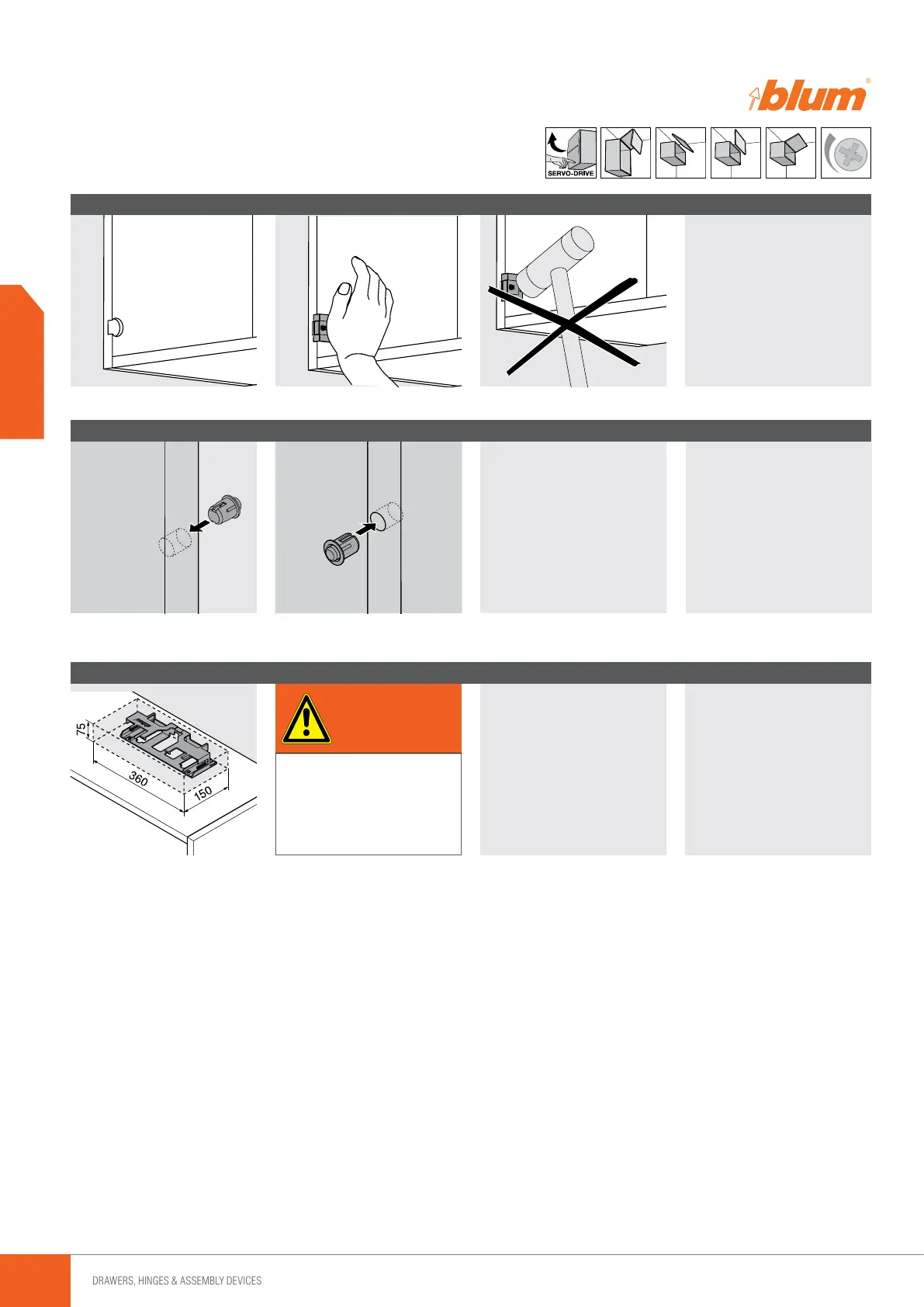

AVENTOS HF, HS, HL, HK
Assembly, removal and adjustment – SERVO-DRIVE
SERVO-DRIVE switch
Assembly
Blum distance bumper
Installation in the front Aluminium frame: installation in the
cabinet side
Insert Blum distance bumper (do
not glue)
The Blum distance bumper may not
touch the SERVO-DRIVE-switch
Space requirement and safety distance
WARNING
A safety distance of 30 mm must
be maintained for air circulation
(see graphic); otherwise, there is
a risk that the Blum transformer
could overheat
