AVENTOS HF, HS, HL, HK

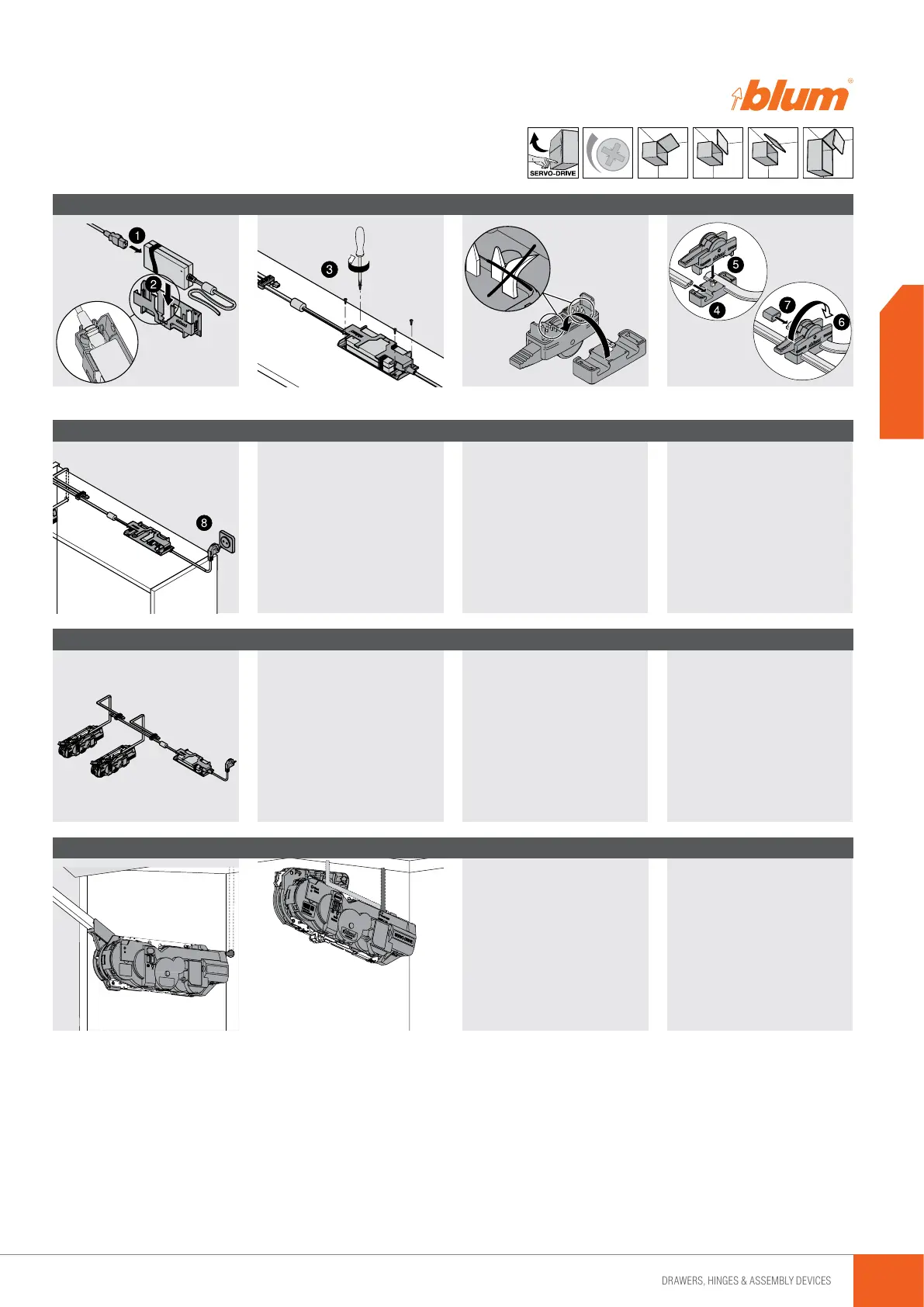

Assembly, removal and adjustment – SERVO-DRIVE
Blum transformer 72 W
Do not damage piercing tips
Blum transformer 72 W
Cable diagram
Cabling
Back (recommended)
Cabinet front edge to centre of hole
drilling:
HF: 167 mm
HS: 69 and/or 167 mm
HL: 74.5 and/or 167 mm
HK: 167 mm
Top (optional)

BLUM AVENTOS HL Specifications

General

Category	Lift system
Cabinet width range	Up to 1800 mm
BLUMOTION	Yes
SERVO-DRIVE	Optional
Application	Lift system for wall cabinets
Cabinet height range	300 mm to 580 mm
Motion technology	BLUMOTION
Material	Steel
Adjustment	3-dimensional adjustment
Opening Angle Stop	Optional
Mounting	Screw-on system
