BLUM AVENTOS HL Quick Guide

Lift & Flap Systems
DRAWERS, HINGES & ASSEMBLY DEVICES
C.44
Drawers, Hinges & Assembly Devices
C
Dimension data and specifications may change without notification.
AVENTOS HF, HS, HL, HK

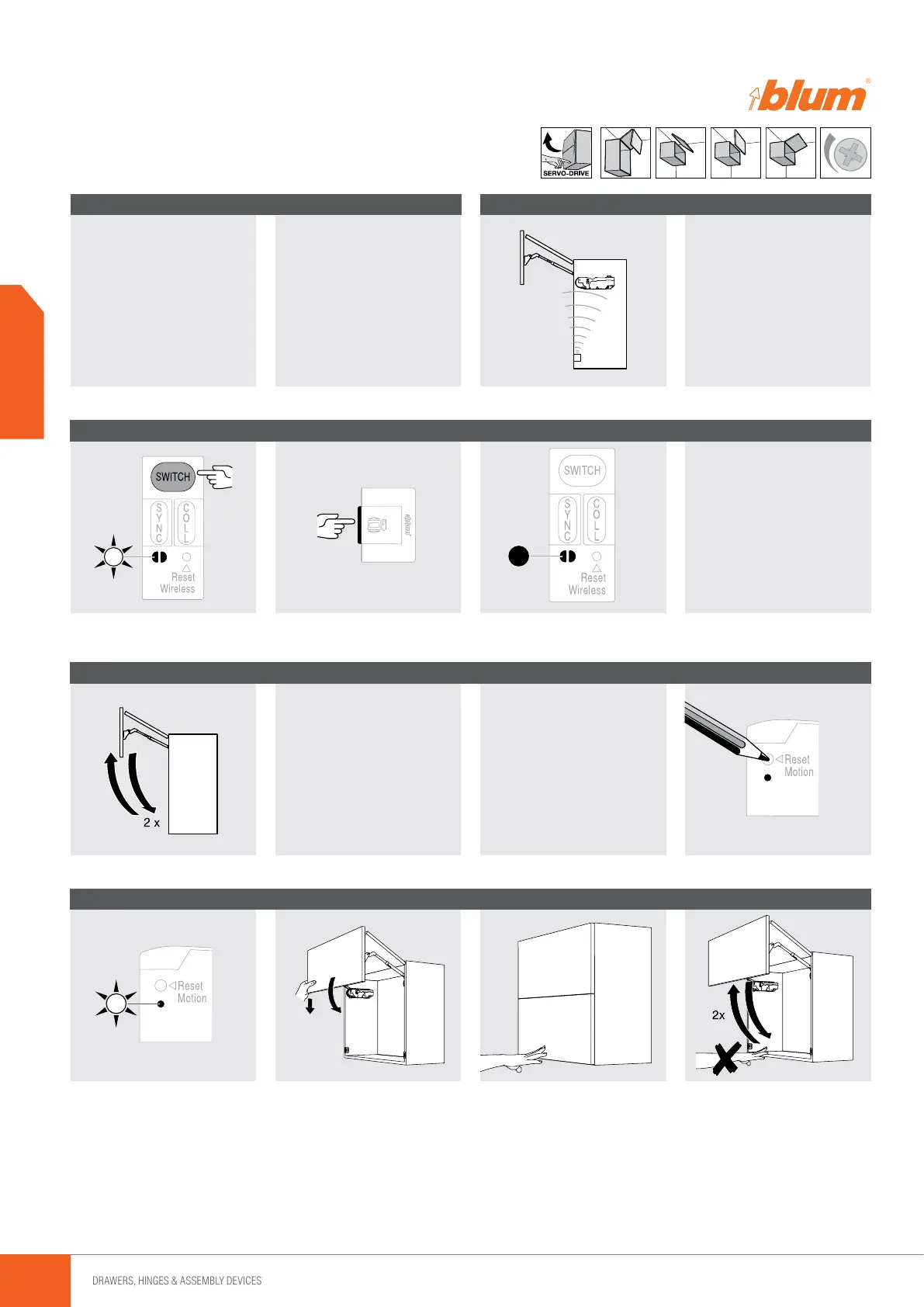

Assembly, removal and adjustment – SERVO-DRIVE
Start-up SERVO-DRIVE switch
Please see the installation
instructions or go to www.blum.com
for more details about start-up
Activation
Setting up the wireless connection
between the SERVO-DRIVE switch
and the drive unit. A SERVO-DRIVE
switch can only be assigned to one
unit. All switches must be activated
from the reference run
SERVO-DRIVE switch
Press the <Switch> button until the
LED flashes
Press the SERVO-DRIVE switch until the
LED lights up continuously
Reference run
Operation
The drive unit recognises the
required parameters using the
reference run
Note:
The settings for the lift mechanism,
gaps or lever as well as the assembly
of the opening angle stop must take
place before the reference run.
If required reset the reference run =
“Reset Motion”
Min. 10 s
Reference run
Reference run is required: LED flashes Front opens and closes 2 times
automatically – the process should not
be interrupted or stopped
Close the front manually Press on front: the reference run starts
automatically

BLUM AVENTOS HL Specifications

General

Category	Lift system
Cabinet width range	Up to 1800 mm
BLUMOTION	Yes
SERVO-DRIVE	Optional
Application	Lift system for wall cabinets
Cabinet height range	300 mm to 580 mm
Motion technology	BLUMOTION
Material	Steel
Adjustment	3-dimensional adjustment
Opening Angle Stop	Optional
Mounting	Screw-on system
