BLUM IF59-A2 User Manual

V3A | 08/2018
32
© by Blum-Novotest
Setup radio system
5.1 Pairing procedure via SET-key (manual pairing)
 IF59-A2, DIP switch 2:
 Touch probe: Standby-Mode
IF59-A2: Standby-Mode
RC66:connected with IF59-A2
 Magnetic pin

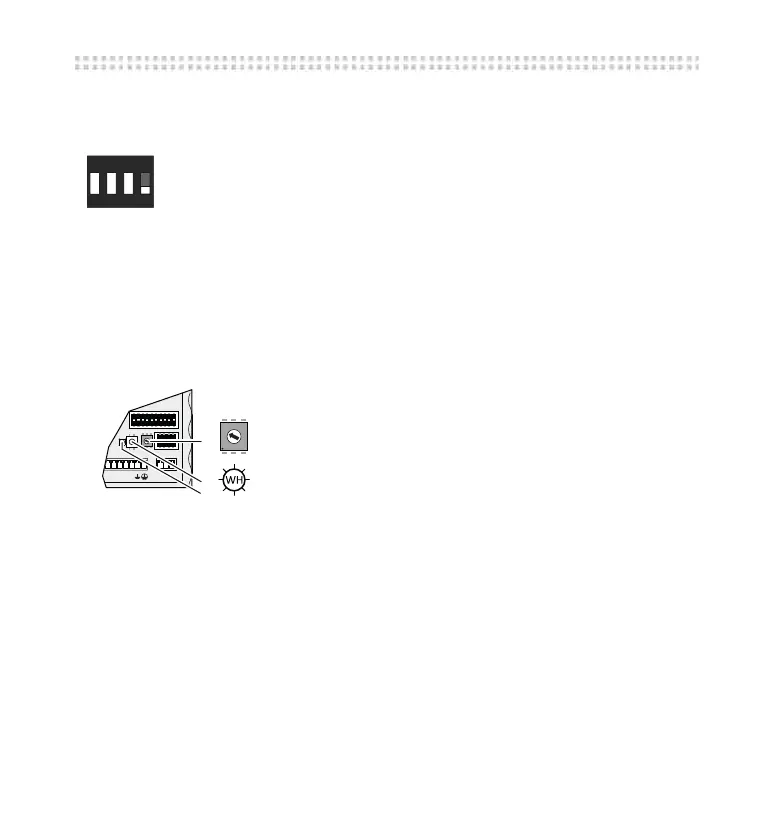

1. Turn coding switch to requested probe assignment.
2. Actuate SET-key on IF59-A2, until LED SET flashes white.
3. Select probe which should be paired:
Hold the magnetic pin on SET, until the LED Status shines blue (approx. 2 sec.).
When the LED Status changes to green, the probe is paired and returns into stand-
by mode. Further probes in the receiving range of the RC66 are not affected by a
pairing procedure.
1 2 3 4
ON
4 5 6 7 8 9 10
TxD RxD GND
V24
X3
1 2 3
YE GY PK BU VT
1 2 3 4 5 6 7 8 9 10
ON
1 2 3 4
ON
1
2
3
4
5
6
7
8
9
0
Set
3
4
5
1
2
3
4
5
6
7
8
9
0
