17
E

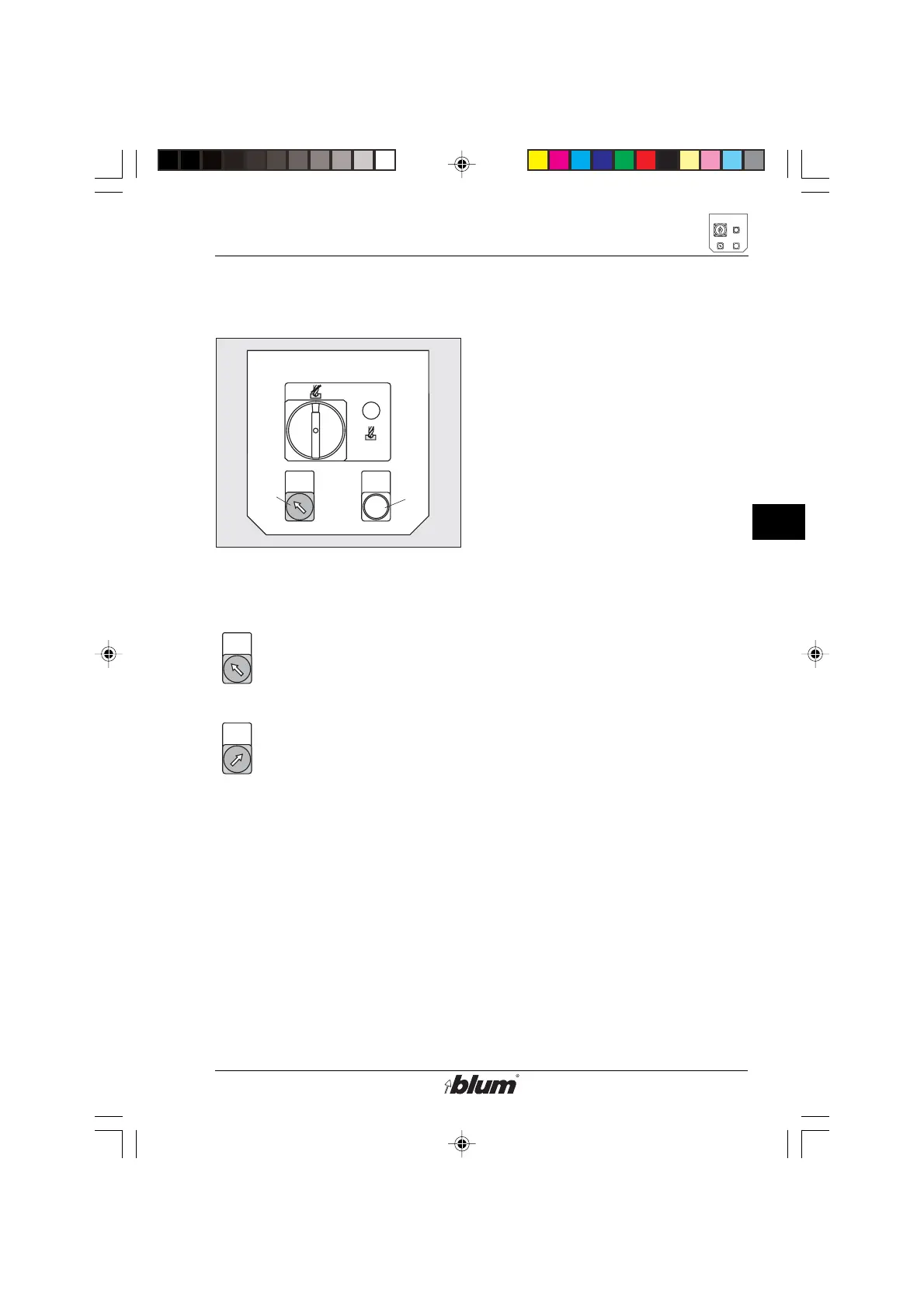

Desciption of operating panel
Auto
off
Auto
off
E3
set up
drill/press
Auto
off
drill/press
stroke
E2
5. Hold-down switch (E3)
Pos. Hold-down clamps on
Pressing the drill / press
strok
e button (E2) causes the
hold-down clamps to e
xtend
automatically
.
Pos. Hold-do
wn clamps off
The clamps remain retr
acted
if you press t
he drill / press
strok
e button (E2).
%$0,1,35(66)$,G1US
$0
17
19
Table of Contents
Table of Contents
2
A How to Use this Manual
3
Read before Operation
4
Safety Decal Description
4
Safety Instructions
4
Safety Rules
5
Designation of Parts
7
Unpacking and Assembly
11
D Initial Set-Up of MINIPRESS
11
Assembling the Worktable
13
Mounting the Box Support (D13)
13
Connection to Compressed Air System
14
Dust Extraction
15
Electrical Connection
15
Designation of Operating Elements
16
Main Switch
16
Set up Position
16
Description of Operating Panel
16
Checking the Motor Rotation
17
Hold-Down Switch
18
Drilling of Hinge Pattern
19
Necessary Parts
19
Drill-Bit Length
19
Select Drill Pattern
20
Install Drill Bits
20
Correcting Drilling Depth Adjustment
21
Check Drilling Depth Adjustment
21
Drilling Depth Stop
22
Mounting the Drilling Depth Stops
22
Adjusting the Stroke Speed
22
Checking the Pneumatic Brake
23
Adjusting the Pneumatic Brake
23
Hardwood
23
Softwood
23
Fencing System (D4) Adjustments
24
Fixed Positions of the Stop System
24
Setting the Swivel Stops
25
Adjust Hold down Clamps
26
Hinge Insertion
27
Drilling
28
Installation of Wing Mounting Plates with System Screws
30
Change Drill Pattern
30
Setting the Fencing System
31
Drilling of Line Patterns
33
Service and Maintenance
36
Replacing a Damaged Clutch
37
Replacing the Operation Indicator Lamp
38
Fault During Drilling
39
Troubleshooting - What to Do, if
39
Functional Fault
44
Appendix
47
Do-It-Yourself Worktable
47
Áwarranty
48
Technical Data
49
General Data
49
Maximum Thickness of Workpiece
49
Maximum Drilling Distance
49
Circuit Diagram
54
Pneumatic Diagram
55
