Installation of wing mounting plates
!
F15
F16
SY
16
D5
D6
L
16
16
D6
16
L
16mm

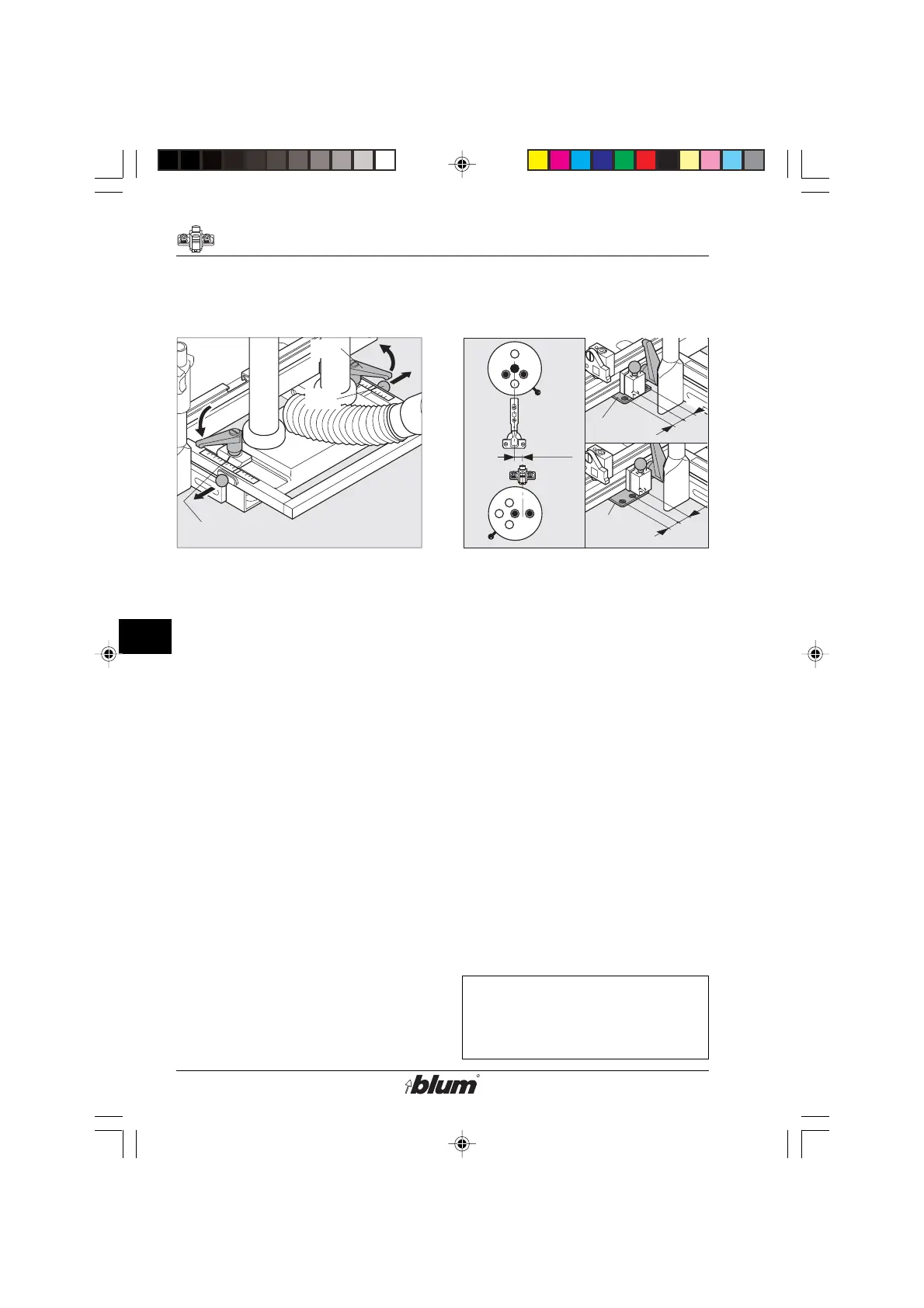

7. Setting the fencing system (D4)
• Always place operation mode switch
to set up position and disconnect the
machine from it’s electrical source
(unplugged) before performing any
work on the drill heads, fences,
stops, or pneumatic break.
• Release both clamping levers (F15).
• Pull out both fixing pins (F16) and
set the stop system (D4) to SY.
• Firmly tighten both clamping levers
(F15).
This fixed setting provides for a
drilling distance of 1-7/16“ (37 mm).
8. Setting the swivel stops (D7)
• Always place operation mode switch
to set up position and disconnect the
machine from it’s electrical source
(unplugged) before performing any
work on the drill heads, fences,
stops, or pneumatic break.
a) If the lower edge of the door is to be
flush with the lower edge of the
cabinet, only the base ruler (D2)
needs to be repositioned.
Repositioning the base ruler:
• Release the two clamping levers
(D3) which hold the ruler in place.
• Lift up the fixing pin (D5) and move
the ruler (D2) in the direction of the
outer drill bit until the fixing pin (D5)
locks into the outer drill hole of the
indexing plate (D6).
• Firmly tighten clamping levers (D3).
Note:
This step compensates for
the 0-point offset of the wing
mounting plate (see illus. 8).
