Hinge insertion
R
R
E1
E2
E3
F9
D7
A
F8

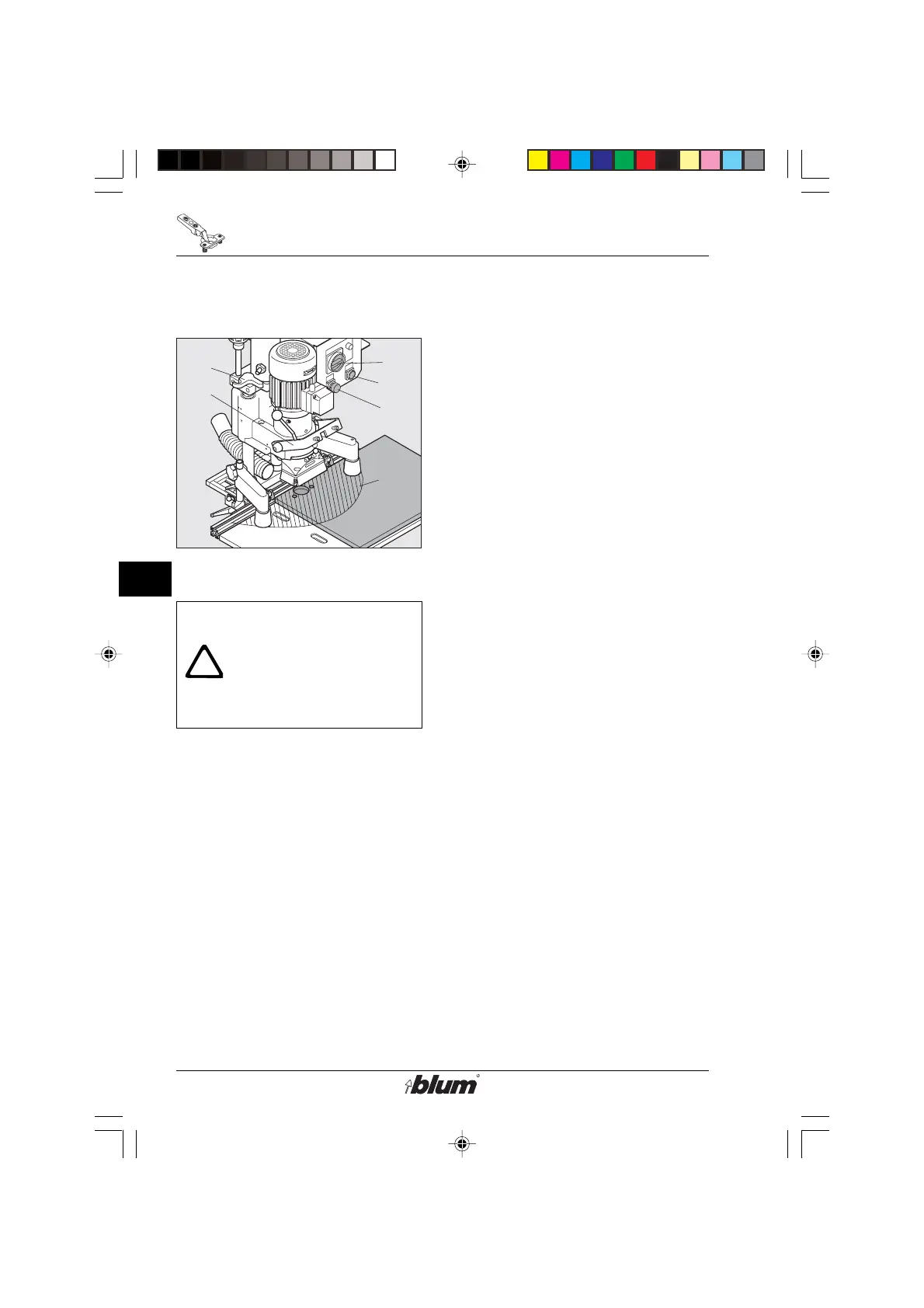

19. Hinge insertion
WARNING!
To avoid serious injury stay
clear of drilling area and all
pinch points (zone A)
except the workpiece.
• When inserting hinge, keep one
hand on the drill / press stroke
button (E2) and the other hand on
the swing arm (F8) or on the edge
of the door nearest you until the
hinge is totally pressed in (outside
of zone A).
• Release drill / press stroke button.
• Move swing arm (F8) up.
• Release the hold-down clamps by
briefly touching the hold-down
switch (E3).
