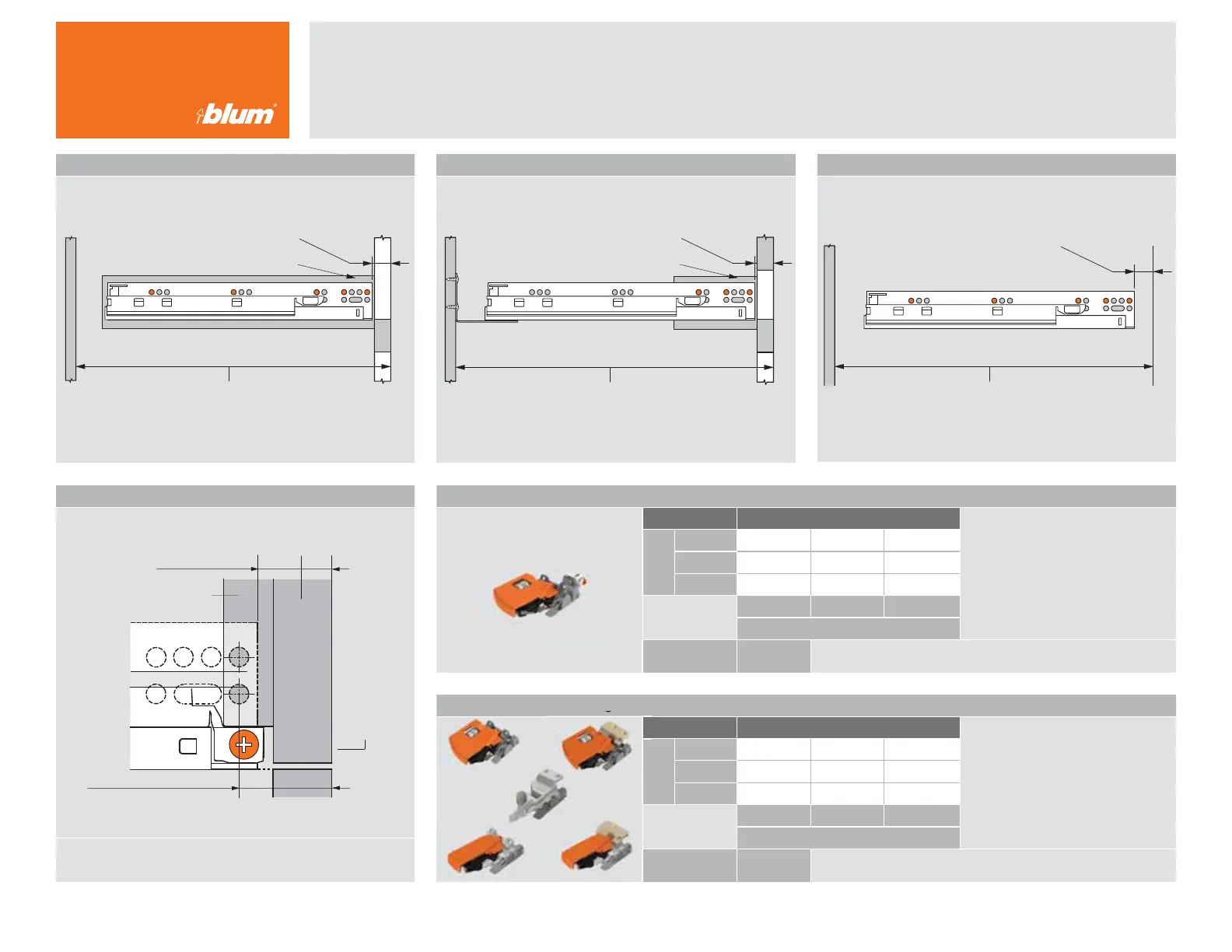

BLUM TANDEM plus BLUMOTION 563F Installation Instructions

TANDEM plus BLUMOTION
Subject to technical modifications without notice. © 2015 Blum Inc.
Dimensions in millimeters (inch equivalents as noted)
5
Inset application
Face frame application – partial blockout
Side view
inside cabinet depth range
minimum
=
runner length
+
setback
+
6 (1/4")
maximum with bracket
=
runner length
+
setback
+
48 (1-7/8")
Face frame application – complete blockout
Side view
Runner setback (see table)
Trial recommended
Blocking behind frame
inside cabinet depth
minimum
=
runner length
+
setback
+
6 (1/4")
Setback information
Side view
NOTE:
For mounting hole position add 7 (9/32") to
runner setback
Runner setback when using depth adjustable locking device (T51.1901.PS)
563/569 F/A Runner setback
▬
Setbacks in this table recess the
face of the drawer front inside of
the cabinet 1 (1/32")
▬
The depth adjustment can then
be used to move the drawer
front out to its desired position,
2.5 (3/32") out adjustment only
Sub-front
thickness
13 (1/2")
17 (21/32") 20 (25/32") 23 (29/32")
16 (5/8")
20 (25/32") 23 (29/32") 26 (1-1/32")
19 (3/4")
23 (29/32") 26 (1-1/32") 29 (1-5/32")
16 (5/8") 19 (3/4") 22 (7/8")
Drawer front thickness
Calculating
runner setback
563/569 F/A Sub-front thickness
+
drawer front thickness minus 12 (15/32")
Runner setback when using all other locking devices
563/569 F/A Runner setback
▬
Setbacks in this table set the
face of the drawer front flush
with the face of the cabinet
▬
If a depth adjustable locking
device is needed, please see
the locking device and table
above
Sub-front
thickness
13 (1/2")
14.5 (9/16") 17.5 (11/16") 20.5 (13/16")
16 (5/8")
17.5 (11/16") 20.5 (13/16") 23.5 (15/16")
19 (3/4")
20.5 (13/16") 23.5 (15/16") 26.5 (1-1/32")
16 (5/8") 19 (3/4") 22 (7/8")
Drawer front thickness
Calculating
runner setback
563/569 F/A Sub-front thickness
+
drawer front thickness minus 14.5 (9/16")
g
b front
NOTE: Runner cannot be
mounted below opening
Runner setback
Mounting hole position
Drawer front
Drawer sub-front
Panel application
Side view
Runner setback (see table)
Trial recommended
inside cabinet depth
minimum
=
runner length
+
setback
+
6 (1/4")
Runner setback (see table)
Trial recommended
Blocking behind frame
