BLX v100 positioner - Installation Instructions for Linear Actuators; Double Acting; Single Acting

G
H
I
J
K
L
N
M
Signal opens Signal closes

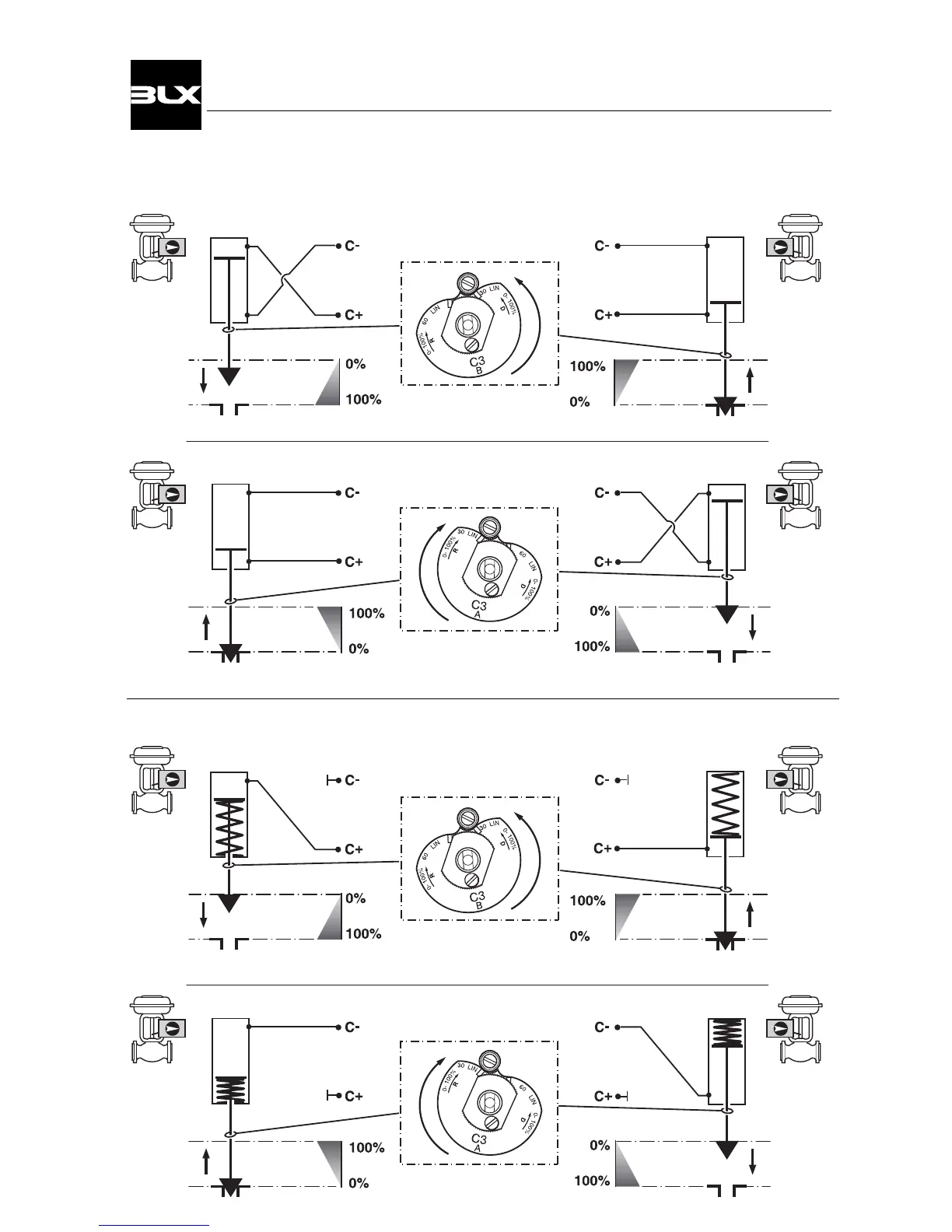

2.4 Installation instructions for linear actuators
2.4.1 Double acting
Direct (CCW)
Signal closes Signal opens
Reverse (CW)
2.4.2 Single acting
Spring opens Spring closes
Direct (CCW)
Spring opens Spring closes
Reverse (CW)
Signal opens Signal closes
Signal closes Signal opens
8
V100 Positioner
