A

B

D

C

E

F

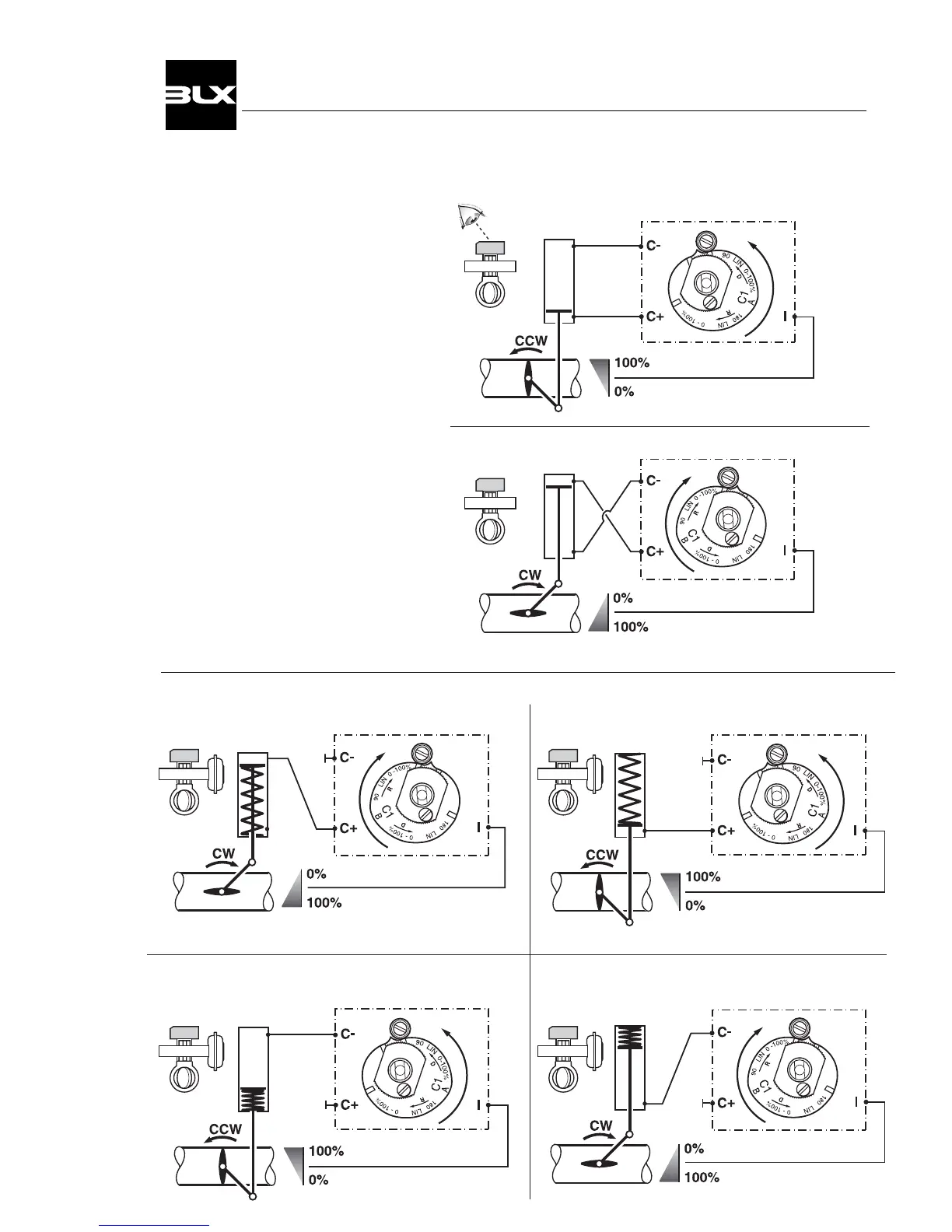

2.3 Installation instructions for rotary actuators

2.3.2 Single acting

2.3.1 Double acting

Signal closes

Signal opens

Direct (CCW)

Reverse (CW)

Spring closes Direct (CCW)Spring opens Reverse (CW)

Signal closes

Signal opens

Spring opens Direct (CCW) Spring closes Reverse (CW)

Signal opens

Signal closes

7

V100 Positioner
