Service Manual for RESmart
®
BPAP V1.1
7/18

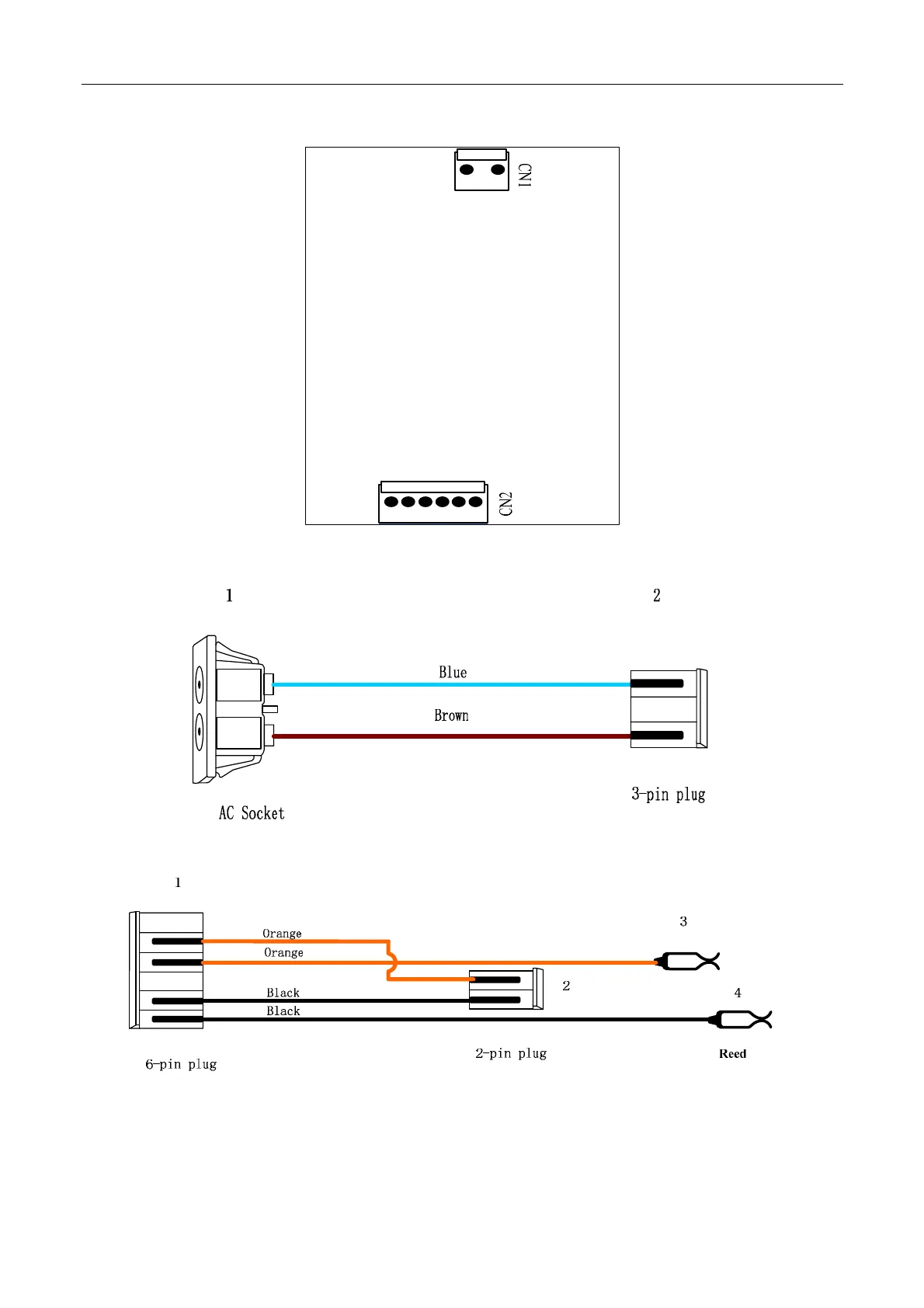

Fig. C – Power PCBA (front side) Sockets figuration
Fig. D – Wire connectin
g on power PCBA
Fig. E – Power supply connecting
