Service Manual for RESmart
®
BPAP V1.1
6/18
Appendices
Appendix A:
Device Configuration
1. Main device
Fig.

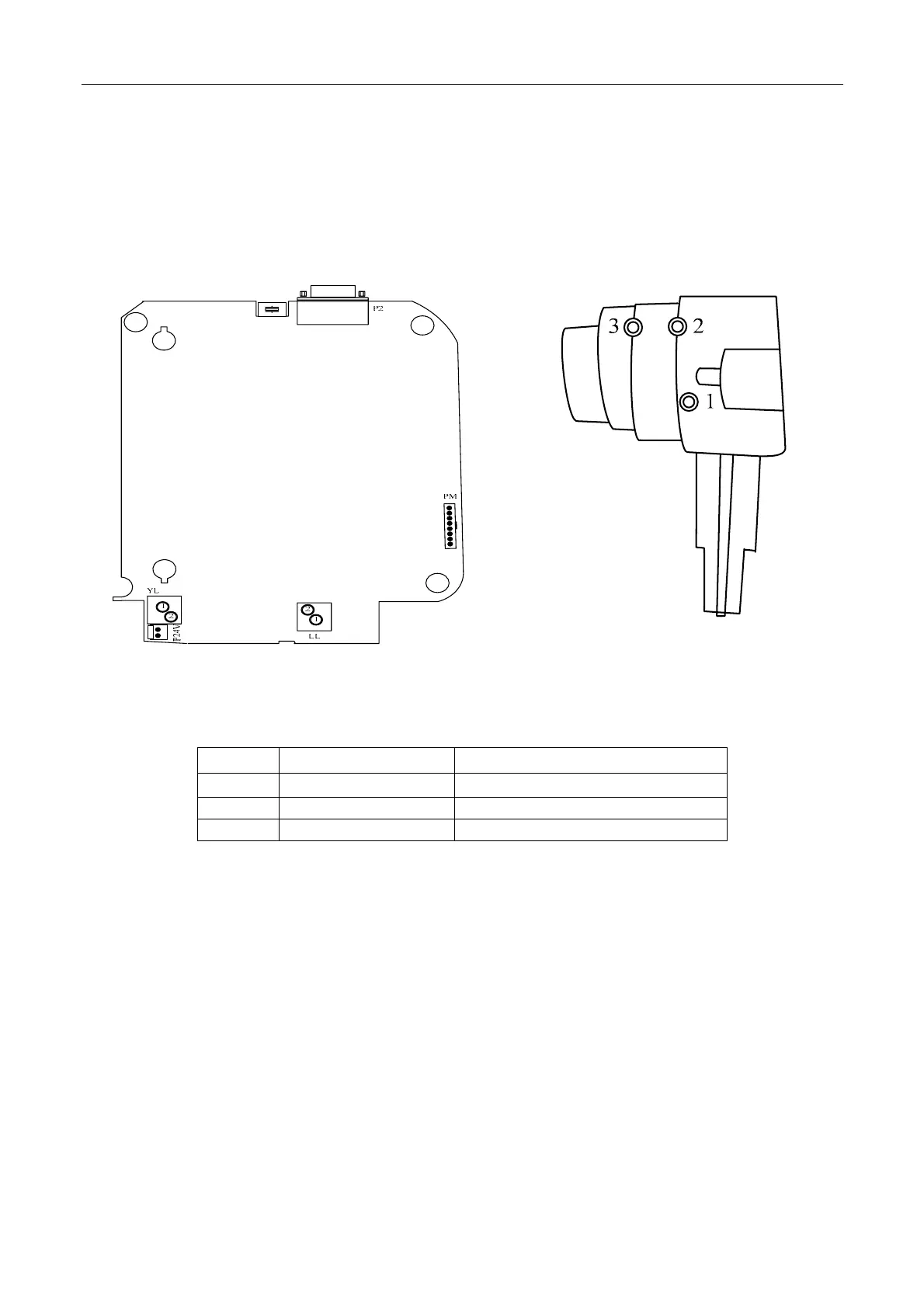

A - Main board (backside) Fig. B – Outlet (leftside)
Hole #1, 2 and 3 in Fig. B, connect to sensor YL and LL via silicon rubber canal. Specified in Table 1:
Fig. B Fig. A Specification of canal
1 Hole #1 on sensor YL
φ2mm, Φ4mm, L12cm
2 Hole #2 on sensor LL
φ2mm, Φ4mm, L12cm
3 Hole #1 on sensor LL
φ2mm, Φ4mm, L8cm
Table 1
