Service Manual for RESmart
®
BPAP V1.1
13/18
2. Device Outside
S/N
Assembly

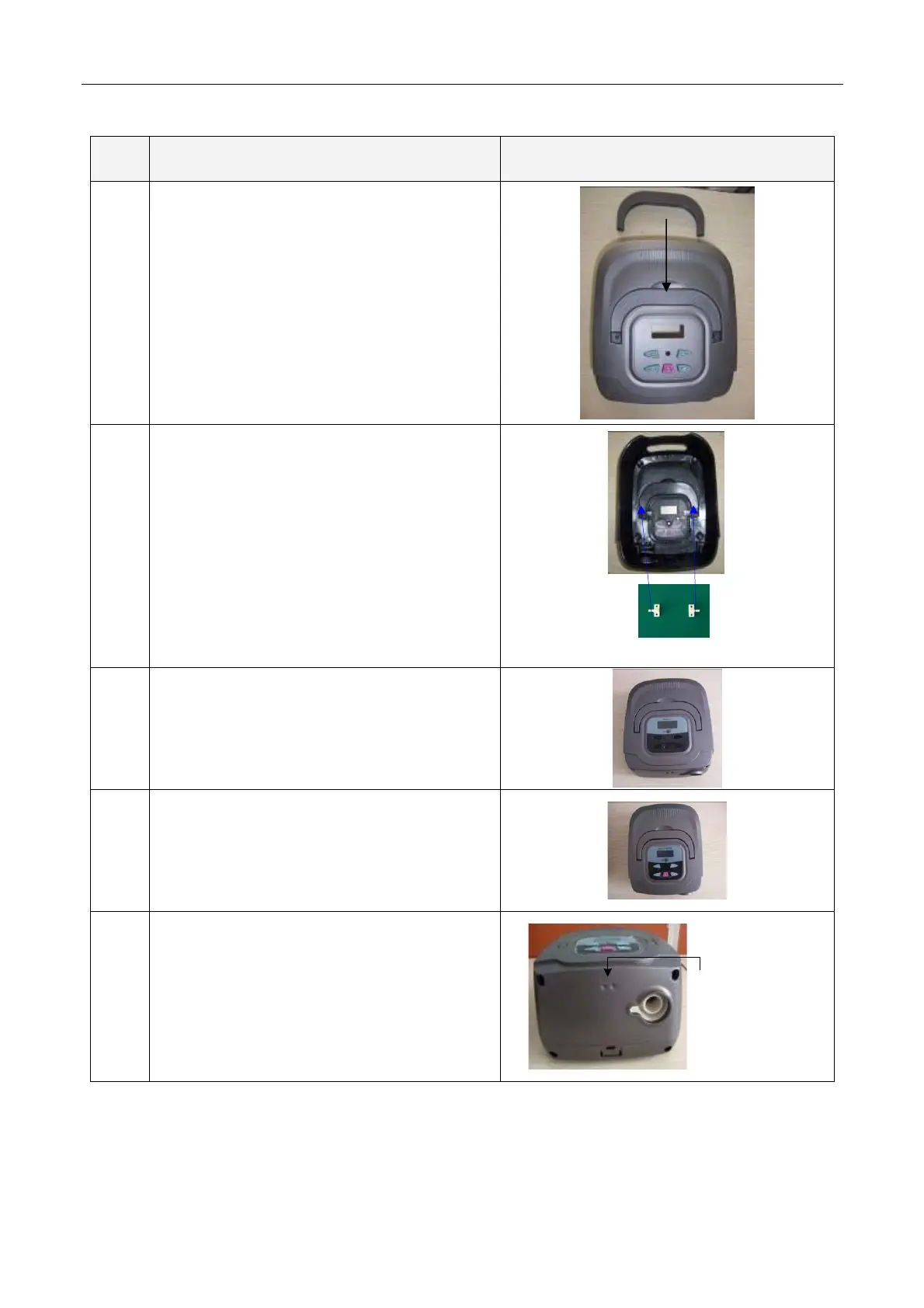

Figure
14
Put handle in the socket on shield cover.
15
Assembly handle fixing to handle and fix by
screw (4×3mm*8mm).
16
Assembly and fix the panel.
17
Put on the key button.
18
Assembly the infrared window, and put the
shield cover on the bottom, adjust the position
of outlet and make sure it is clamped in the
right socket.
Infrared window
