Components Illumination
1. Device Inside
S/N

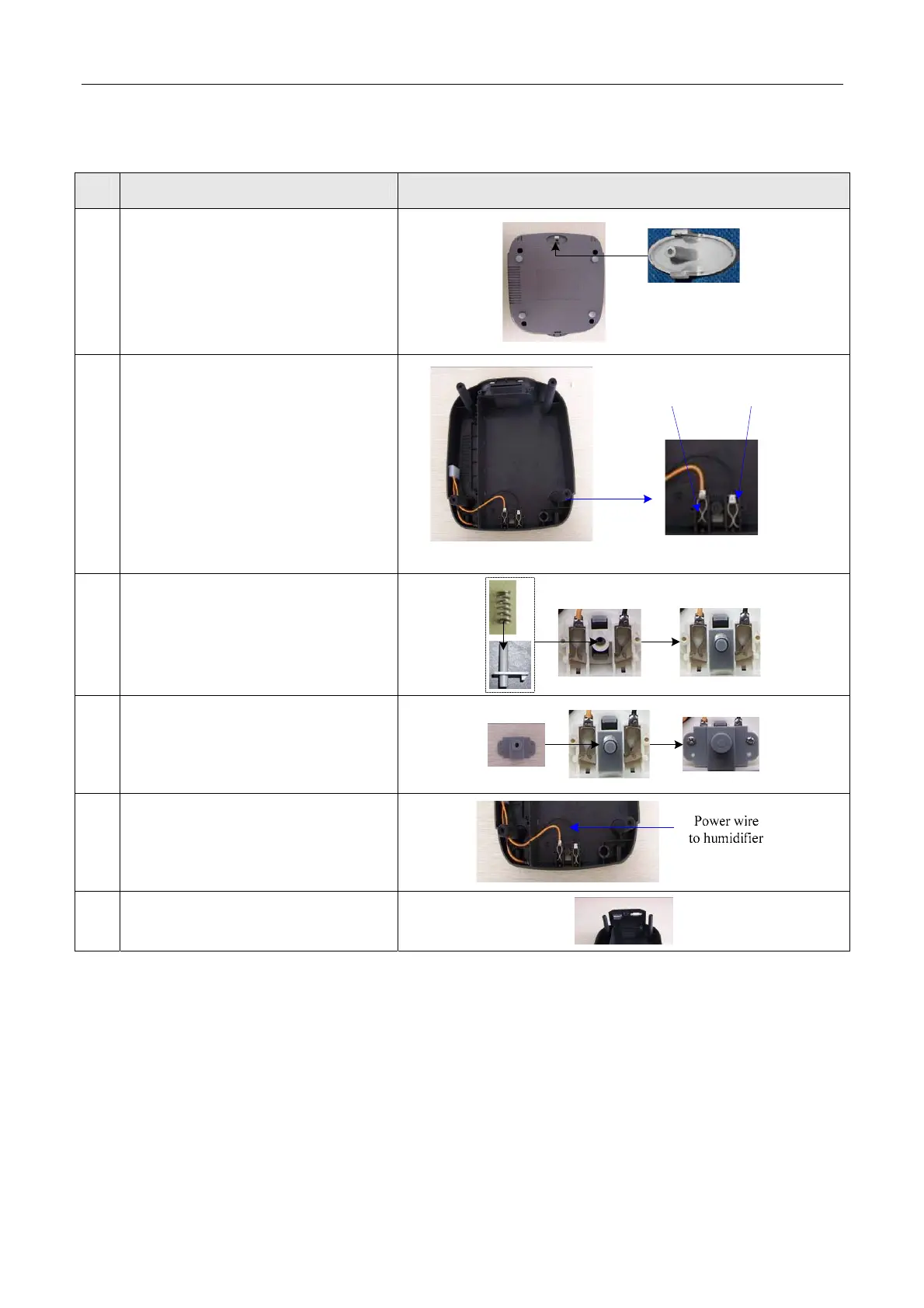

Assembly
Figure
1
Insert humidifier locker on the shield
bottom.
2
Insert humidifier power supply reed
on the shield bottom as per Fig. E
and F.
Orange
Black
3
Assembly the humidifier locker and
button spring.
4
Put fixing on the spring and fix by
screw (2×3mm*8mm).
5
Put power wire.
6
Assembly the shield back on the
bottom, fix by screw (2×
3mm*8mm).
