BMC RESmart BPAP - Humidifier

Service Manual for RESmart
®
BPAP V1.1
8/18

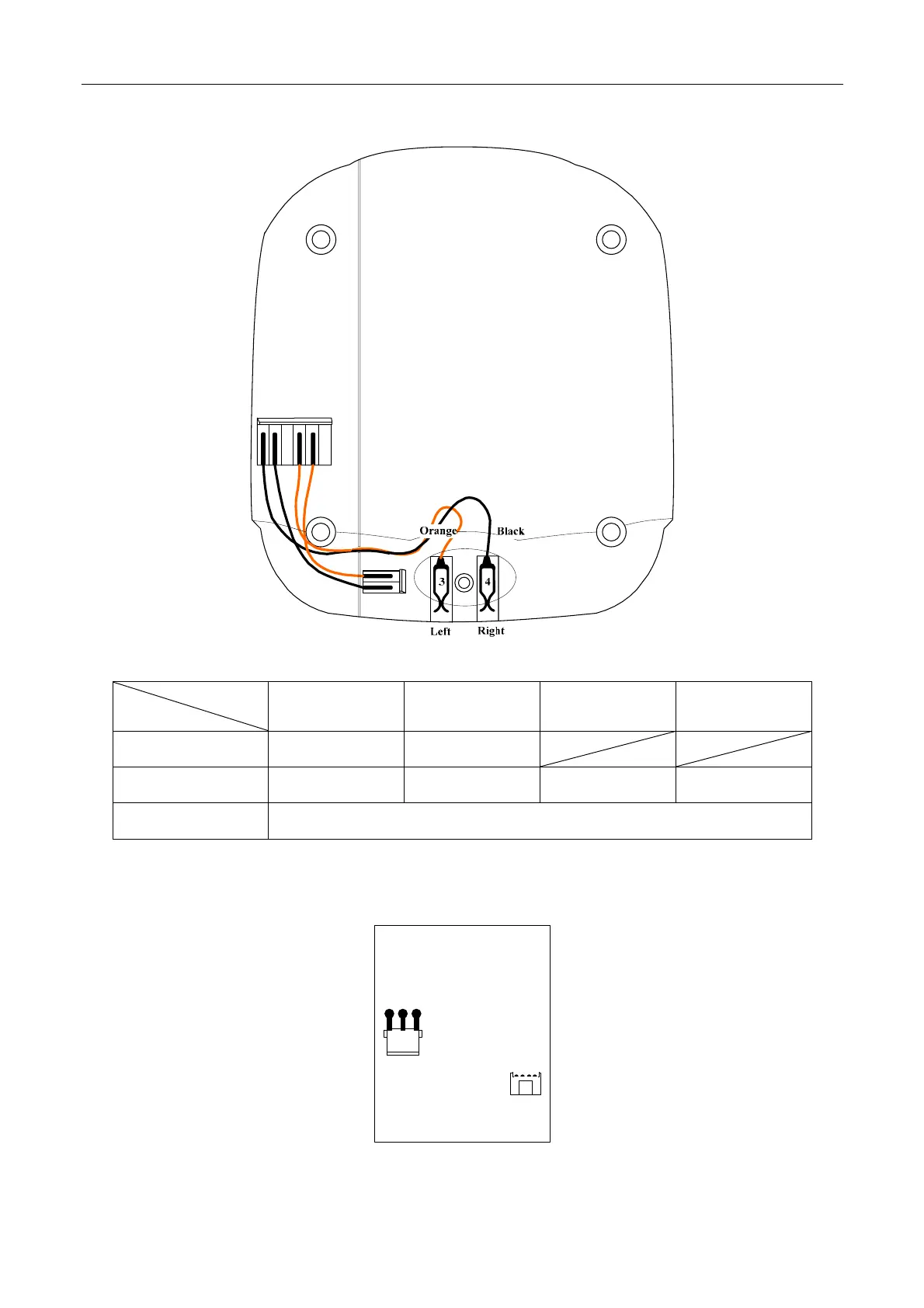

Fig. F – Power supply to humidifier
Connecting relationship:
Part
Fig.
1 2 3 4
D Back of device Fig. C: CN1
E Fig. C: CN2 Fig. A: P24 Fig. F: Left Fig. F: Right
Blower 8-pin plug Fig. A: PM
Table 2
2. Humidifier
Fig. G – Humidifier PCBA
(back side
)
P1
P2
