Service Manual for RESmart
®
BPAP V1.1
11/18
7

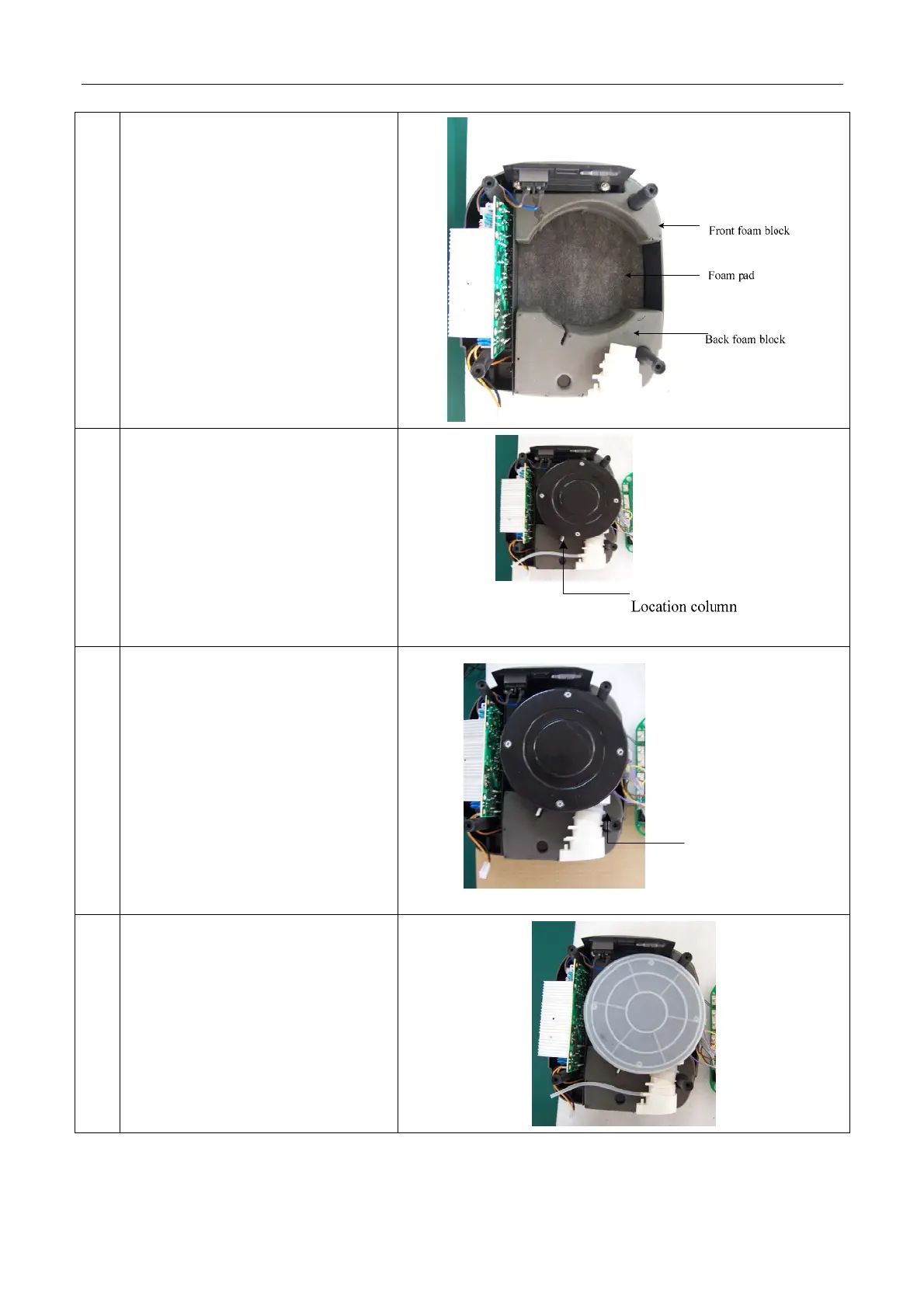

Assembly the foam pad (non-woven
side up), the front and back foam
blocks of the blower unit in the shied
bottom.
8
Align the location column of blower
unit to the location port in the front
block, Place the blower unit right
between the front and back foam
blocks in the shield bottom and lay it
down till the bottom.
9
Clean the air outlet of the blower
and insert it into the fixing hole, and
set the protruding tube of the blower
unit into the air outlet. It is required
that the top of blower tube stand up
against the bottom of air outlet.
Blower tube
standing up against
outlet bottom
10
Fit silicon rubber cap onto the top
surface of blower unit.
