PHERAstar FS Operating Manual BMG LABTECH
16/26 0471B0001A 2009-09-22
4.5.3 Time-Resolved Fluorescence Optic Module, FRET and TR-FRET, for example HTRF
®
The time-resolved fluorescence optic module (figure 20) is optimized for HTRF
®
. The beam splitters, dichoic
mirror, as well as the filters, are all specially selected to give the very best performance.

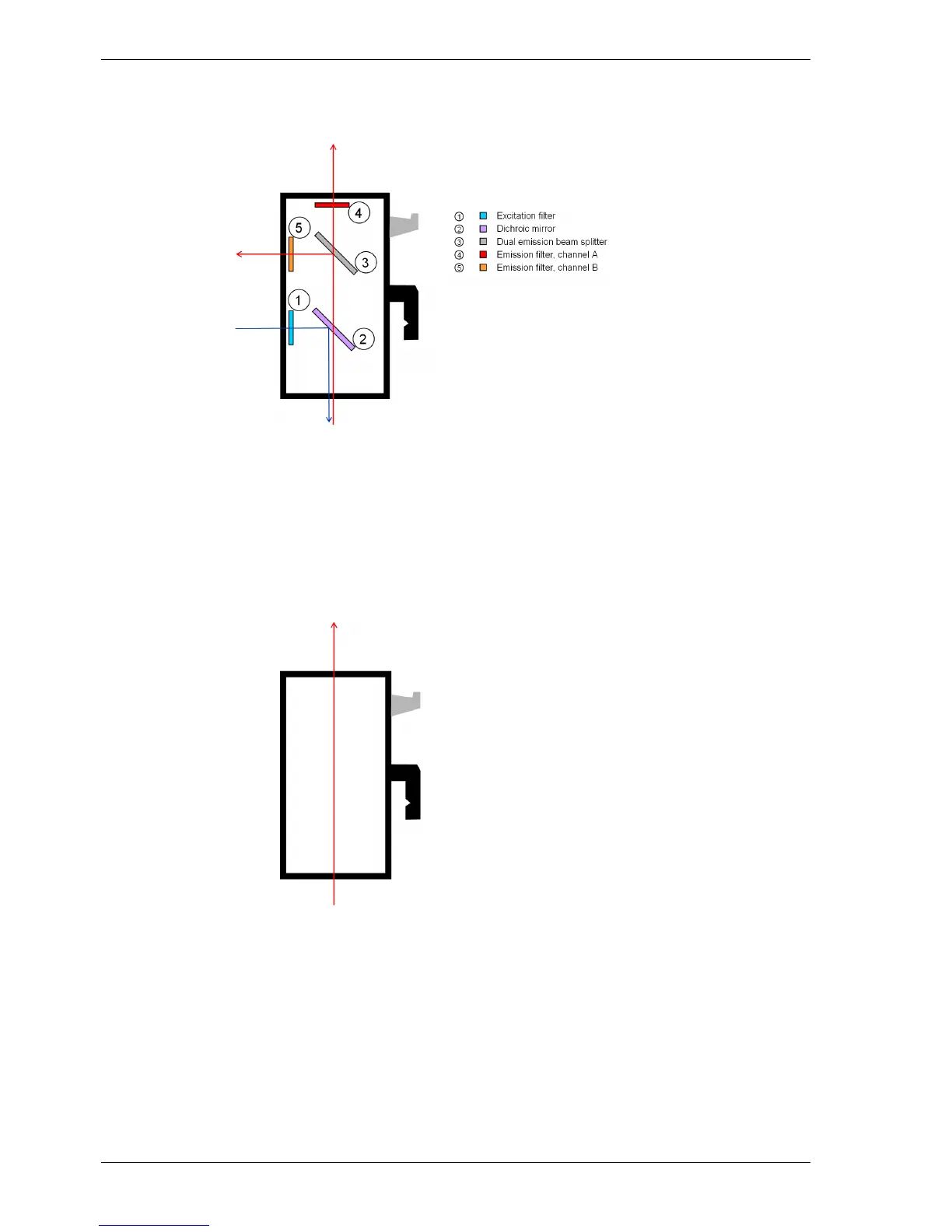

Figure 20: Optic module for time-resolved
fluorescence, for example HTRF
®
4.5.4 Luminescence Optic Modules
Luminescence assays are mostly towards light of unspecific wavelength and therefore the default optic
module is an empty module. The empty module (figure 21) still needs to be there because it limits reflection
and scatter.
Figure 21: Optic module for luminescence, wavelength not specified.
The LUM+ Module is intended for microplate formats up to 384 wells.
