BMG LABTECH PHERAstar FS Operating Manual
2009-09-22 0471B0001A 7/26
2 Overview
2.1 Front and Right Side of PHERAstar FS

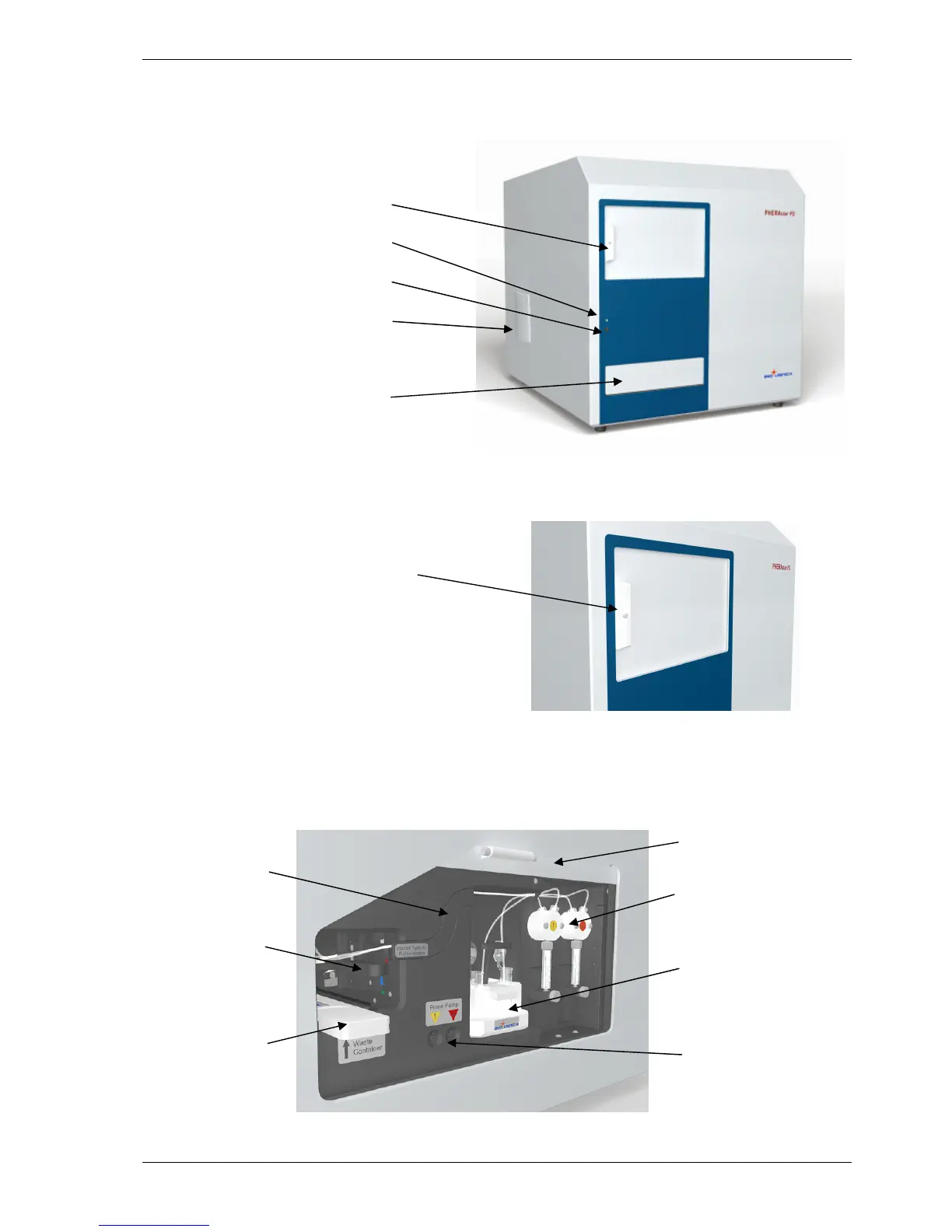

Figure 1: PHERAstar FS
Figure 2: Optic module door
Figure 3: Right side of the PHERAstar FS, showing the reagent injection system
Press the button on the
grip and the optic module
door can be slid aside.
Service lid for laser cartridge
Plate carrier in/out button
Optic module door
Operating lamp
Plate carrier door
Sliding Door
Magnetic
Clamp
Reagent
Injectors
Priming
Buttons
Needle
Holder
Waste
Container
Holder for
Compound
Vessels
