BMPRO RVMaster - RVMasterController Operation and Setup; RVMasterController Component Identification; RVMasterController Control Panel Functions

9
q RVMASTERCONTROLLER TOUCHSCREEN
w BLUETOOTH
Appears only if the RVMasterController is paired to the RVMasterNode
e SETTINGS ICON
Access to the RVMaster App General Settings
r RETURN
Navigate to previous page
t MAIN SCREEN
Navigate to the RVMasterController’s tablet Android screen
y RECENT APPLICATIONS
Display a list of recently used/background applications on the tablet
u RESET PIN HOLE
To reset the RVMasterController. Reset the RVMasterController by inserting, for
example a paper clip, in the reset pin hole.
i CONTROL PANEL
To provide quick access to lights and motor operation while the RVMasterController is
starting up.

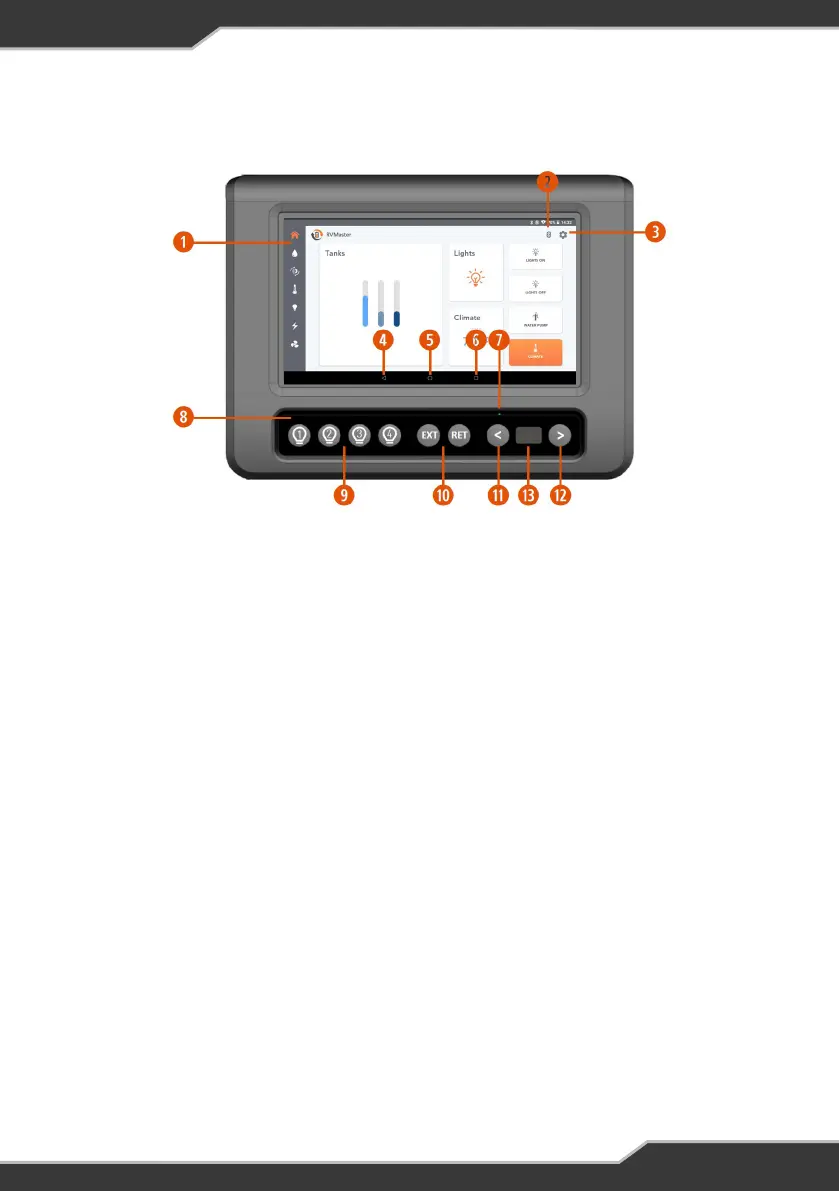

Figure 2: The RVMasterController
RVMasterController
DESCRIPTION OF PARTS
