1.5.4. HUD in AIR to AIR mode

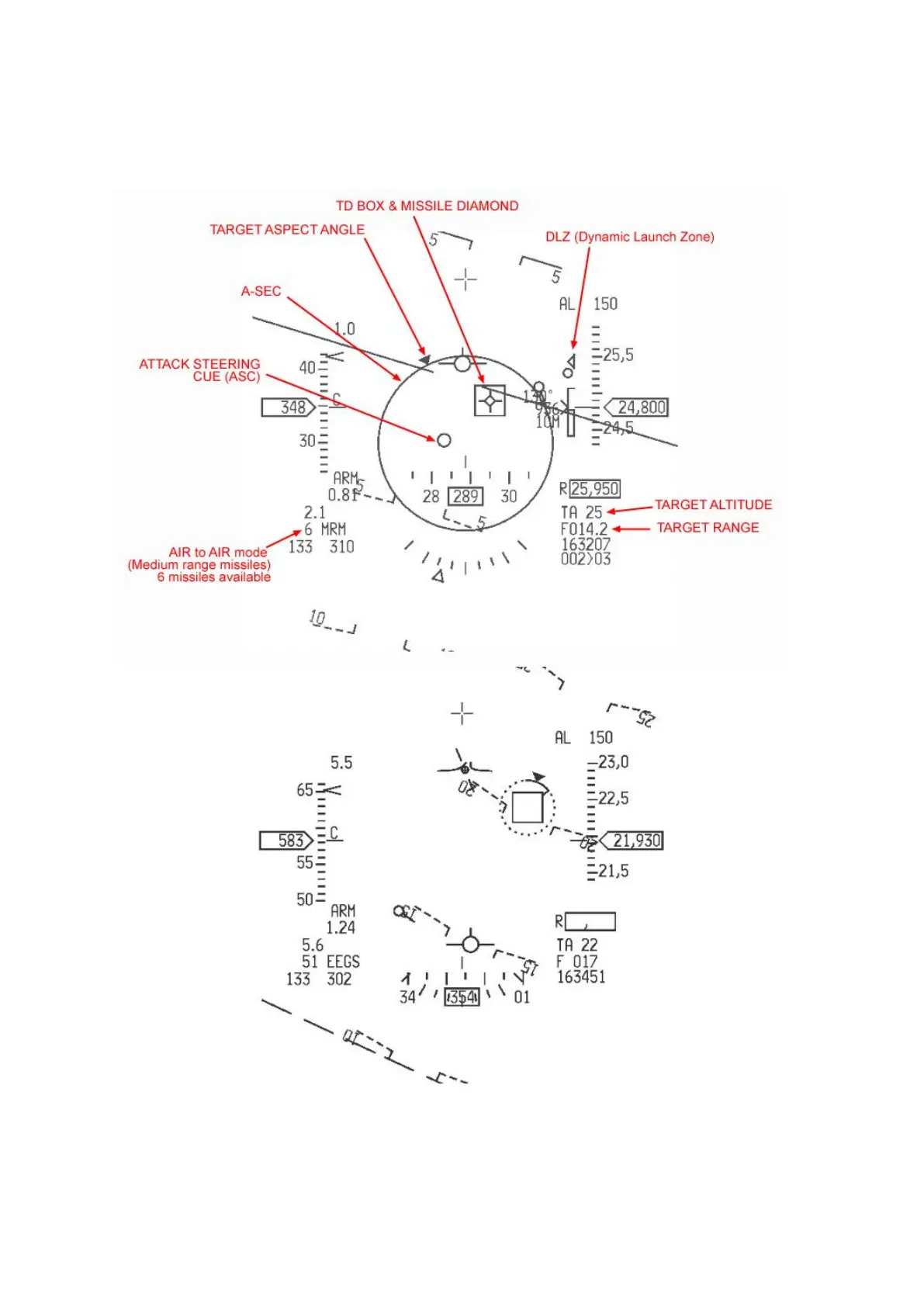

The HUD will display different information depending on the active weapon in A-A mode.
A-A weapon parameters are displayed in the HUD repeating the cues on the MFDs (usually A-A FCR).
In the image above the A-A gun has been selected in EEGS mode. Note the inverted attitude and the
radar altimeter which is blank.
