1.3 UP FRONT CONTROLS
The UFC is made up of a display called the Data Entry Display (DED) and a keyboard known as the
Integrated Control Panel (ICP).
Both work together to provide the pilot with an easy way to interface with the avionics system of the
aircraft. Every press on an ICP button opens a page or changes information on the DED. The DED
needs UFC power to work. Please note it will not turn on immediately at UFC power up (during ramp
start) but requires a few seconds for the display to come online.

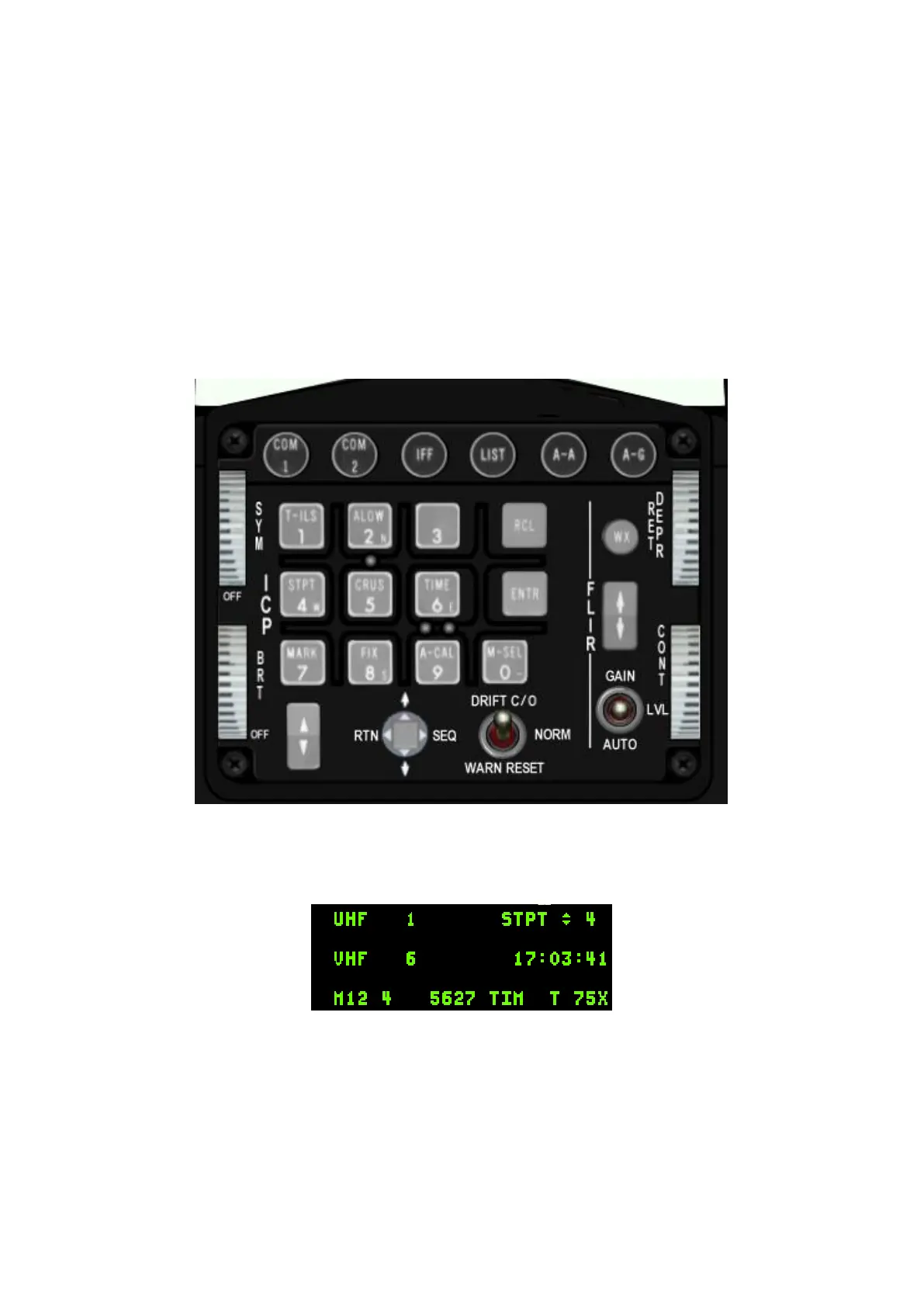

Fig1: The ICP
Fig 2: The DED
