Light source
Replacing bulbs for low-
beam and high-beam
headlight
Switch off operational readi-
ness.
Removing the side trim panel
( 106).
Remove the right side panel to
replace the bulb for the low-
beam headlight.
Remove the left side panel to
replace the bulb for the high-
beam headlight.

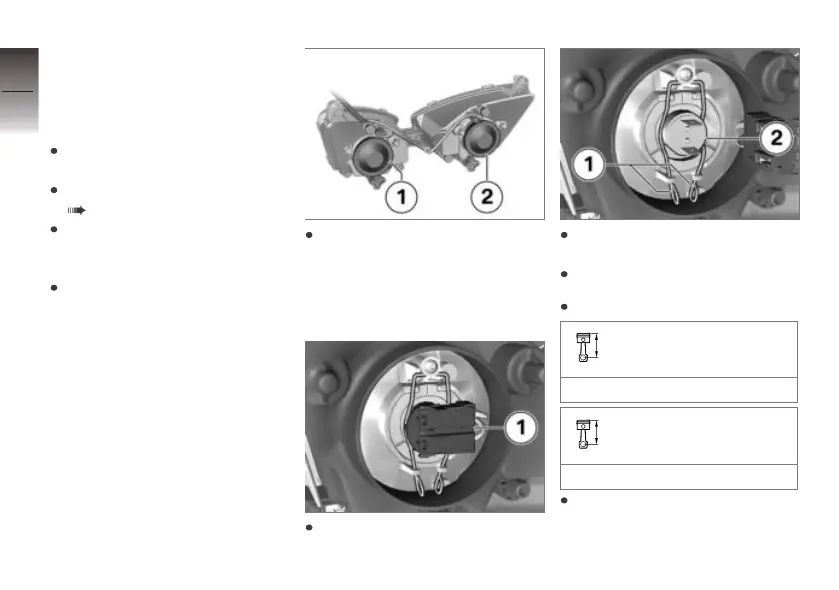

Disengage cover 1 to replace
the bulb for the high-beam
headlight; disengage cover 2
to replace the bulb for the low-
beam headlight.
Disconnect plug 1.
Disengage spring clip 1 from
the latches and swing it up.
Remove bulb 2.
Replace the defective bulb.
Bulbs for the low-beam
headlight
H7 / 12 V / 55 W
Bulb for high-beam
headlight
H7 / 12 V / 55 W
Hold the bulb by the base only,
in order to keep the glass free
of foreign matter.
