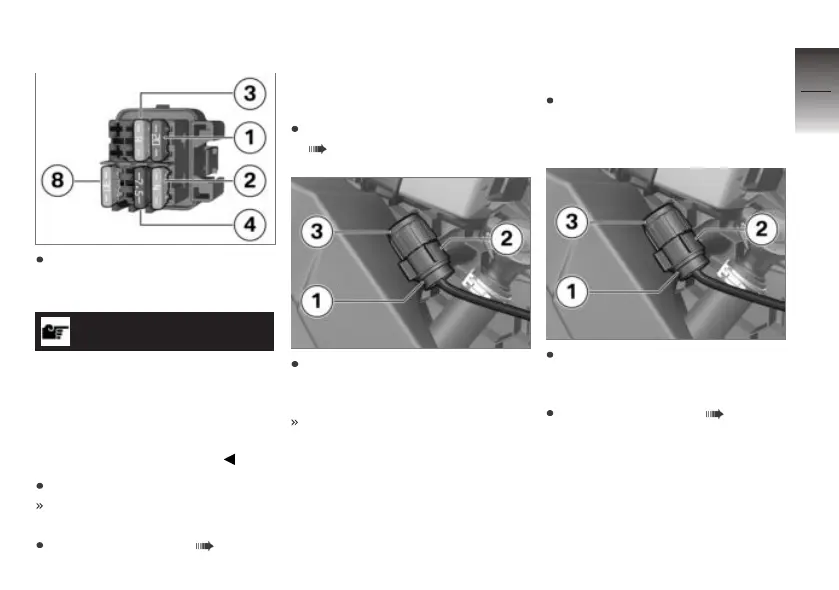

Installing fuse
Replace the defective fuse with
a fuse of the correct amperage
rating.
NOTICE
The fuse assignments and fuse
amperage ratings specified for
your motorcycle are listed in the
section entitled "Technical data".
The figures in the graphic corres-
pond to the fuse numbers.
Close the fuse cover.
The latch engages with an
audible click.
Installing side panel ( 107).
Diagnostic connector
Disengaging diagnostic
connector
Removing the side trim panel
( 106).
Unplug diagnostic connector 1
from the bracket 2 and remove
the protective cap 3.
The interface to the diagnosis
and information system can
be connected to diagnostic
connector 1.
Securing the diagnostic
connector
Disconnect the interface for
the diagnosis and information
system.
Screw on cap 3 and plug the
diagnostic connector 1 into the
bracket 2.
Installing side panel ( 107).
9
111
z
Maintenance
