BMW C evolution - Fuses

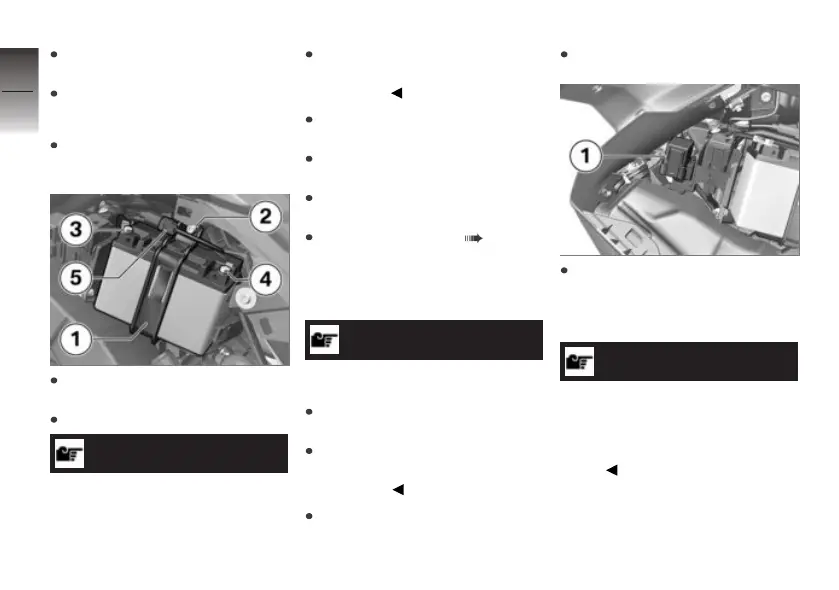

Remove screw 4 and take off
the retaining bracket 5.
Remove the 12 V battery from
the battery holder.
Slip the 12 V battery into the
battery holder.
Fit retaining bracket 1 on the
12 V battery.
Install screw 2.
ATTENTION
Battery not connected in ac-
cordance with correct pro-
cedure
Risk of short-circuit
Always proceed in compli-
ance with specified installation
sequence.
Hold the positive battery cable
in position and install screw 3.
Hold the negative battery cable
in position and install screw 4.
Connect plug 5 for the right-
hand turn indicator.
Installing side panel ( 107).
Fuses
Removing fuse
ATTENTION
Jumpering of blown fuses
Risk of short-circuit and fire
Never attempt to jumper a
blown fuse.
Always replace a defective fuse
with a new fuse of the same
amperage.
Switch off operational readi-
ness.
Remove the right side panel.
Open fuse box 1 by pushing
the latches apart, lift off the
fuse cover and remove the
blown fuse.
NOTICE
If fuses blow frequently have the
electric circuits checked by a
specialist workshop, preferably
an authorised BMW Motorrad
dealer.
9
110
z Maintenance
