The following graphic shows the surface load on a standard connecting rod without the
formed hole. Due to combustion pressure, the force exerted by the piston via the wrist
pin is mainly transmitted to the edges of the rod bushing.

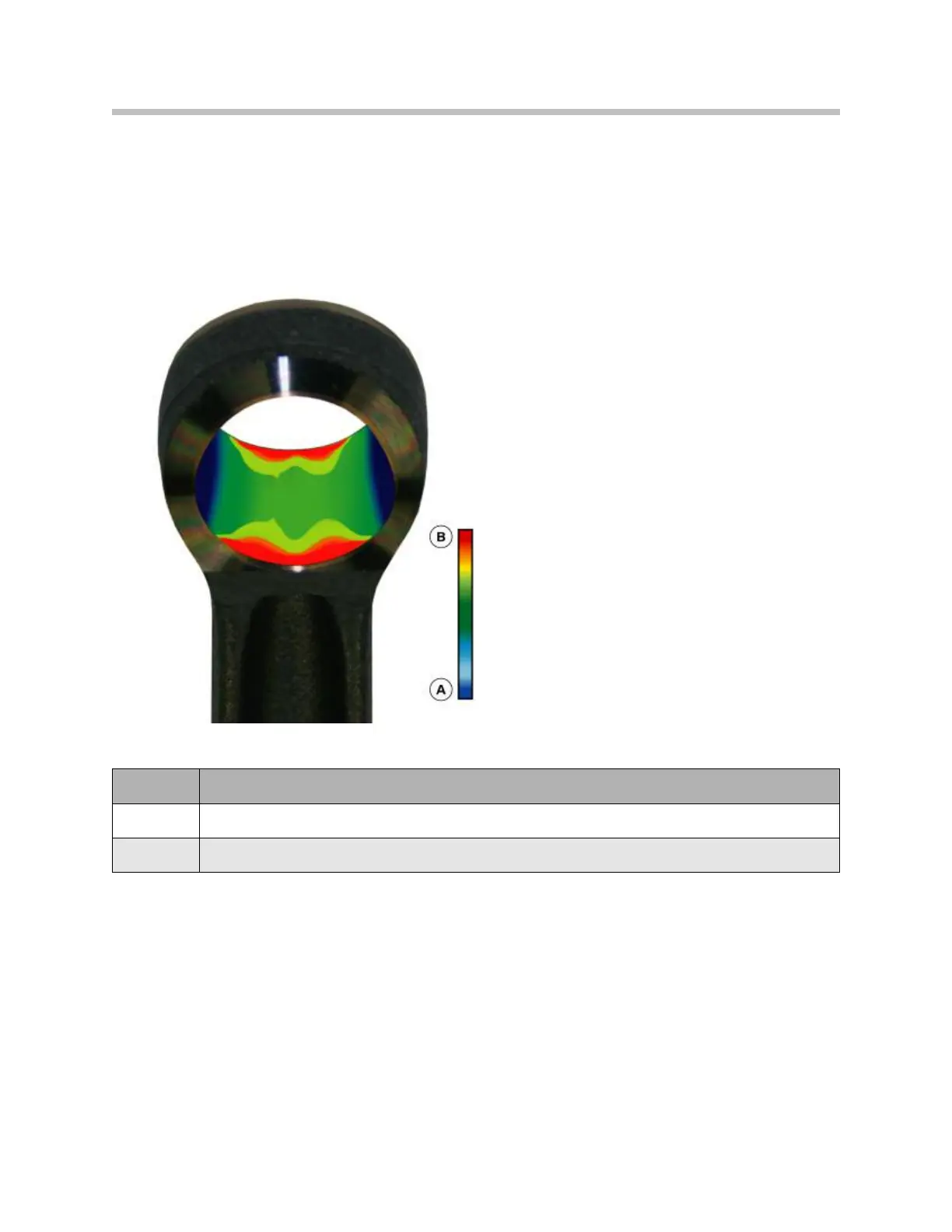

N54, connecting rod small end without formed hole
Index Explanation
A
Low surface load
B
High surface load
