BMW N55 - Oil Supply

27
N55 Engine
Oil Supply
The following graphics show an overview of the oil circuit of the N55. Compared to the
N54 engine, there are considerably fewer oil ducts in the cylinder head. This is mainly due
to the use of the new VANOS solenoid valves.

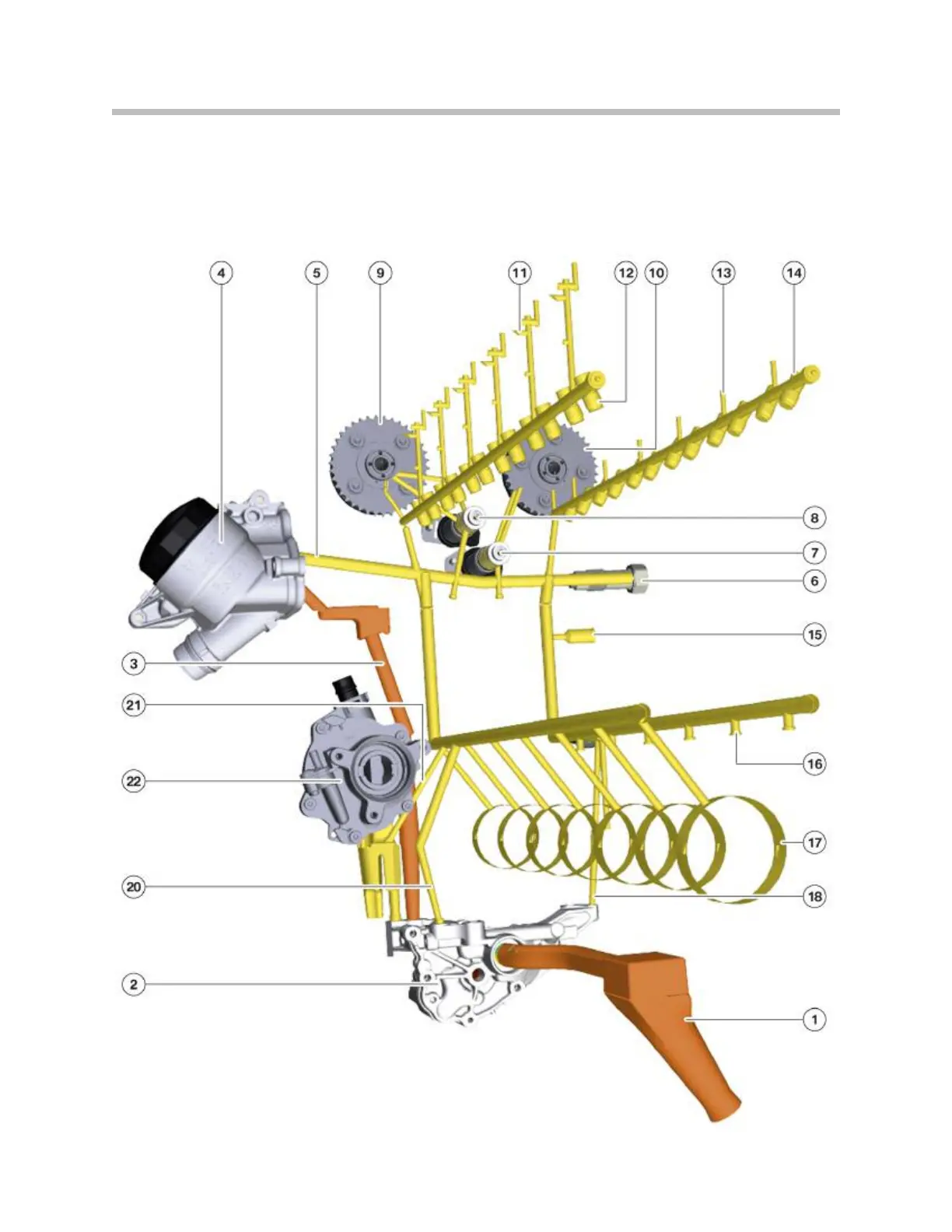

N55, oil passages rear view
