N55 Engine
Valvetrain
The following graphic shows the design of the cylinder head on the N55 engine with
Valvetronic III and direct fuel injection.

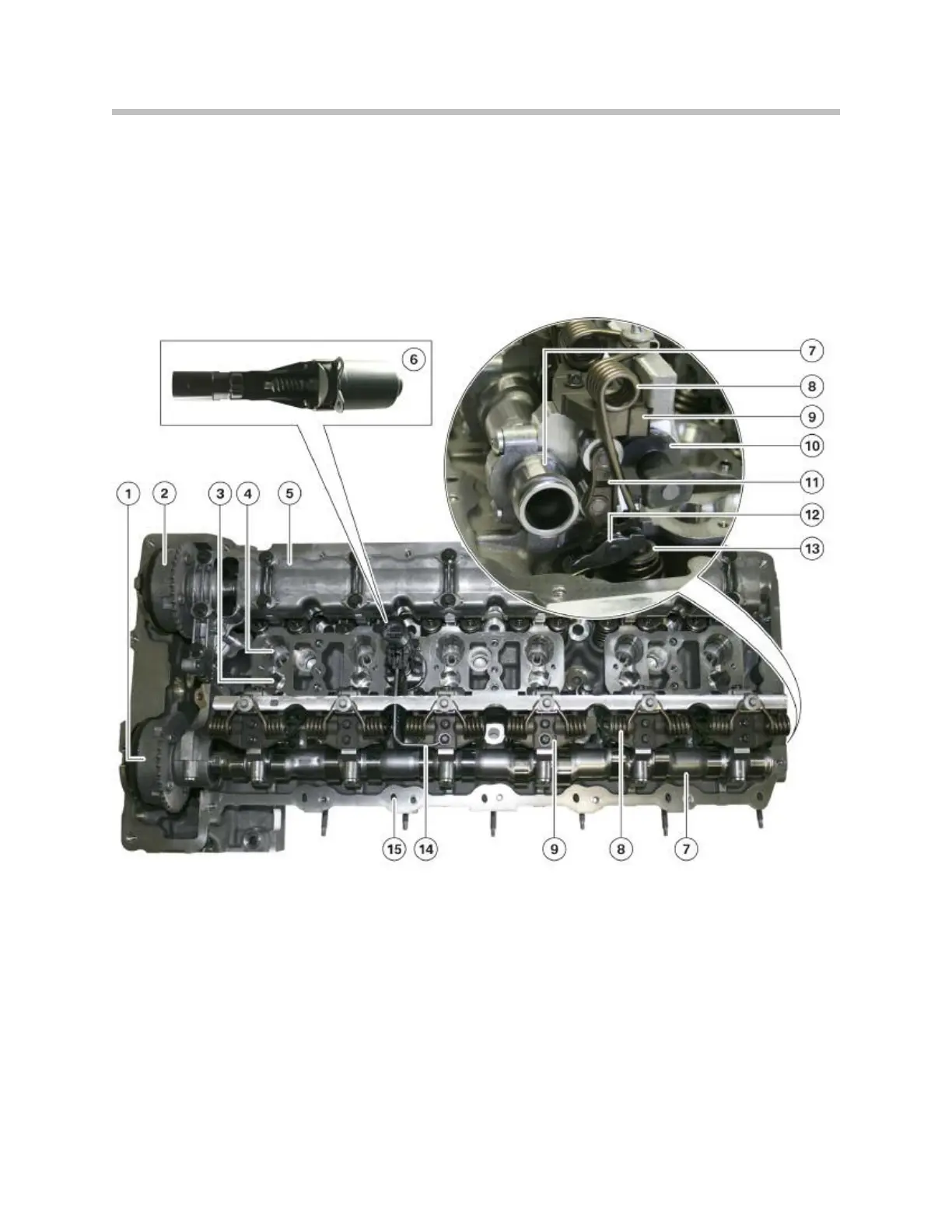

N55, overview of valvetrain
Note: Notice the hollow, lightweight design of the camshafts (7)
and the blow-by passages leading into the intake ports (15).
