New Generation N62 Engine Chapter 3 P.46
Course Contents/Background Material
© BMW AG, Service Training
VANOS oil supply

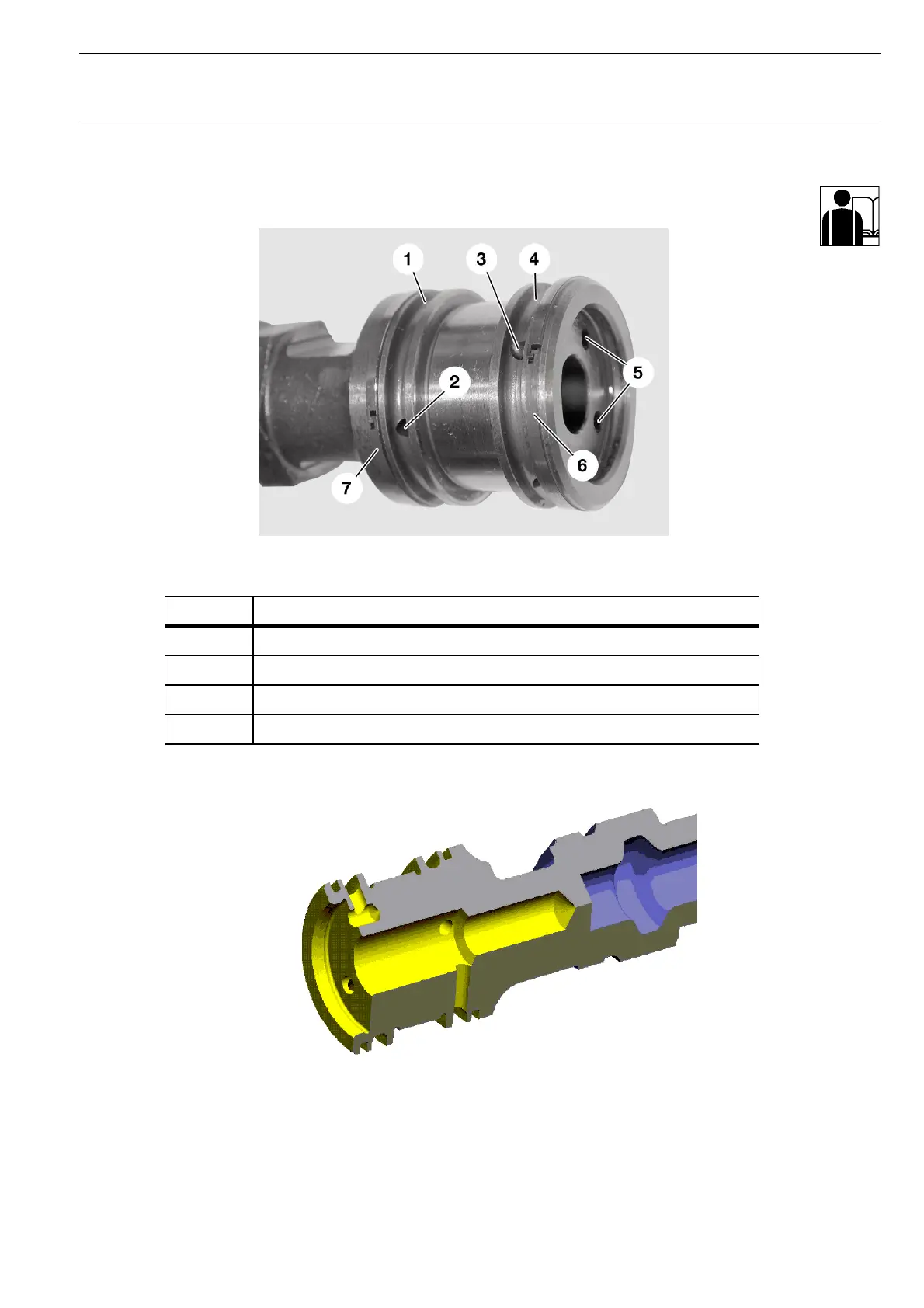

Fig. 34: Camshaft with VANOS oil supply holes
Fig. 35: Cross section of a camshaft
Index Description
1+2 Rear oil duct with four holes
3+4 Front oil duct with four holes
5 Front oil duct outlets
6+7 Hook sealing washer
KT-7729
KT-7761
