VANOS position sensor
The position sensors are mounted independently of the VANOS
unit on the opposite side of the camshaft.
The sensor wheels are made from a sintered material.

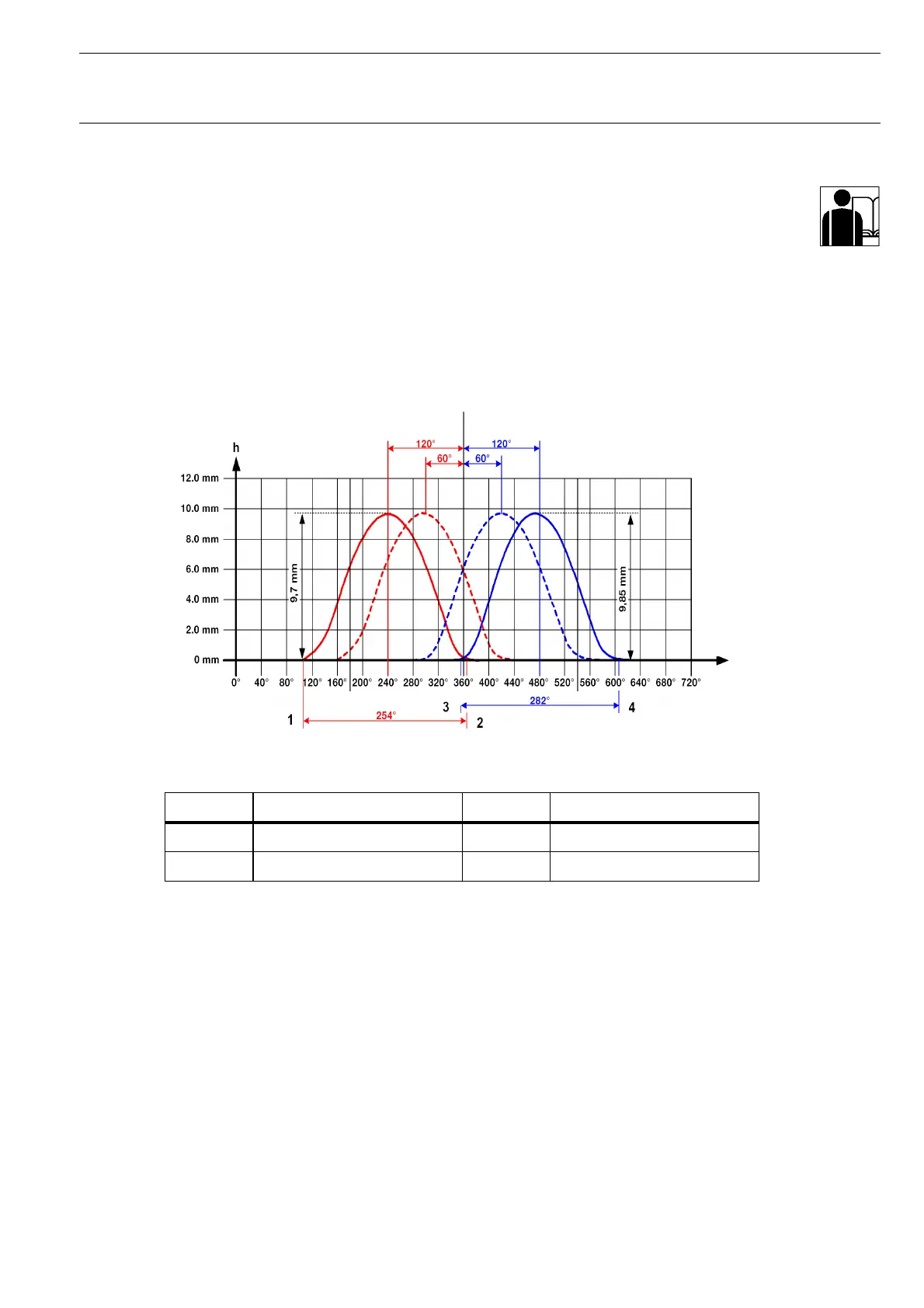

The following diagram shows the VANOS unit camshaft
adjustment possibilities.
Fig. 36: N62 valve timing diagram
Index Description Index Description
1 Outlet open 3 Intake open
2 Outlet closed 4 Intake closed
TDC
TDC
TDC
BDCBDC
Crankshaft
KT-7635
