Ancillary Components and Drive Belts
Drive Belts

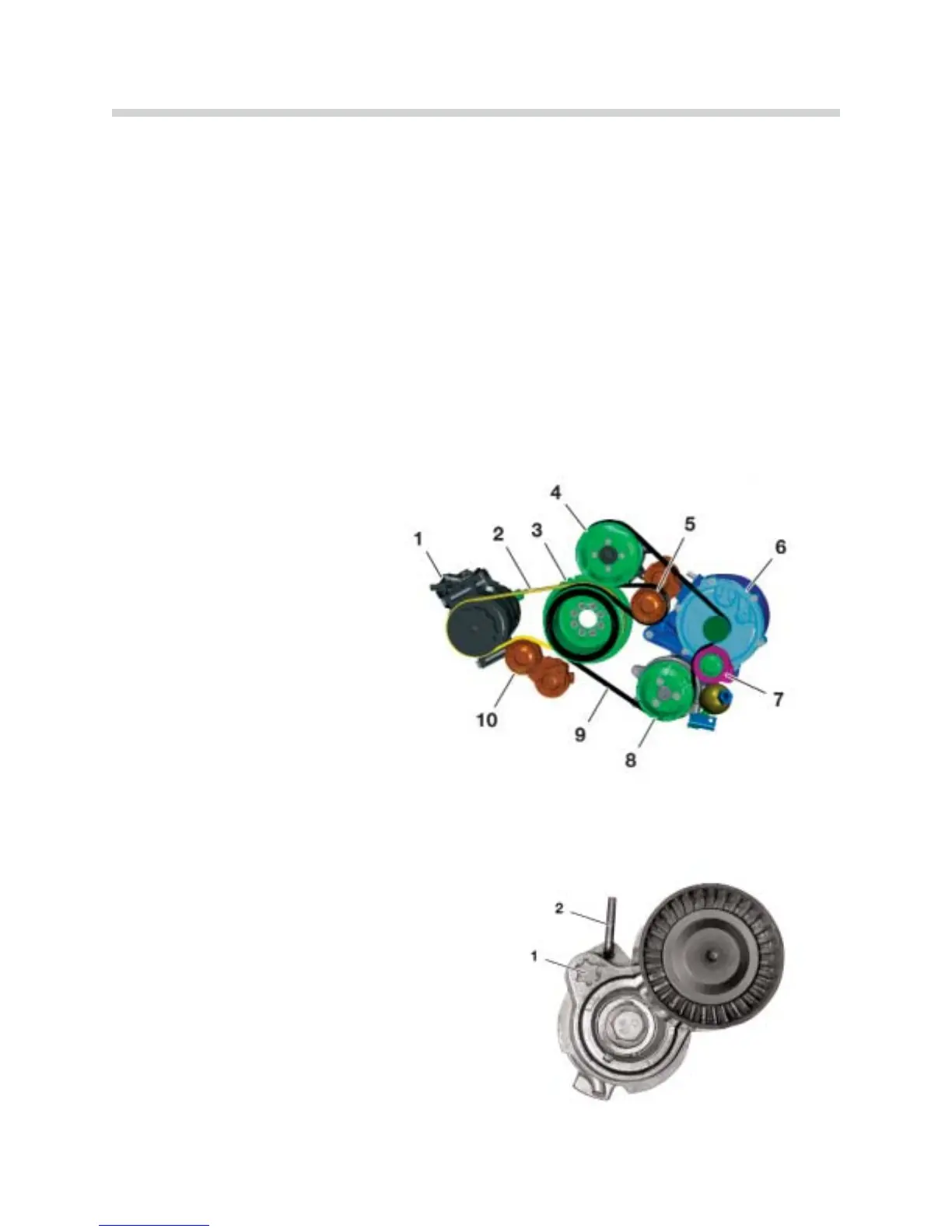

The belt drive has two components and is subdivided into the main and A/C drives. Both
belts are driven by the crankshaft pulley.
A 4 rib belt is used to drive the air conditioning compressor and a 6 rib belt is used for the
main drive. Each drive belt has a maintenance free tensioning unit with tensioning pulley
and torsioner.
TToo rreemmoovvee tthhee ddrriivvee bbeelltt::
The tensioning pulley is pushed back using a
Torx tool in the recess provided (1) and fixed in
this position by inserting a locking pin as shown
(2).
16
N62 Engine
42-02-15
Ancillary Components and
Drive Belts
1. Air Conditioning Compressor
2. 4 Rib A/C Drive Belt
3. Crankshaft Pulley
4. Water Pump
5. Tensioning Unit Main Drive Belt
6. Alternator
7. Deflection Pulley
8. Power Steering Pump
9. 6 Rib Drive Belt
10. Tensioner Unit A/C Drive Belt
42-02-16
